Waveform: | Sine,square,pulse; | Package Size: | 25cm * 21cm * 10cm; |
Payment Terms: | L/C,T/T,Western Union,MoneyGram; | Weight: | 1000g; |
Model Number: | FY6800-30M; | Power: | AC100V~240V; |
Package Weight: | 1kg; | Supply Ability: | 10000 Set/Sets per Month; |
Packaging Detail: | 1 sets/box; | Port: | Qingdao; |
Place of Origin: | Henan China; | DIMENSIONS: | 200mm * 190mm * 90mm; |
Buzzer: | Can be turned on/off by setting; | Operation: | Buttons and knob continuously; |
Technic: | SMD, LSI, Reliable and durable; | Brand Name: | FY; |

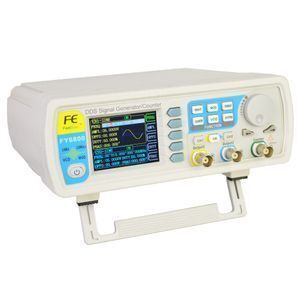

Product name: | DDS Signal Generator; |

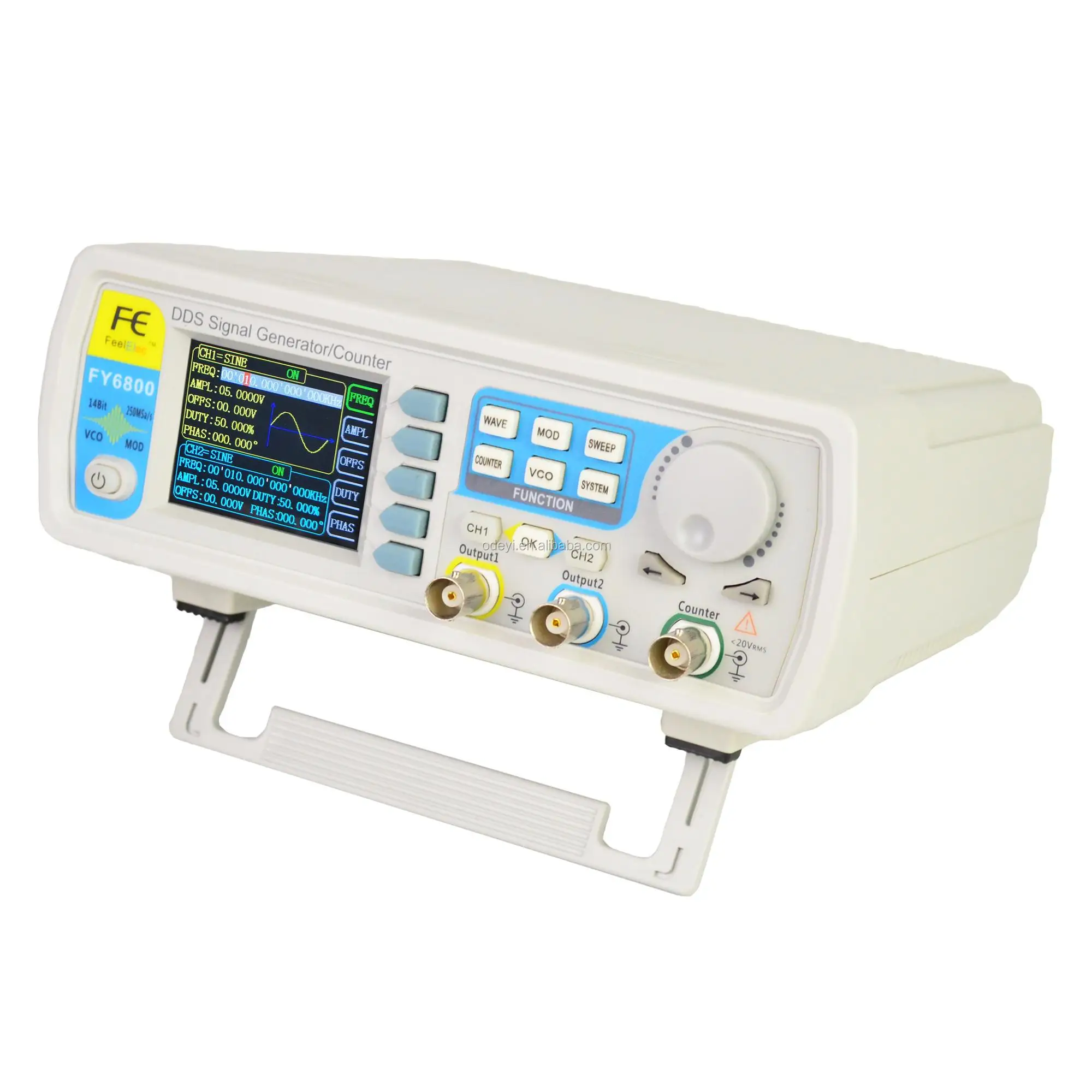

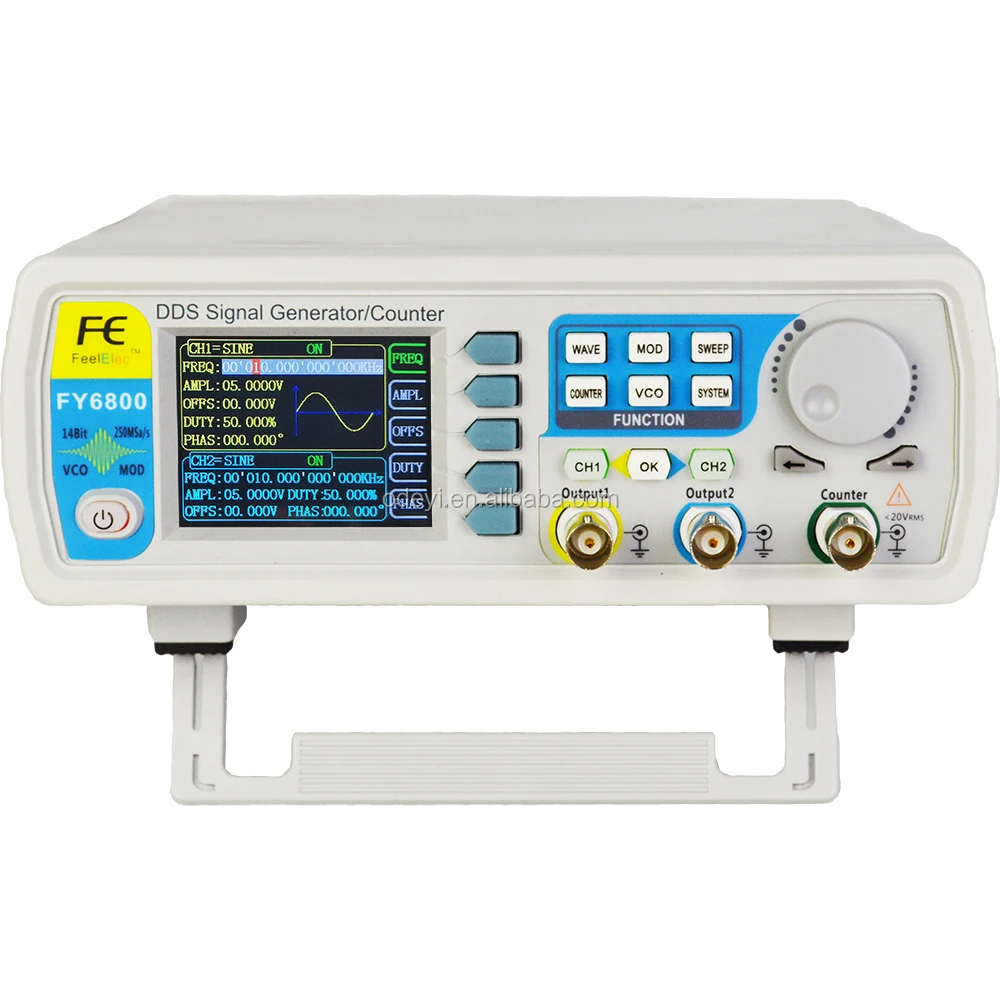

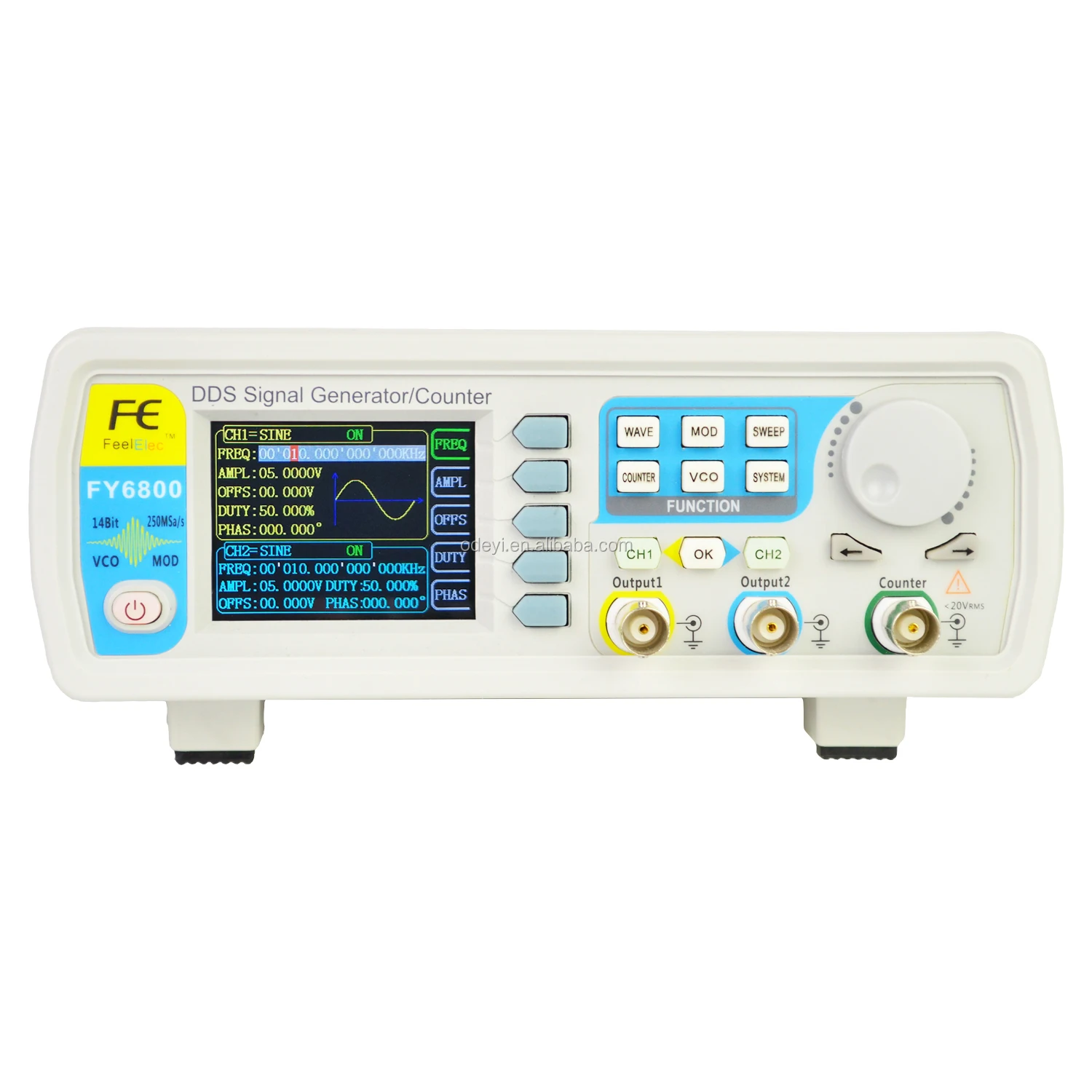

FY6800 series Dual-channel Function / Arbitrary waveform generator is a set of Function Signal Generator, Arbitrary Waveform Generator, Pulse Generator, Analog / Digital modulator, VCO, Sweep, Counters and Frequency Meter and other functions in a high Performance, cost-effective, multi-function signal generator. Abundant shortcut keys and graphical user interface simplifies every operation. Users do not have to spend a lot of time to learn and familiar with the operation of the instrument, you can be skilled use. For education, research and development, production, testing, maintenance and other industries to provide a new choice.
The instrument adopt the Direct Digital Synthesizer (DDS) technology and provide stable, precise, pure and low distortion signals. Surface mounting technology improves interference immunity and operational life span. Due to communications with extensive users and fully understanding to users’ practice, we regard users’ demand as the most important factor in R&D. Continuously innovation and listening users’ suggestions, we try to offer customers better products with higher cost performance.

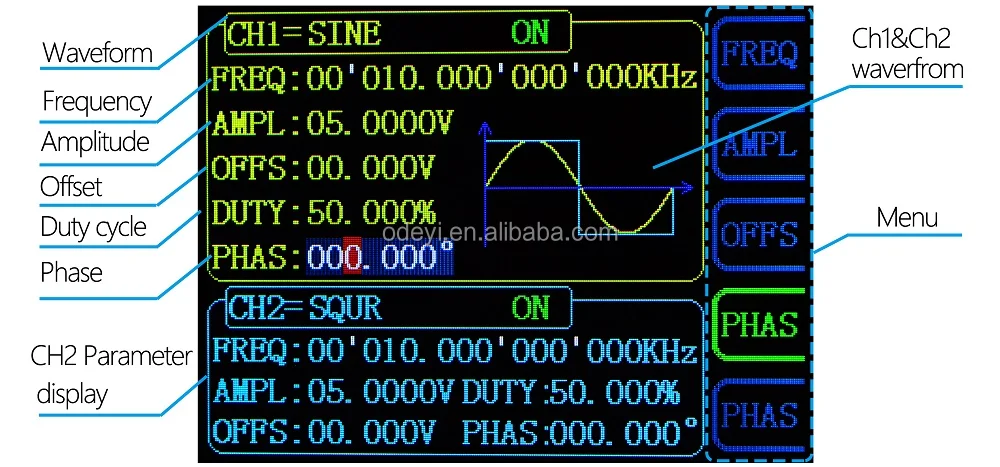

Display | Type | 2.4 inch, TFT Color Display. | ||
Save & Load | Amount | 20 | ||
| Position | 01 to 20 (01 for start default value) | ||
Interface | Type | USB to Serial interface | ||

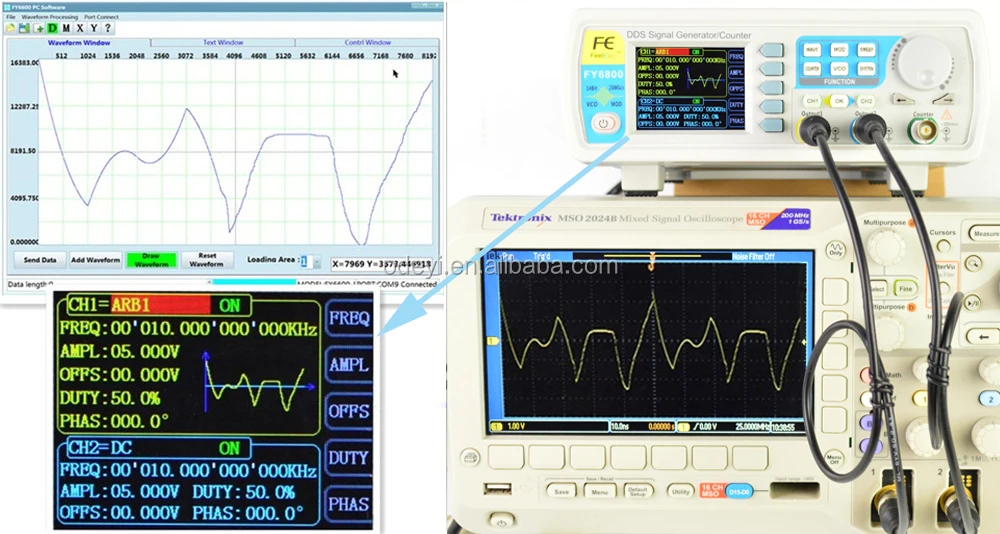

| Protocol | Command line mode, providing communication protocols. | ||
| Communicating Speed | 115200bps | ||
Power | Voltage Range | AC100V~240V | ||
Technic | SMD, LSI, Reliable and durable | |||
Buzzer | Can be turned on/off by setting. | |||
Operation | Buttons and knob continuously. | |||
Environment | Temp.: 0~40℃, Humidity: less than 80% | |||

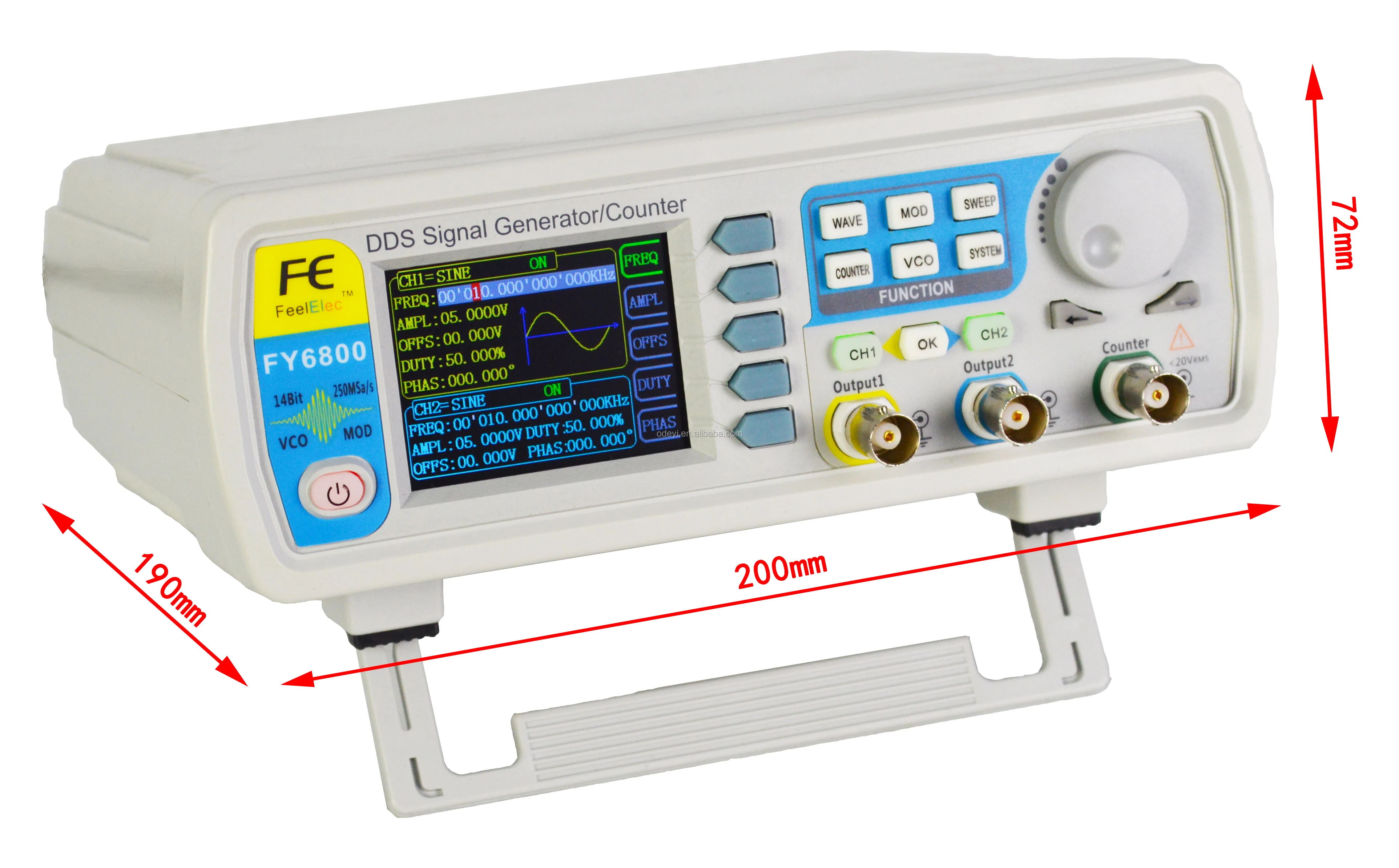

Size | 200mm * 190mm * 90mm (L * W * H) | |||
Weight | 1000g | |||
Package Size | 25cm * 21cm * 10cm (L * W * H) | |||
Package Weight | 1kg(Main engine, accessories and packing materials) |
