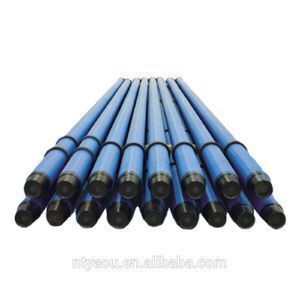

Integral Heavy Weight Drill Pipe with high quality

Supplier: Rugao Yaou Import Amd Export Trade Co.,Ltd
Region: Jiangsu, China
Contact: Mr aihong Xue
Price: $2000.00 / >=5 units
Min. Order: 5 units

Click here to contact

Product details

Condition:	New;	Payment Terms:	L/C,T/T,Western Union;
Type:	Drilling Pipe;	Port:	shanghai;
Supply Ability:	1000 Set/Sets per Day;	After-sales Service Provided:	Engineers available to service machinery overseas;
Brand Name:	YAOU;	Packaging Detail:	standard packages;
Place of Origin:	Jiangsu, China (Mainland);

Size(in)	O.D. (in)	I.D. (in)	Tool Joint O.D. (in)	Tool Joint I.D. (in)	Connection	Max.elevator diameter (in)	Central upset dia. (in)	Min.drift dia.size(in)
3 1/2	3 1/2	2 1/4	4 3/4 (4 7/8, 5)	2 1/4	NC38	3 7/8	4	2
		2 1/16		2 1/16				1 13/16
4	4	2 1/2	5 1/4	2 1/2	NC40	4 3/16	4 1/2	2 1/4
		2 9/16		2 9/16				2 5/16
4 1/2	4 1/2	2 11/16	6 1/4	2 11/16	NC46	4 11/16	5	2 7/16
		2 3/4		2 3/4				2 1/2
		2 13/16		2 13/16				2 9/16
5	5	3	6 5/8	3	NC50	5 1/8	5 1/2	2 3/4
5 1/2	5 1/2	3 1/4	7 (7 1/4, 7 1/2)	3 1/4	5 1/2 FH	5 11/16	6	3
		3 3/8		3 3/8				3 1/8
		3 7/8		3 7/8				3 5/8
		4		4				3 3/4
6 5/8	6 5/8	4	8 (8 1/4, 8 1/2)	4	6 5/8 FH	6 15/16	7 1/8	3 3/4
		4 1/2		4 1/2				4 1/4
		5		5				4 3/4

Our company's drill pipes are in accordance with API 5D, API SPEC 7 Standards. The
material of drill pipe body are chosen by the 1&3 group of API 5D.(Group 1-Grade E75;
Group 3-Grade X95, G105, S135).
The choice of tool joints is according to the customers’requirements, and the tool joints
are up to API SPEC7 Standards.
