API B Series Pumping Units,pump unit pump with top quality

Supplier: Rugao Yaou Import Amd Export Trade Co.,Ltd
Region: Jiangsu, China
Contact: Mr aihong Xue
Price: $20000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,T/T;	Place of Origin:	Jiangsu China;
Packaging Detail:	Standard export packing.;	Production Capacity:	100%;
Certification:	API 11E;	Warranty:	1 Year;
Dimension(LWH):	Irregular;	Supply Ability:	15 Set/Sets per Quarter;
Weight:	Machine;	Delivery Detail:	15day;
After-sales Service Provided:	Engineers available to service machinery overseas;	Voltage:	380V/220V;
Power(W):	Electric;	Model Number:	API B;
Condition:	New;	Port:	China;
Features:	API 11E Spe;	Condition:	New;

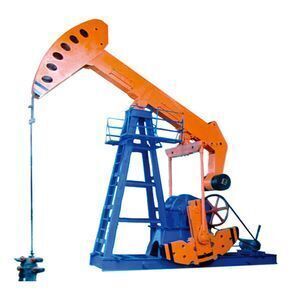

Downward Barbell Pumping Units

The downward barbell is used to balance and lessen down the peak torque.
The position and weight of the downward barbell can be reasonably set according todifferent well conditions.
This type of pumping unit has all advantages of conventional ones, has good balance effect and reliable performance.
Compared to the conventional beam pumping unit, it can save energy by more than 20%.

Main technical parameters

Model	Structure Capacity kN	Reducer Rating kN.m	Stroke Frequency min-1	Stroke Length m	Motor Power kW	Unit Weight t
PCYJ3-1.8-7HY	30	7	5,7,10	1.8,1.5,1.2	7.5	5.2
PCYJ4-1.8-9HY	40	9	5,7,10	1.8,1.5,1.2	7.5	5.7
PCYJ4-1.8-13HY	40	13	5,6.5,10	1.8,1.5,1.2	12	7.1
PCYJ5-1.8-18HY	50	18	5,6.5,10	1.8,1.5,1.2	16	7.5
PCYJ6-2.5-26HF	60	26	4,6,8	2.5,2.1,1.8	18.5	14.5
PCYJ8-3-26HF	80	26	6,8,10	3,2.5,2	22	16
PCYJ10-3-37HF	100	37	6,9,12	3,2.5,2	30	18
