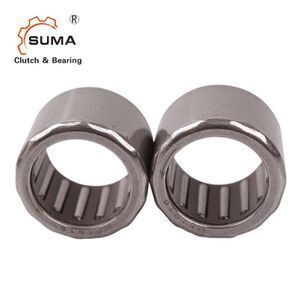

HFL3530 Printing Machinery Bearing Needle Roller Bearing HFL 3530
-
Supplier: Changzhou Suma Precision Machinery Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms Ellen zhang -
Price: $0.50 /piece -
Min. Order: 1 piece
| Delivery Detail: | 2-3Days for bearing hfl 3530; | Application: | Light industry, printing, packing machinery; |
| Number of Row: | Double Row; | Port: | Shanghai ; Ningbo for bearing hfl 3530; |
| Shaft Dia.: | 30mm; | Place of Origin: | Jiangsu China; |
| Model Number: | HFL 3530; | Product Name: | bearing hfl 3530; |
| Brand Name: | SUMA of needle clutch bearing; | Seals Type: | non-sealed; |
| Packaging Detail: | Roll pack + Carton box + Pallet for bearing hfl 3530; | Stock: | Rich; |
| Supply Ability: | 500000 Piece/Pieces per Month bearing hfl 3530; | Material: | ST14; |
| Port: | Shanghai ; Ningbo; | Type: | Needle; |
| Package: | single box or as your requirements; | Precision Rating: | P0 P6 P5 P4 P2; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal of bearing hfl 3530; | Weight: | 51g; |
| Bore Size: | 30 mm; | Delivery: | in stocks; |
| OEM: | Accept; | Outside Diameter: | 37 mm; |
HFL3530 Printing Machinery Bearing Needle Roller Bearing HFL 3530
Structure of needle clutch bearing :
| Metric size | Inch size | Marks |
| HFL | FCB | steel spring |
| HFL..KF | RCB | plastic spring |
| HFL..R | steel spring and knurls on outer ring | |
| HFL..KFR | plastic spring and knurls on outer ring |
Speciification of needle clutch bearing
Product name | bearing needle roller |
Model | HFL3530 |
Material | ST14 |
Torque capacity | 121Nm |
Inner diameter | 35mm |
Outer diameter | 42mm |
Height | 30mm |
Weight | 58g |
Application | Light industry, truckle, printing, textile, packing machinery |
Package | Roll + Carton Box + Wooden Pallet |
Payment terms | TT. L/C, D/A,D/P,Western Union |
Delivery time | 2-4 days for the sample, 7 days for big order |
Catalogue of needle clutch bearing for your choice
| Shaft Dia. | Clutch Designation | Mass | Borndary Dimensions | Torque | Limiting Speed | Basic Load Ratings | |||||
| Fw | D | C | Shaft Rotating | Rotatng Outer Ring | C | Co | |||||
| Min-1 | Min-1 | KN | |||||||||
| mm | Plastic Springs | Steel Springs | g | mm | Nm | rpm | |||||
| 3 | HFL0308KF | -- | 3 | 3 | 3.6 | 8 | 1 | -- | -- | -- | -- |
| 4 | HFL0408KF | -- | 3.5 | 4 | 8 | 8 | 1.5 | -- | -- | -- | -- |
| 6 | HFL0615KF | HFK0615 | 4 | 6 | 10 | 15 | 1.76 | 23000 | 13000 | -- | -- |
| HFL0615KFR | HFL0615R | 4 | 6 | 10 | 15 | 0.5 | 23000 | 13000 | -- | -- | |
| -- | HFL061012K | 5 | 6 | 10 | 12 | -- | 21000 | 12000 | -- | -- | |
| 8 | -- | HFL081212K | 6 | 8 | 12 | 12 | -- | 20000 | 12000 | -- | -- |
| -- | HFL081412K | 7 | 8 | 14 | 12 | -- | 19000 | 12000 | -- | -- | |
| HFL0822KF | HFL0822 | 7 | 8 | 12 | 22 | 3.15 | 17000 | 12000 | 4.05 | 4.15 | |
| HFL0822KFR | HFL0822R | 7 | 8 | 12 | 22 | 1 | 17000 | 12000 | -- | -- | |
| 10 | HFL1022KF | HFL1022 | 8 | 10 | 14 | 22 | 5.3 | 14000 | 11000 | 4.3 | 4.65 |
| HFL1022KFR | HFL1022R | 8 | 10 | 14 | 22 | 1.5 | 14000 | 11000 | -- | -- | |
| 12 | -- | HFL1226 | 18 | 12 | 18 | 26 | 12.2 | 11000 | 8000 | 6.3 | 6.5 |
| 14 | -- | HFL1426 | 20 | 14 | 20 | 26 | 17.3 | 9500 | 8000 | 7.1 | 7.7 |
| 16 | -- | HFL1626 | 22 | 16 | 22 | 26 | 20.5 | 8500 | 7500 | 7.7 | 9 |
| 18 | -- | HFL1826 | 25 | 18 | 24 | 26 | 24.1 | 7500 | 7500 | 8.3 | 10.3 |
| 20 | -- | HFL2026 | 27 | 20 | 26 | 26 | 28.5 | 7000 | 6500 | 8.9 | 11.5 |
| 25 | -- | HFL2530 | 44 | 25 | 32 | 30 | 66 | 5500 | 5500 | 10.9 | 14.1 |
| 30 | -- | HFL3030 | 51 | 30 | 37 | 30 | 90 | 4500 | 4500 | 12.6 | 17.6 |
| 35 | -- | HFL3530 | 58 | 35 | 42 | 30 | 121 | 3900 | 3900 | 13 | 19.3 |
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.

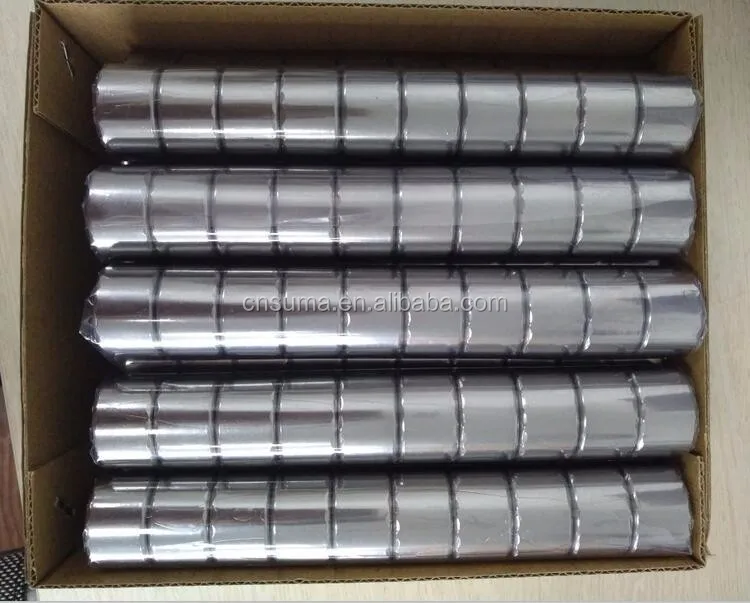

Q: How do you pack the bearing hfl 3530 ?
A: Usually bearing hfl 3530 are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of bearing hfl 3530 from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver bearing hfl 3530 in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
Any needs, pls feel free to contact me at any time !
-
