thermoplastic road marking equipment for sale

Supplier: Jiangsu Daoying Highway Engineering Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Mr Jack wang
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Usage:	Traffic Line;	Line Types:	Thermoplastic Line;
Weight:	135kg;	Paint Tank Capacity:	100kgs;
Marking thickness:	1.5-2.5mm;	Performance:	Excellent;
Brand Name:	Road Win;	Place of Origin:	Jiangsu China;
Product Name:	thermoplastic road marking equipment for sale;	Dimension(LWH):	13208201000mm;
Supply Ability:	100 Set/Sets per Month thermoplastic road marking equipment for sale output:100set;	Certification:	ISO9001;
Warranty:	One Year;	Type:	Hot Melt;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	After-sales Service Provided:	Engineers available to service machinery overseas;
Packaging Detail:	wooden pack,also can be packed according to clients' requirement;	Application:	Nation Provincial;
Condition:	New;	Port:	China Main port;
Delivery Detail:	Shipped in 5 days after payment;	Optional system:	Booster;
Model Number:	RW-320;	Features:	Easy-operated;
Power(W):	Suggest 15kg Gas Tank;	Mark width:	100-450 ( Adjustable);

Product Description

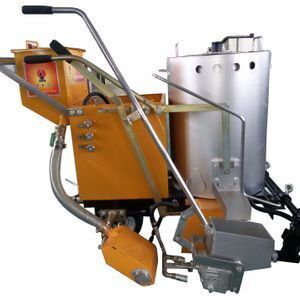

Product Application of thermoplastic road marking equipment for sale

thermoplastic road marking equipment for sale can mark different kinds of road limitation markings which is widely used in the field of city road,highway,expressway,parking lot,runway,square and so on.
It has the advantages of fast,high efficiency,accurate which makes a huge contribution on the urban planing and road construction,furthermore it can save time and money of road construction.

thermoplastic road marking equipment for sale is the key equipment used in hot met road line marking construction,it need to be worked with hot melt paint preheater.

The marking hopper of this machine is made of high-precision cast iron,which can make the marking line orderliness,uniform thickness and more beautiful.

The grounded knife of marking hopper can be applied to different kinds of road.

Glass beads automatic spreader equipped with buffer device of speed regulation which has advantage of high efficiency,high quality,easy to operate and convenient for maintenance.

Technical Parameter of thermoplastic road marking equipment for sale
paint tank	double layer stainless steel,capacity of 100kg,equipped with inserted dismountable manumotive stirring device.
capacity of micor glass beads storing box	10kg
micro glass beads dispenser	dispensing automatically,with speed governing shift device.
marking hopper	made of high-precision ultrathin material, scraper structure,standard configuration:150mm
grounded knife	made of hard alloy,the range of thickness of road line can be adjusted from 1mm to 2.5mm with eccentric locking collar.
rubber tire	aluminium alloy wheel hub,heat-resistance rubber,rear wheel equipped with localiser to make the machine walk along the straight line
heating method	liquefied petroleum gas
width of index line	50/80/100/120/150/180/200/230/250/300/400/450mm, you can choose different specification of marking hopper to fit for the situation of construction.
size	1320×820×1000mm
net weight	135kg

Main Features of thermoplastic road marking equipment for sale

1) Light,reasonable and compact structure,attractive in appearance.

2) Adjustable handlebar design,operator can adjust it according to his requirement.

3) It equipped with a device which can spread glass beads automatically.

4) The device which used to spread glass beads has speeder that equipped with two gears,you can adjust it according to your requirement.

5) Detachable Heat Preservation,reasonable designed mixer shaft which can solve the problem of paint remained in mixing tank.

6)Adjustable pointer can improve work efficiency.

7)Marking hopper is made of high-precision steel plate,which has advantages of high temperature resistance,anti-corrosion,anti-deformation,rapid heating and so on.

8)The wheel is made of cast iron and imported rubber,which has the advantage of handiness,burliness and durable.

Certifications

Detailed Images

Machine Parts

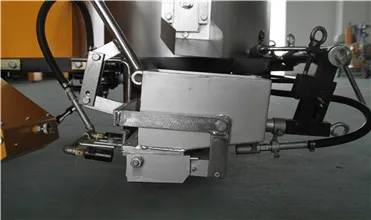

Name: Marking hopper

Brand: Road Win

Original: China

made of high precision steel plate with the advantages

of high temperature resistance,corrosionresistance, deformation resistance and rapid heating,which

makes the index line orderliness,uniform thickness

and beautiful.

Machine Parts

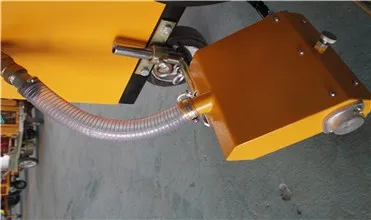

Name: micro glass beads dispenser
Brand: Road Win
Original: China
dispensing automatically,with speed governing shift device.

Machine Parts

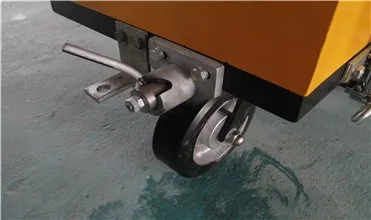

Name: rubber tire
Brand: Road Win
Original: China
aluminium alloy wheel hub,heat-resistance rubber,rear wheel equipped with localiser to make the machine walk along the rectilinear direction.

Machine Parts

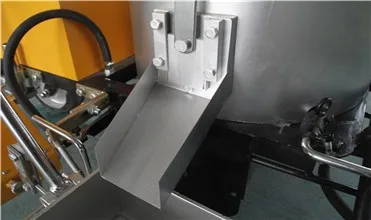

Name: discharge hole
Brand: Road Win
Original: China
it is very convenient for discharging.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

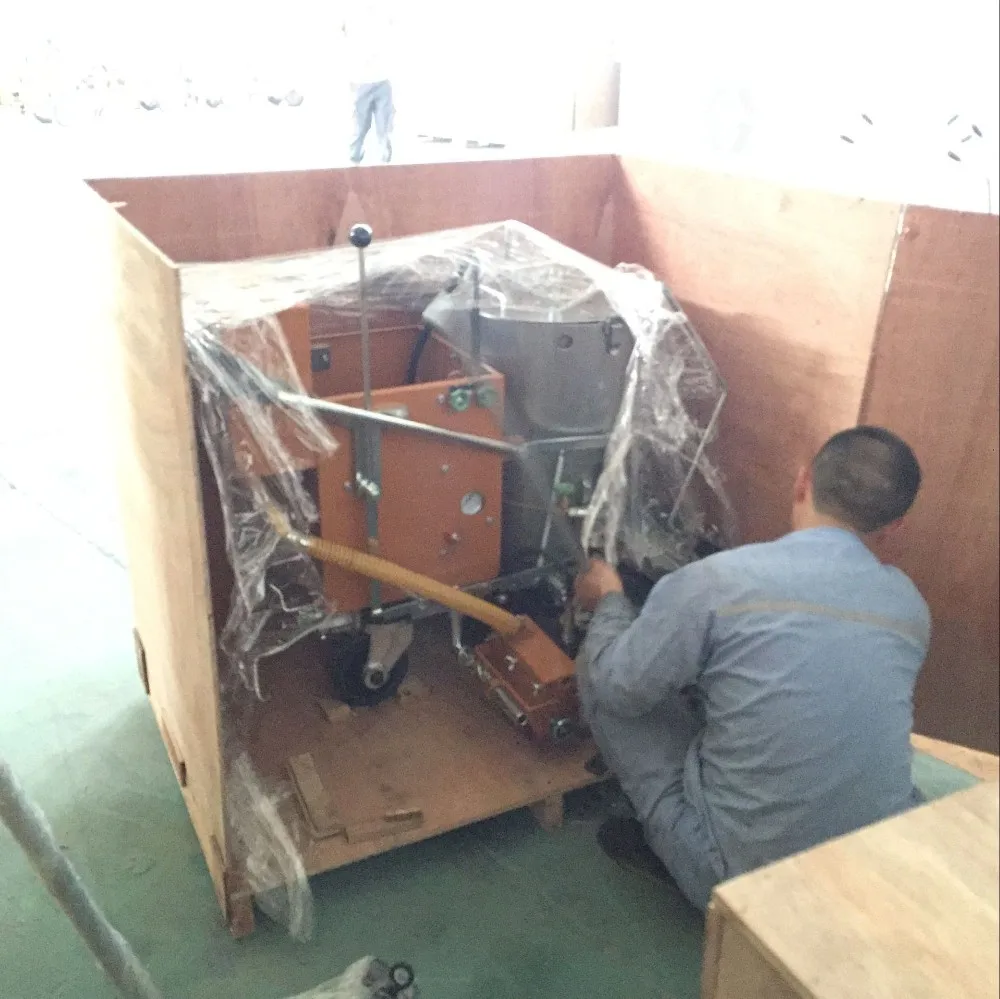

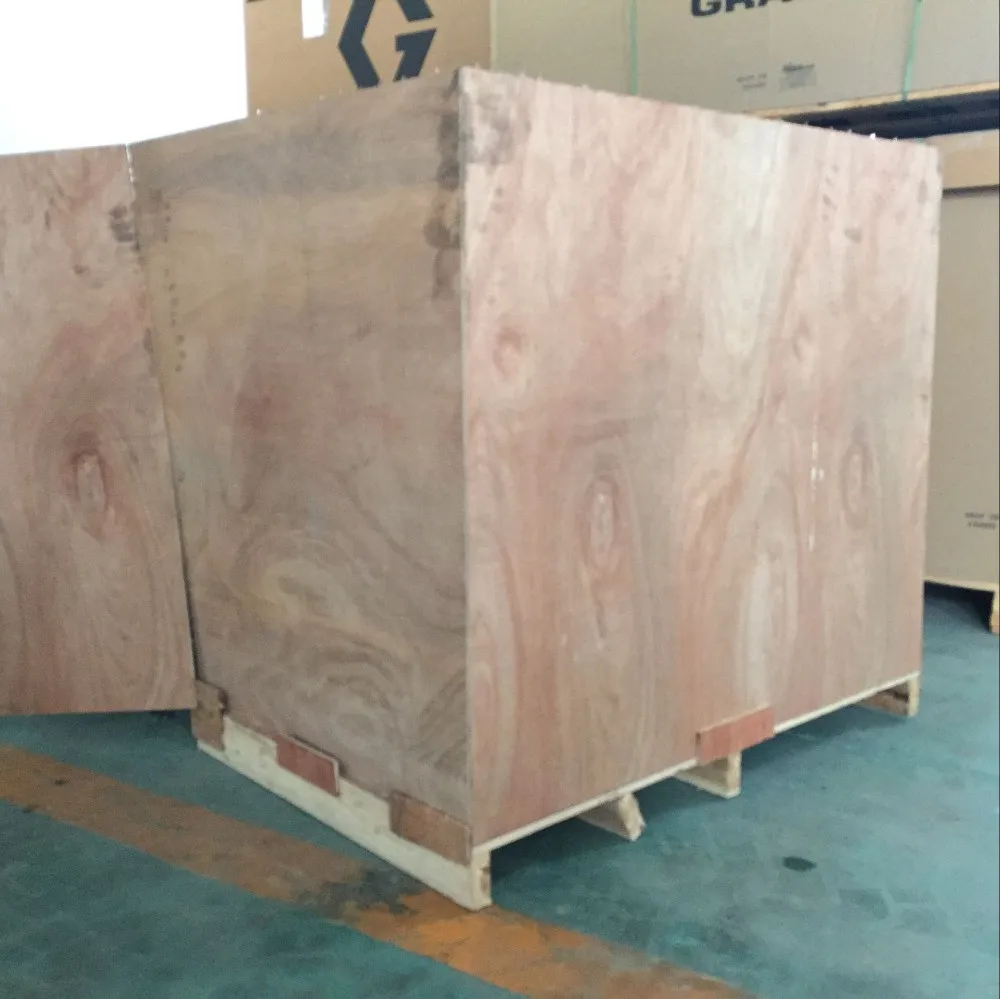

Packaging
Size	1320 (L) * 820 (W) * 1000 (H)
Weight	135KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tighter,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	1320 (L) * 820 (W) * 1000 (H)
Weight	135KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tighter,we will use pe film for packing or pack it according to customers special request.
