Qingdao Precision Cheap Price Auto Wood cutting Sliding Tabl

Product details
Selling Units:Single item;Tilting saw blade:45 degree;
Weight:1100kg;Delivery Detail:0 days after payment;
speed of main saw blade:4500-6000rpm/min;Style:Horizontal;
Height cuting at 90 degree:90mm;Voltage:220V;
Main motor power:5.5kw;Condition:New;
Single gross weight:1,100 KG;Power(W):5.5kw;
Dimension(L*W*H):3250*3150*900mm;Use:Woodworking;
Brand Name:WFSEN;Product name:Sliding Table Saw Machine;
After-sales Service Provided:Online support;Certification:CE ISO;
Warranty:2 year;Scoring motor power:1.1kw;
Single package size:220X110X110 cm;Main saw blade diameter:300mm;
Scoring saw blade diamete:120mm;Height cuting at 45 degree:60mm;
Application:furniture;Usage:wood cutting;
Speed of scoring saw blade:7000-8000rpm/min;Place of Origin:Shandong China (Mainland);

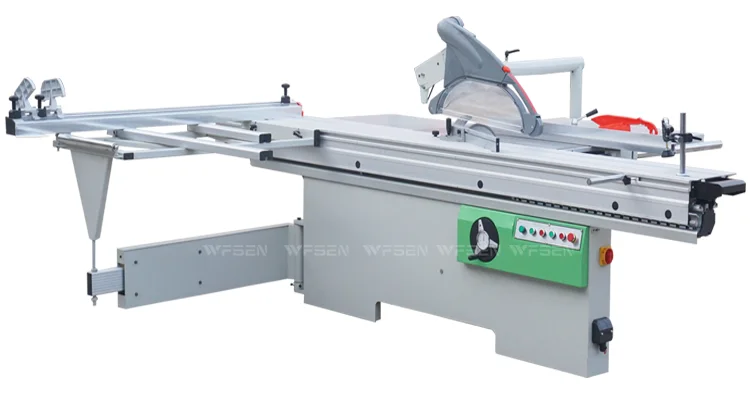

Qingdao Precision Cheap Price Auto Wood cutting Sliding Table Panel Saw Machine For Woodworking

Product Description






 Europe technology MJ6232TD precision panel saw





———  Model Functions



FunctionMJ6232TDMJ6232TEMJ6232TFMJ6232TGMJ6232TS
 45 degree
 3200mm
 Main saw angle titl digtal display
 Main saw angle titlManualManualManualManual Auto
 Main saw up and downManualAutoManualAutoAuto

  wood cutting sliding table panel saw machinery





———  Technical Parameter



+
 Max cutting length 2800 / 3000 / 3200 / 3600 / 3800mm
 Max cutting width 1250mm        Sliding table width 380mm
 Main saw blade diameter 300mm  Tilting saw blade 45 degree
 Scoring saw blade diameter 120mm  Height of cut at 45° 60mm
 Main saw spindle speed 4500-600rpm Height of cut at 90° 90mm
 Scoring saw spindle speed 7000-8000rpm  Main motor 5.5kw
 Main spindle diameter 30mm Scoring motor 1.1kw
 Scoring spindel diameter 20mm Gross weight 800-1200kg
Overall diameter 2850 / 3050 / 3250 / 3650 / 3850 x 3150 x 900mm





———  Features show









———  Parts show

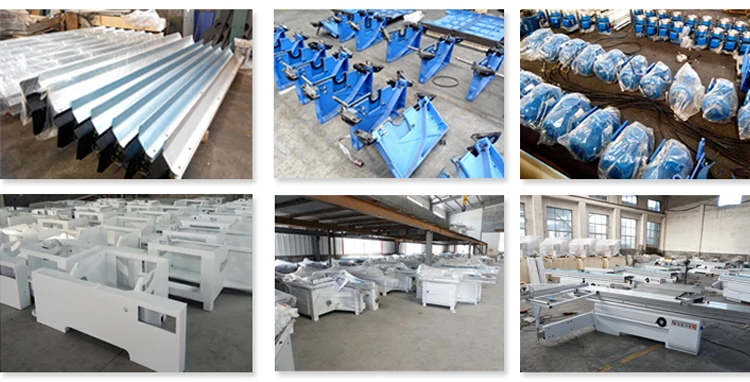

———  Workshop show



wood cutting sliding table panel saw machinery

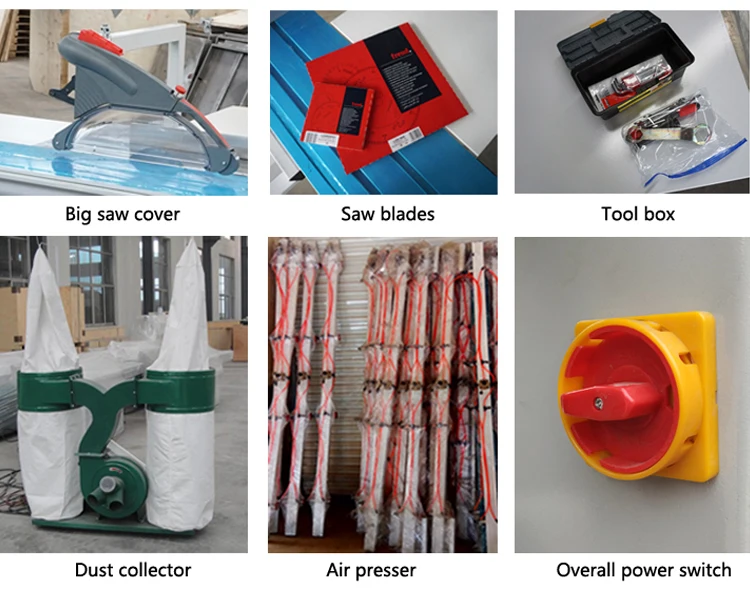

———  Other Parts



wood cutting sliding table panel saw machinery

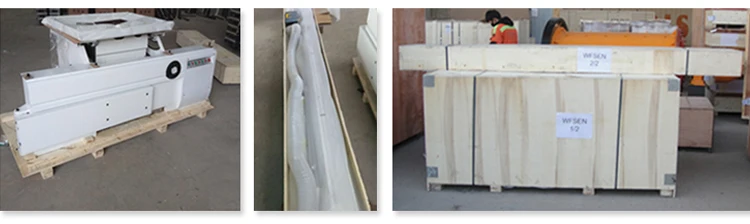

Packaging & Shipping

wood cutting sliding table panel saw machinery



Contact Us

wfsen woodworking machine

Please leave your inquiry details in this below, then click   Send   now, you will get the best quotation.
+
 1 Sliding table size 1600,2200,2800,3000,3200,3800mm ?
 5 Dust cover small or big ?
 6 Dust collector with together or not ?
 7 Saw blade with together or not ?
 8 Voltage 220v, 60hz, single or three phase ?
 9 Your port From Qingdao port to which port ?
