titanium spectacle blind flange price gr2 DN 10'' class 150/300

Product details
Pressure rating:0.6~32Mpa;Packaging Detail:Plywood case tied by steel band or as per client requirements;
Flange surface:FF,RF,TG,RJ etc;Standard or Nonstandard:Nonstandard;
Purposes:can be used for pipes, valves, equipment, petroleum, chemicals, etc.;Supply Ability:5000 Piece/Pieces per Month;
DIN:PN6,PN10,PN16,PN25 though PN250;Standard:ASME/ANSI B16.5,DIN2630~2633,BS etc;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Model Number:titanium flange;
Material:Gr1,Gr2,Gr5,Gr7,Gr9,Gr12;Brand Name:LH;
Port:Shanghai,Beijing, Tianjing Port;Standard:ANSI;
Size:1/2''~80''(DN10~2000);Quality control:Ultrasonic Testing & Material Test Report EN10204.3.1;
Working temperature:-60°C~250°C;Place of Origin:Shaanxi China;

titanium spectacle blind flange price gr2 DN 10'' class 150/300





Product Description



1. Description

productsTitanium  Flange
Material GradeGr1, Gr1, Gr2, Gr3, Gr4, Gr7, Gr9, Gr23, TI-6Al4v, Ti6Al4V Eli
Certification   ISO9001:2008
StandardANSI B16.5,JIS B2220, DIN2627-2628,ASME,GB/T 9116, ASTM B16.5
size1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000)
Pressure ClasePN0.25~32Mpa
(DIN)   PN6,PN10,PN16,PN25 though PN250
150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB
TechniqueForged and CNC Machined
typeWNRF , SORF , BLIND ,SW, PL
Flange surfaceFF,RF,TG,RJ etc
Applicationused in cars, glasses,medical equipment , electronics , petrochemical equ ipment
Advantage   1. Long service life
2. corrosion -resistant
3.hign yeiled strenth and tensile strength.

2. Chemical requirements



N

C

H

Fe

O

Al

V

Pd

Mo

Ni

Ti

Gr

0.03

0.08

0.015

0.20

0.18

/

/

/

/

/

bal

Gr 2

0.03

0.08

0.015

0.30

0.25

/

/

/

/

/

bal

Gr 5

0.05

0.08

0.015

0.40

0.20

5.5~6.75

3.5~4.5

/

/

/

bal

Gr 7

0.03

0.08

0.015

0.30

0.25

/

/

0.12~0.25

/

/

bal

Gr 9

0.03

0.08

0.015

0.25

0.15

2.5~3.5

2.0~3.0

/

/

/

bal

Gr12

0.03

0.08

0.015

0.30

0.25

/

/

/

0.2~0.4

0.6~0.9

bal

3. Tensile requirements

grade

Tensile strength(min)

Yeild strength(min)

Elongation(%)

ksi

MPa

ksi

MPa

1

35

240

20

138

24

2

50

345

40

275

20

5

130

895

120

828

10

7

50

345

40

275

20

9

90

620

70

438

15

12

70

438

50

345

18



4.Product Description

OD ( mm)I D  ( mm)HEIGHT ( mm)
200-400100-30035-120
400-700150-50040-160
700-900300-70050-480
900-1300400-90070-250


5. Available Flange types

a.Slip On Flange
b.Welding Neck Flange
c.Threaded Flange(Screwed Flange)
d.Plain Flange
e.Blind Flange
f.Lap Joint Flange
g.Wocket Welding Flange
h. welded flange
i. titanium large-diameter flange
Detailed Images





Company Information

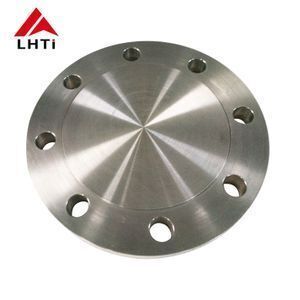

Blind flange
