Newest Germany 810nm micro channel diode bars 40/60/80/100 W for hair removal machine

Supplier: Ivylaser (Beijing) Technology Co., Ltd.
Region: Beijing, China
Contact: Ms Jessie He
Price: $300.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Model Number:	SPMI-100-1.5;	Selling Units:	Single item;
Package Type:	Through Hole;	Type:	Laser Diode;
Application:	laser hair removal;	Max. Forward Current:	100A;
Wave length:	808/810 NM;	Place of Origin:	Germany;
Max. Reverse Voltage:	2V;	Single package size:	15X15X10 cm;
Max. Forward Voltage:	2V;	Max. Reverse Current:	90A;
Brand Name:	Ivylasers;	Type:	Laser diode;
Channel:	Micro or macro channel;	Key word:	810nm micro laser diode bars;
Origin:	Germany;	Pitch:	1.8mm;
Output Power per bar:	40/60/80/100 W;	Single gross weight:	0.5 KG;
Arrange Ways:	Liner array or standrad arrange;

Newest Germany diode bar 808 810nm macro channel 40/60/80/100 W laser diode bars for hair removal machine

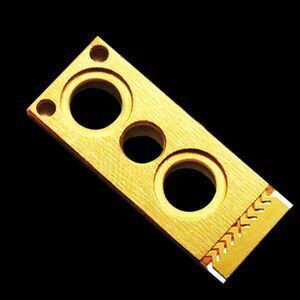

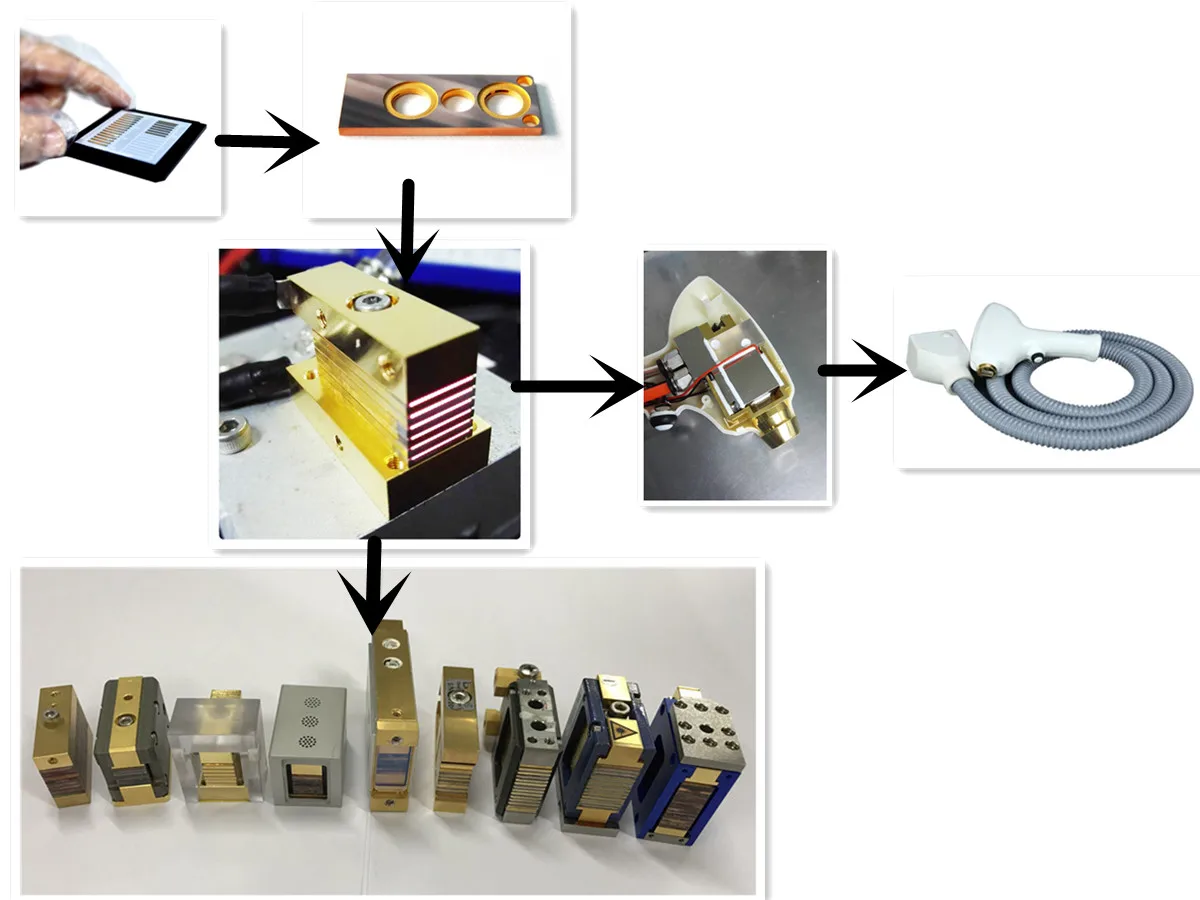

1.diode bars Pictures

2. diode bars Specifictaions

Model No	SPMI-808-100-1.0
Application	Laser hair removal beauty machine and industry application
Operation Mode	CW
Power per submounts	100 W(OEM 40W 60W 80W)
Central wavelength at 25℃	808 ± 2.5nm
Maximum Operating Voltage	2V
Fast Axis Divergence (FWHM)	No
Slow Axis Divergence (FWHM)	No
Expected lifetime	>10000 hours
Typical pitch per bar	1.8mm
Cooling:
Flow rate	0.3L/min ±10% / bar
Water Temperature	15-25 ℃
Water Quality	Deionized 2-10 µs/cm, mixed bed ion exchanger,particle filter<25µm
cooling system	Do not use any material that combination with copper would form galvanic elements

Click to Contact Us Learn More Information

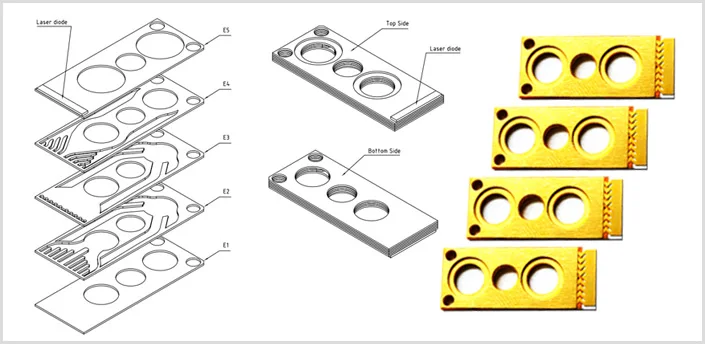

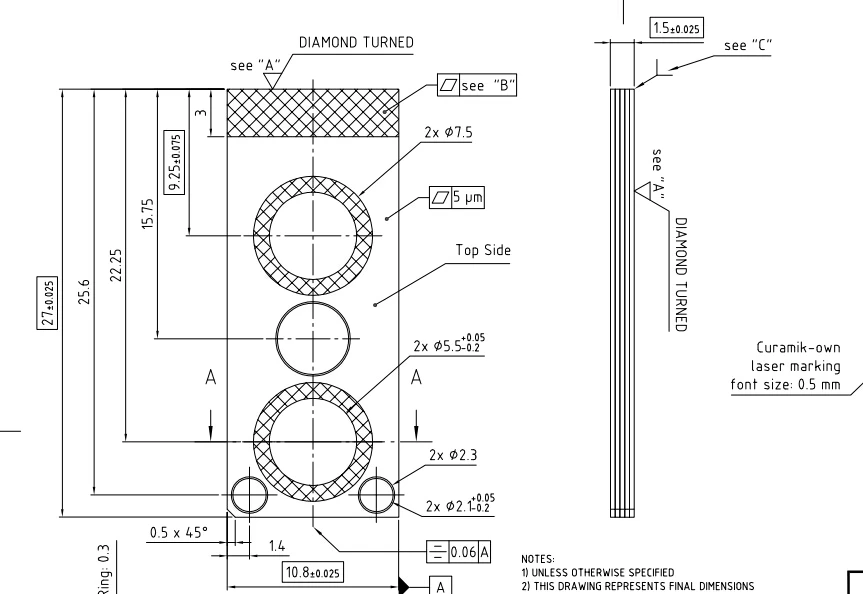

3.diode bars Dimension

4. diode bars Description

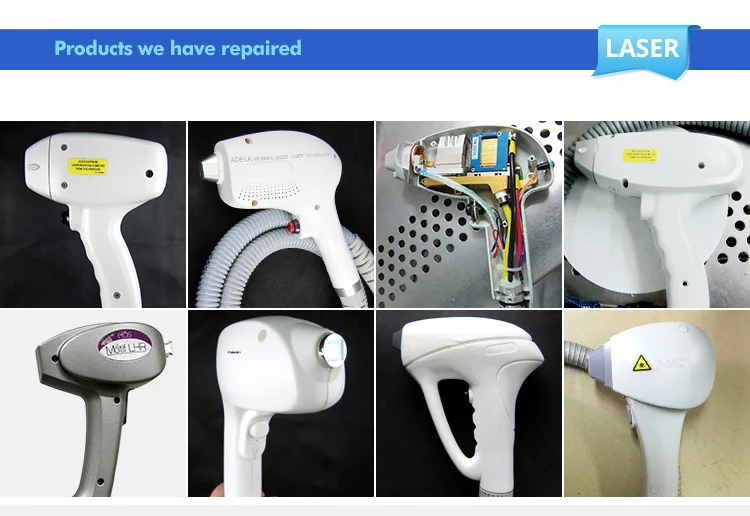

This Single Bar Diode 40/60/80/100 W is used for diode laser hair removal machine repairing and replacement service.Also it can be used for industrial pumping and laser coupler. Oriental-laser focused on diode laser bar assembling for more than 16 years and we have seen various alma soprano diode laser stacks also other brand diode handles.So we can offer the same or similar diode laser bar to recover your diode handles.

(1)Features

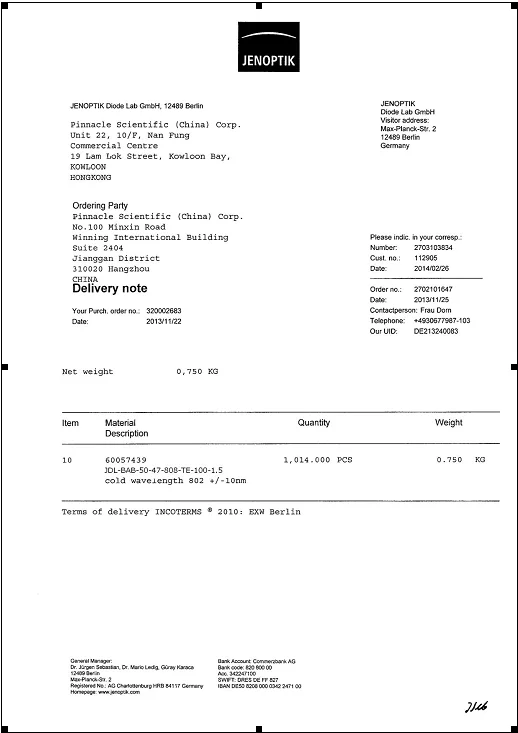

>Diode laser bar from Jenoptik
>macro channel cooler Germany imported >lifetime: over 10000 hours
>Special design for macro channel diode laser machine
