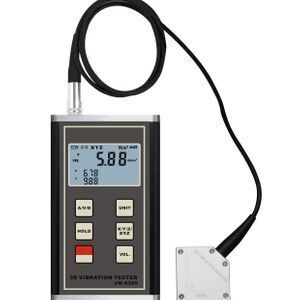

New 3 -Axis Vibration Meter VM-6380

Supplier: Guangzhou Landtek Instruments Co., Ltd.
Region: Guangdong, China
Contact: Ms Ms Ego Wang
Price: $300.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Place of Origin:	Guangdong China (Mainland);	Packaging Detail:	1pc in one carton, carton dimension: 27238cm, total weight: 1.5kg. 10pc in one carton, carton dimension: 442730cm, total weight: 12kg. 20pcs in one carton , carton dimension : 442758cm, total weight : 24kg;
optional accessory:	USB, RS-232 data cable with software or bluetooth;	parameter:	velocity,acceleration and displacement;
Power:	Electronic;	display:	3 same parameters in one display for 3 dimensional measurement;
Port:	Guangzhou;	Payment Terms:	T/T,Western Union,paypal;
Brand Name:	Landtek;	Case Material:	Aluminum Alloy;
frequency range:	10Hz~10kHz)in acceleration mode;	Supply Ability:	2000 Piece/Pieces per Month;
Model Number:	VM-6380;

Applications:

Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep.

* 3 same parameters in one display for 3 dimensional measurement or 1 dimensional measurement specified, showing 3 different parameters of velocity, acceleration and displacement in 1 display.

* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.

* Individual high quality ccelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use “USB data output” and “RS-232 data output” to connect with PC.

Sensor	3-Axis Piezoelectric Accelerometer
Measuring Range	Acceleration: 0.1~400 m/s² 0.3~1312 ft/s² 0.0~40 g Equivalent Peak
	Velocity: 0.01~400 mm/s 0.004~16.0 inch/s True RMS
	Displacement: 0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-peak
Frequency Range	Acceleration: 10 Hz ~ 1k Hz 10 Hz ~ 10k Hz
	Velocity: 10 Hz ~ 1k Hz
	Displacement: 10 Hz ~ 1k Hz
Accuracy	5 % of Reading + 2 digits
Metric / Imperial Conversion
Analogue Output	AC Output 0~2.0 V Peak Full Scale (Load Resistance: Above 10k)
Max. Value Hold
Power Off	Manual Power Off or Auto Power Off
Battery Indicator	Low Battery Indicator
Data Output	USB, RS-232
Operating Conditions	Temperature: 0~50 °C Humidity: <90 %RH
Power Supply	2 x 1.5V AA size (UM-3) Battery
Dimensions	130 x 76 x 32 mm
Weight	340 g (Not Including Batteries)
