4 measurement unit: | Kgf, gf, N, Lbf; | Packaging Detail: | plastic carrying case, paper carton package; |
Place of Origin: | Guangdong, China; | function: | High accuracy and high resolution; |
Resolution: | 1/0.1/0.01; | Single gross weight: | 1.500 KG; |
Model Number: | FM-207; | Package Preview: | ; |
Selling Units: | Single item; | Customized support: | OEM; |
Type: | Push Pull Force Gauge; | Brand Name: | LANDTEK; |
Display: | 2 Reversed 4 Digit LCD; | memory: | 99 groups; |
Single package size: | 27X21X6 cm; | Warranty: | 1 year; |

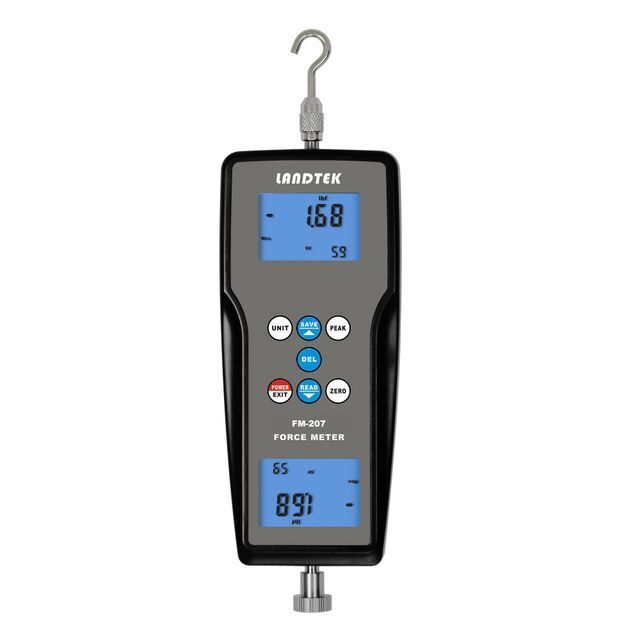

Digital Force Gauge
Model: FM-207 (1 K--1000K)
The digital force gauge is a kind of simple and convenient multi-functional instrument for high-accuracy push force and pull force test. It is widely used in electronics, building hardware, etc. |
Model
|
FM-207-1K
|
FM-207-2K
|
FM-207-5K
|
FM-207-10K
|
FM-207-20K
|
FM-207-50K
|
FM-207-100K
|
Force Range
|
±1kgf
|
±2kgf
|
±5kgf
|
±10kgf
|
±20kgf
|
±50kgf
|
±100kgf
|
±1000gf
|
±2000gf
|
±5000gf
|
|||||
±9.8N
|
±19.6N
|
±49N
|
±98N
|
±196N
|
±490N
|
±980N
|
|
±2.2Lbf
|
±4.4Lbf
|
±11Lbf
|
±22Lbf
|
±44Lbf
|
±110Lbf
|
±220Lbf
|
|
Resolution
|
0.001kgf
|
0.001kgf
|
0.001kgf
|
0.001kgf
|
0.01kgf
|
0.01kgf
|
0.01kgf
|
1gf
|
1gf
|
1gf
|
|||||
0.01N
|
0.01N
|
0.01N
|
0.01N
|
0.1N
|
0.1N
|
0.1N
|
|
0.001Lbf
|
0.001Lbf
|
0.01Lbf
|
0.01Lbf
|
0.01Lbf
|
0.1Lbf
|
0.1Lbf
|
|
Accuracy
|
±0.2% FS ±1 Digit
|
||||||
Unit
|
Kgf, gf, N, Lbf
|
||||||
Measurement State
|
Peak Value Measurement, Real Time Measurement
|
||||||
Display
|
2 Reversed 4 Digit LCD
|
||||||
Power Off
|
10 Minutes Auto Power Off, Manual Power Off
|
||||||
Backlight
|
Blue Backlight
|
||||||
Safe Load
|
150% FS ( Buzzer Alarm Over 110% FS )
|
||||||
Data Output
|
USB, BT
|
||||||
Power Supply
|
2 x 1.5 AA( UM-3 ) Battery or 6VDC Power Supply
|
||||||
Operating Conditions
|
Temperature: 0 ~ 40°C
|
||||||
Humidity: <80%
|
|||||||
Surrounding
|
No Vibration Source or Corrosive Medium Around
|
||||||
Weight
|
390 g
|
||||||
Size
|
211 x 80 x 36 mm
|
One year after-sale service , supply service forever.
one unit carton size 27/21*6cm
FM207(1-500K) : 1.01-1.03kg/unit
FM207(500K-1000K): 2.3kg/unit
