Power supply: | 24VDC/12VDC/5VDC; | Model Number: | BGT-GL802; |
Cable length: | 5m (optional); | Product name: | Water tank level meter sensor pressure guage; |
Protection level: | IP68; | Port: | Tianjin; |
Measuring range: | 0-1m/0-50m/0-500m; | Accuracy: | 0.5% FS (can customize 0.2% FS); |
Payment Terms: | L/C,T/T,Western Union,MoneyGram,Pay Pal; | Diaphragm, shell material: | 316L Stainless steel; |
Output signal: | 4-20mA/0-20mA/RS485/1-5V/0-5V; | Operating temperature: | -20℃-70℃; |
Place of Origin: | Beijing China; | Brand Name: | BGT; |
Packaging Detail: | Box; | Supply Ability: | 2000 Piece/Pieces per Week; |

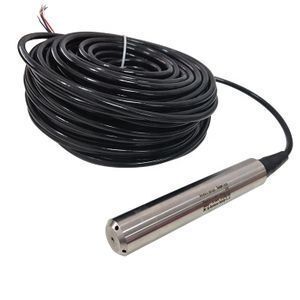

Water tank level meter sensor pressure gauge
BGT-GL802 pressure water level transmitter uses high performance inductive chip, with advanced circuit processing and temperature compensation technology, to convert the pressure change into linear current or voltage signal. The product is compact in size and easy to install. The stainless steel shell is used for isolation and anticorrosion. It is suitable for measuring gas, liquid and other media compatible with the contact materials.
The product is widely used in water plant, oil refinery, sewage treatment plant, building materials, light industry, machinery and other industrial fields, to achieve the measurement of liquid pressure.

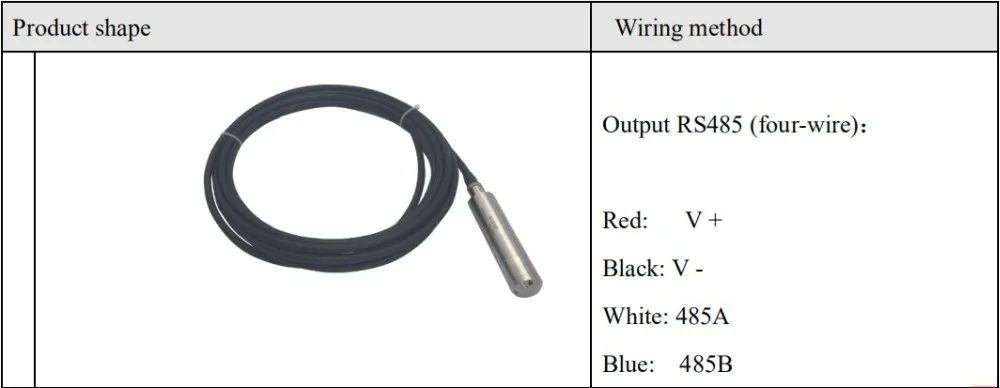

Wiring method
For example:
