Nice CE Wind Cup Anemometer Wind Speed Meter Wind Speed Direction Sensor

Product details
Power supply:DC5V;DC10~30V;Package Type:Cartons;
Output signal:Pulse(wind speed); Current; Voltage; RS485/RS232;;Package Preview:https://sc02.alicdn.com/kf/HTB1fj_AefWG3KVjSZPcq6zkbXXag.jpg_640x640.jpg;
Working environment:-35℃~60℃;≤100%RH, No condensation;Brand Name:BGT;
Defend grade:IP64;Accuracy:±(0.3+0.03V) m/s(V: real-time wind speed); ± 3°;
Model Number:BGT-FS1;Selling Units:Single item;
Resolution:0.1m/s ; 1°;Single gross weight:2 KG;
Measuring range:0~45m/s,0~70m/s; 0°-360°;Single package size:38X29X22 cm;
Material:Carbon fiber;Start wind speed:≤0.5m/s;
Cable Length:0.8m;Place of Origin:Beijing China;
Type:Wind speed and direction sensor;
Please Attention

Beijing Guoxinhuayuan Technology Co.,Ltd OFFER YOU:

1.Factory direct price.
2.Nice quality.
3.Small order is welcome.
4.Online payment.
5.Refund money in case of bad quality.
6.Sample offered but you need to pay it.
7.1 year free repair for quality warranty.
Product Description

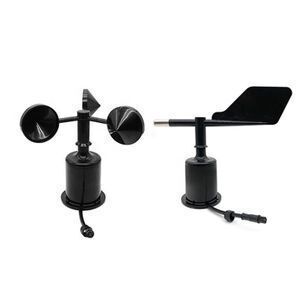

BGT-FS1 Wind Cup Anemometer Wind Speed Meter

Mini type three cup wind speed  sensor is used cup wind as sensing components, which is rotated by wind and drives magnetic steel, the reed switch is working by magnetic steel sensing, output relative electric pulse signals. It's applied in meteorological stations, environmental protection, traffic areas and so on.

BGT-FX1 Wind Direction Sensor

The interior of the wind direction sensor uses a precision angle sensor, and selects the low inertia ABS wind vane to respond to the wind direction with good dynamic characteristics. The product has the advantages of good linearity, high precision, no dead spots, strong anti-lightning ability, convenient observation, stable and reliable. It can be widely used in the fields of weather, ocean, environment, airports, ports, laboratories, agriculture, industry and transportation.

Detailed Images

Nice CE Wind Cup Anemometer Wind Speed Meter Wind Speed Direction Sensor

Measuring Range: □0~45m/s □0~70m/s; 0°~359°
Accuracy : ±(0.3+0.03V) m/s(V: real-time wind speed); ±3°
Resolution :0.1m/s;  1°
Starting wind speed:≤0.5m/s
Power supply mode: □DC5V □DC9-30V
Output:  □Pulse (wind speed sensor);
               □ Current: 4~20mA;0-20mA
               □ Voltage: 0~5V; 1~5V; 0~2.5V
               □ RS232: (□ASCII □ModBus);
               □ RS485: (□ASCII □ModBus)
Cable: □Standard: 0.8m □Other
Operating environment: Temperature -35℃~60℃                                       Humidity≤100%RH, No condensation
Defend grade: IP64
Cable grade: Rated voltage: 300V, 80℃
Material :Carbon fiber



If you wanna order single sensor, please click at the following picture to make an order.

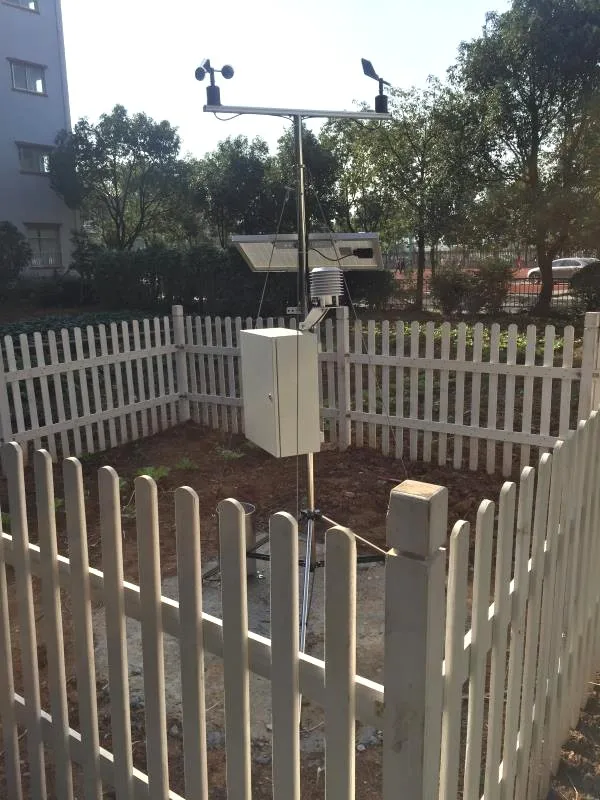

Application


Good Feedback from Customers


Company Profile

   Beijing Guoxinhuayuan Technology Co.,Ltd is a Hi-tech company of national disaster prevention and early warning with R&D, production, marketing, project implementation and after sales. We specialize in providing professional hydrological monitoring equipment and technical services, and have developed a series of flood warning system products with more than 50 patents and 60 software copyrights. Our product line includes monitoring products, communication products, early warning products and cloud platform,which apply the Internet of things, big data and other forward-looking technologies. And our products are covered all provinces in China and more than 50 countries overseas. We persist in managing ideas of Profession, Innovation, Sincerity and Persistence and principle of Sincere Service to aim to be top in early warning industry, support solutions of automation, intelligence, networking, information technology, wireless Internet, IOT industry to customer.
     We are devoted to solving the flood disaster problems for human beings and becoming one of the famous international brands in the flood early-warning industry. Welcome to contact us.

Nice CE Wind Cup Anemometer Wind Speed Meter Wind Speed Direction Sensor
Our Factory
Related Products

Wind sensor

Tipping bucket rain gauge

Solar radiation sensor

                                   Weather Station                                                                Soil Moisture Sensor
