15mm-20mm smart anti-theft for water meter wifi

Supplier: Jianghua Group Co., Ltd.
Region: Shandong, China
Contact: Mr. Steven Si
Price: $5.00 / >=100 sets
Min. Order: 100 sets

Click here to contact

Product details

Place of Origin:	Shandong China (Mainland);	Package:	carton;
Max Reading:	9999/99999;	Material:	brass body;
Water pressure:	0.02MPa ~ 1MPa;	Type:	Prepaid water meters;
Product name:	smart water meter;	Model Number:	LXSK-15E-200E;
Size:	DN15mm~DN200mm;	Certificate:	CE/ISO4064/ISO9001;
Can be OEM:	YES;	Temperature:	0.1~30℃;
Color:	White;	Brand Name:	Jianghua;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;

Product Description

Application
Measuring the volume of cold potable water passing through the pipeline

Work Conditions
Water temperature : 0.1℃- 40℃

Water pressure : ≤1.0 Mpa

Brief Introduction

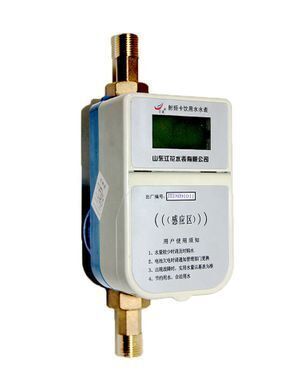

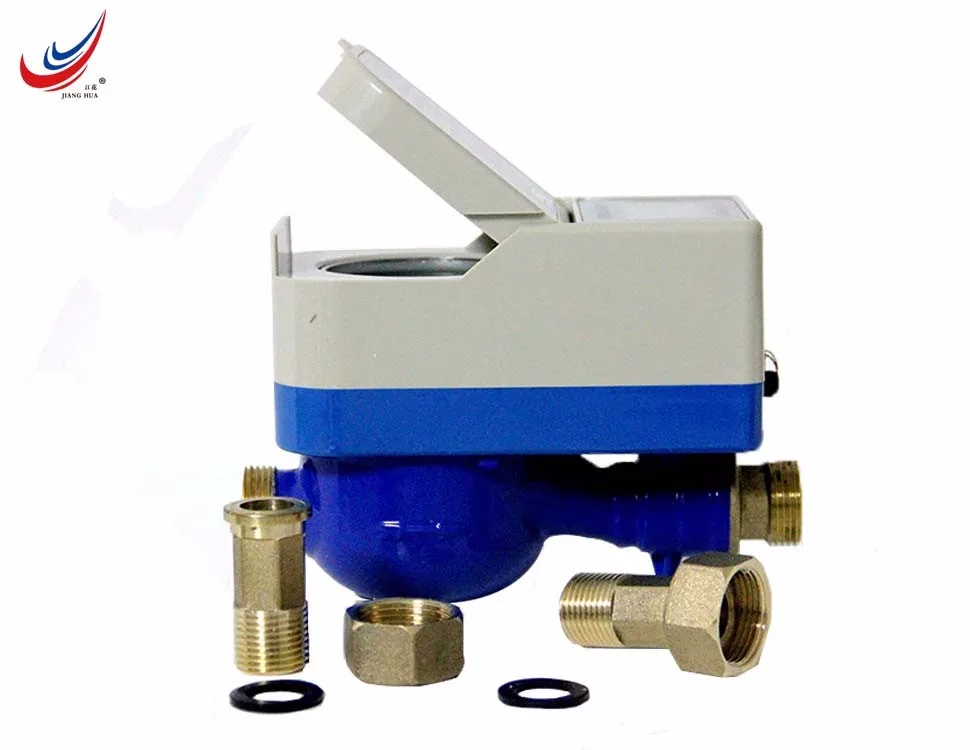

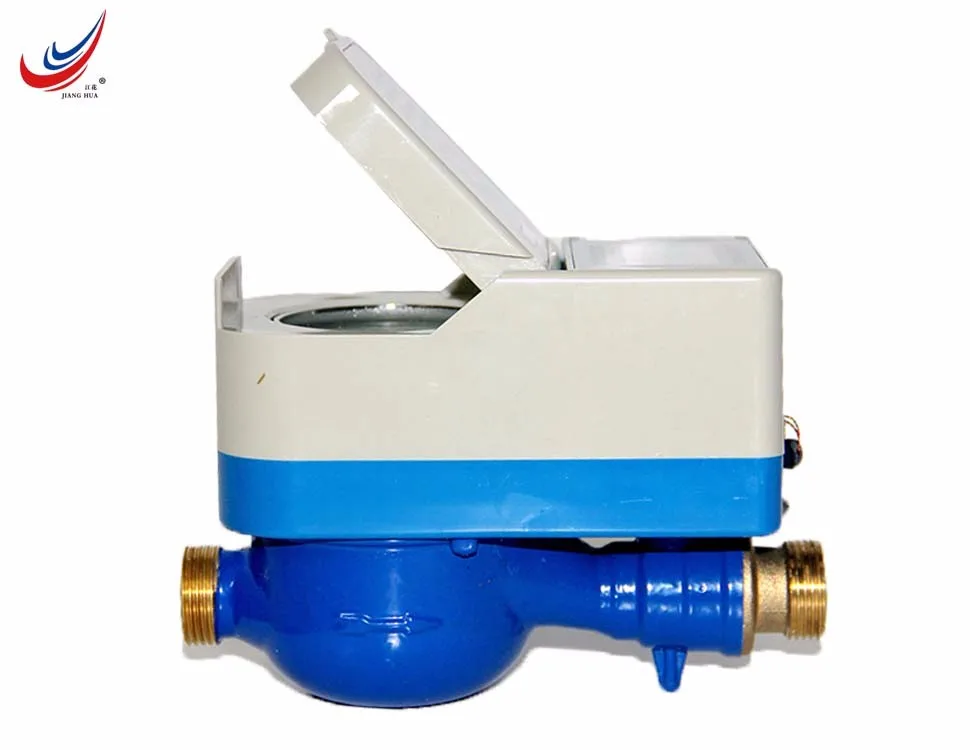

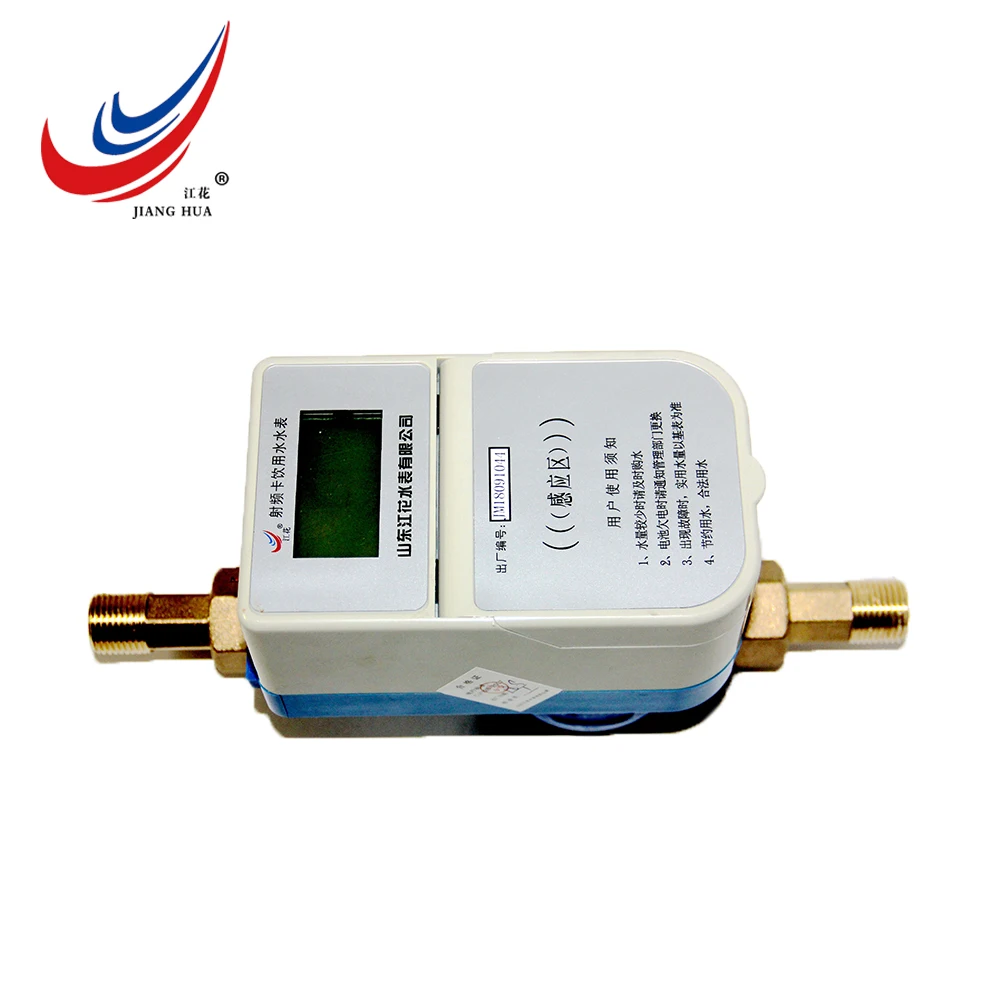

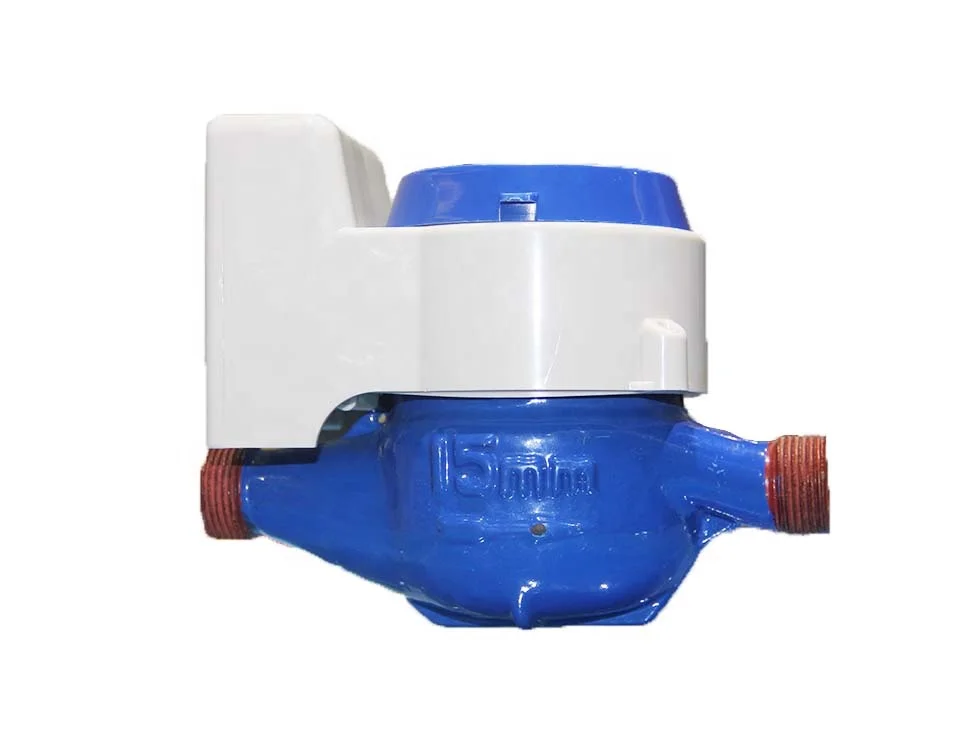

RF Card Prepaid Water Meter is developed from WET-type basic water meter,
composed of microchip module, controlling valves, LCD display,RFCard & card reader, and accounting management syste

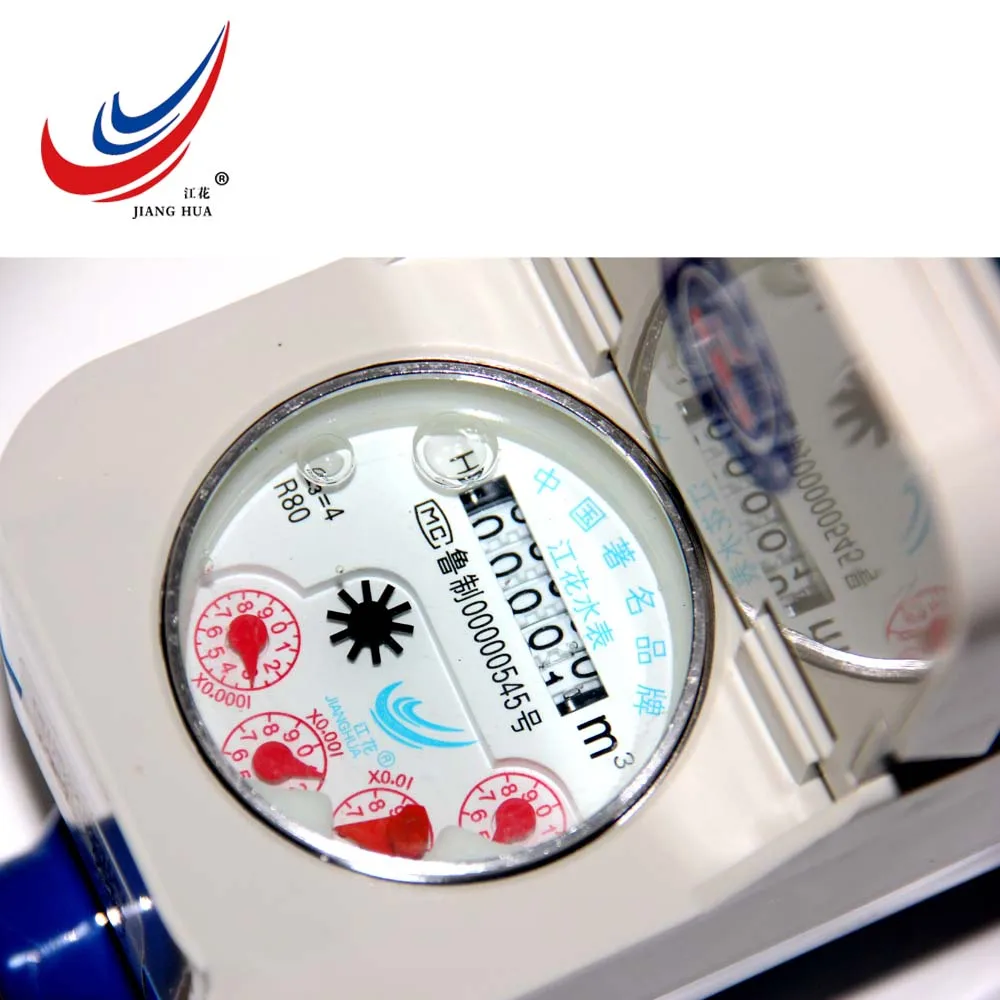

★ The figure of water volume is displayed directly on screen
★ The water using could be controlled as prepaid method

Main technical data

DN(mm)	Q4 (m3/h)	Q3 (m3/h)	Q2(m3/h)	Q1(m3/h)
DN(mm)	Overload flow-rate	Permanent flow-rate	Transitional flow-rate	Minimum flow-rate
15	3.125	2.5	0.050	0.032
20	5.000	4.0	0.080	0.050
25	7.875	6.3	0.126	0.079

★ Technical standards: ISO9001:2008,ISO14001:2004,GB/T778,JB/T8802,JJG686,CJ/T133
★ Valve Life :≥5,000 times
★ RF Card Life :≥100,000 times
★Power Supply : 3.6V lithium battery, life≥6 year
★Security : Unique Card per Meter, uncopiable
★ Static Working Current (μA):≤6

Maximum permissible error
From the minimum flow rate Q1 to the lower zone of the transitional flow rate Q2 :≤±5%

From the transitional flow rate Q2 to the high zone of the maximum flow rate :≤±2%

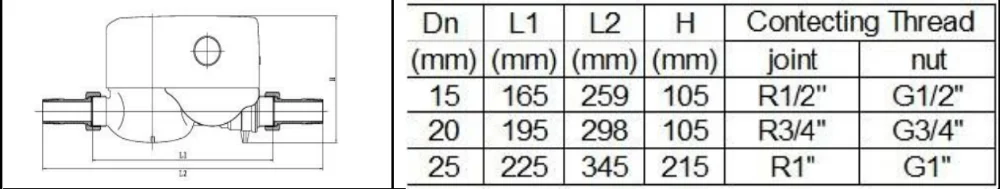

Dimensions

Installation requirements
★ Clean the foreign matter from the inside pipe.
★ This kind of water meter couldn't be spoiled in the hot sun,humid, freeze,chemistry,electronic pollution, easy for dismantle,reading, and credit the user card.
★ Horizontal install, the direction mark should in accordance with the flow direction. Leave length about 6-12 times of the pipe diameter at the front of the water meter, and length about 4-6 times of the pipes diameter at the back of the water meter for the accuracy measurement.

Main Products

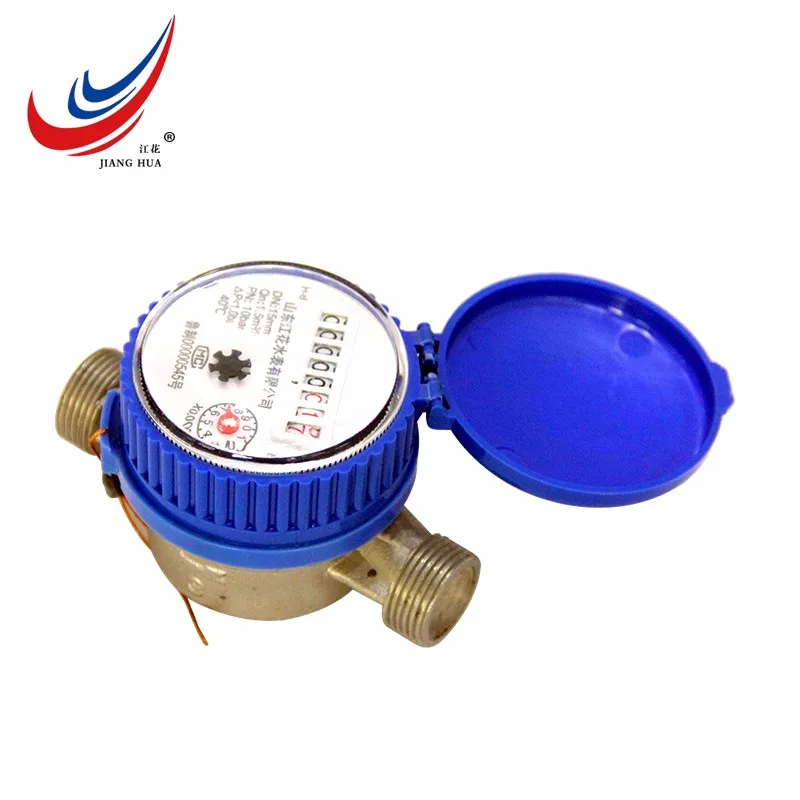

single-jet water meter

Lora water meter

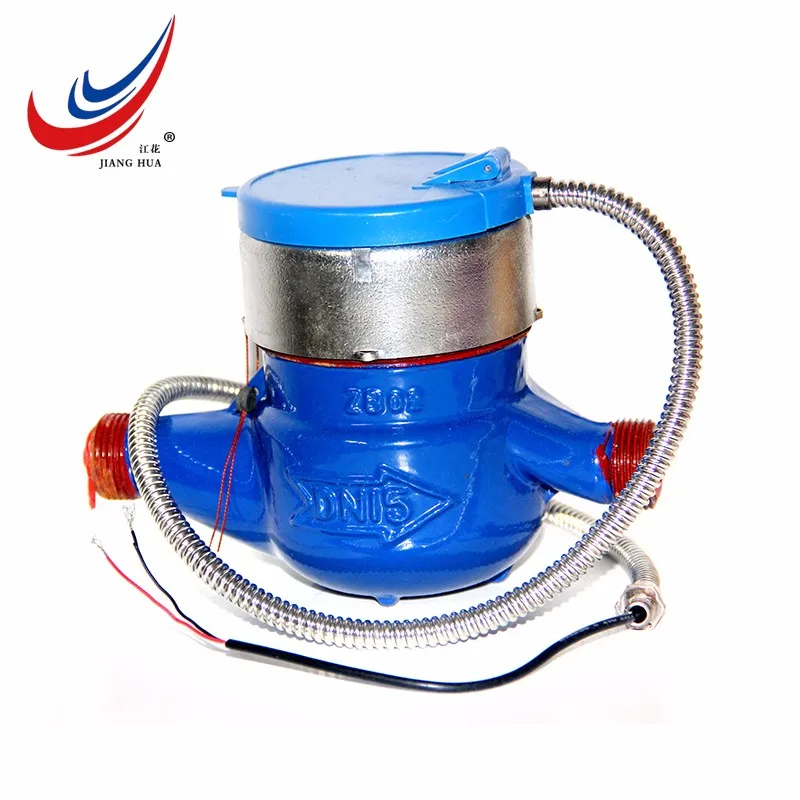

Wired remote transmitting direct reading water meter

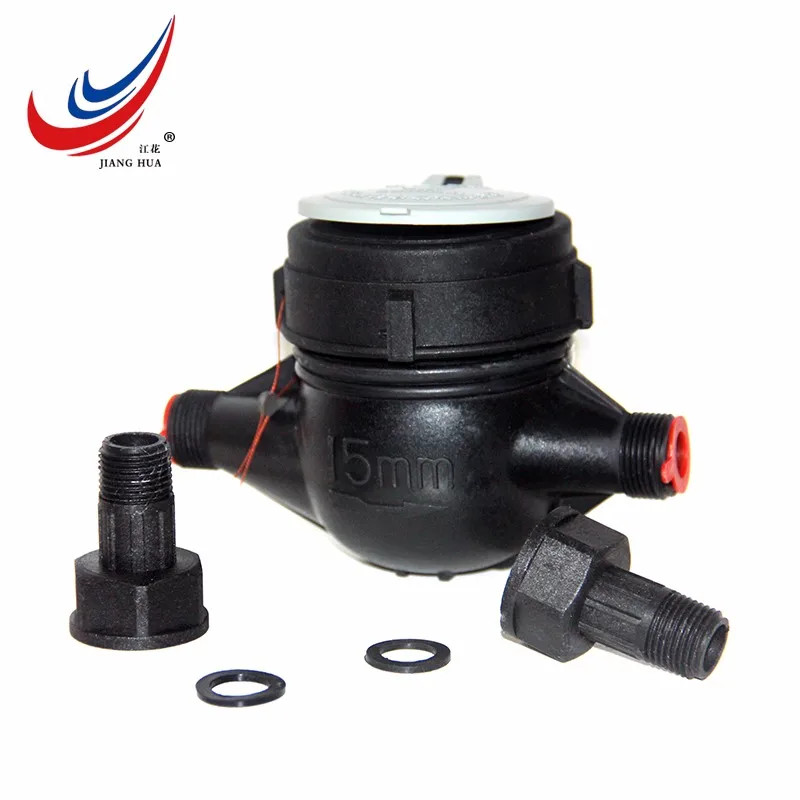

Environmental friendly nylon water saving meter

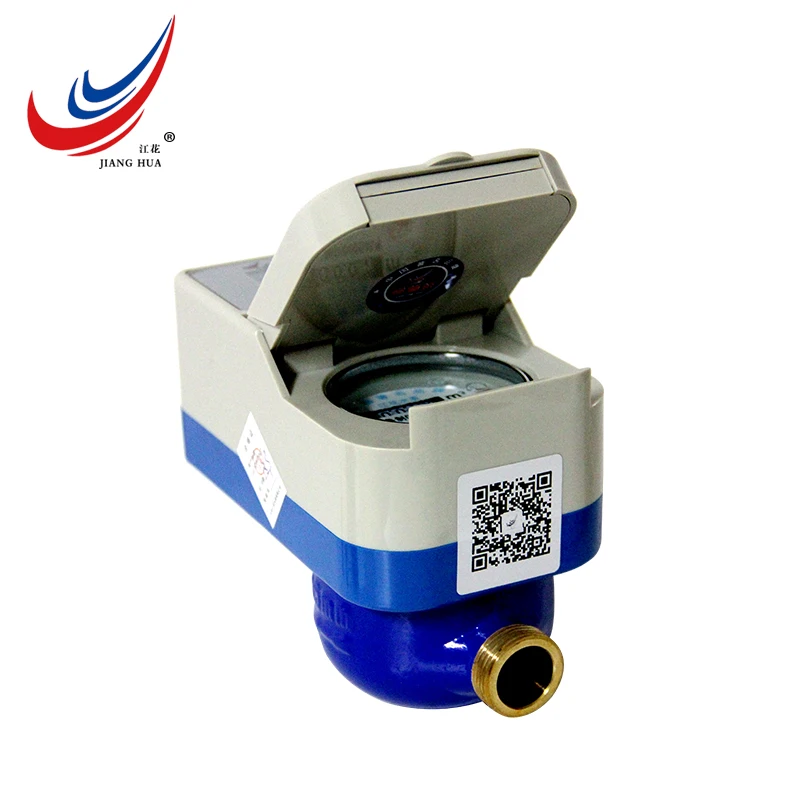

IC card smart water meter

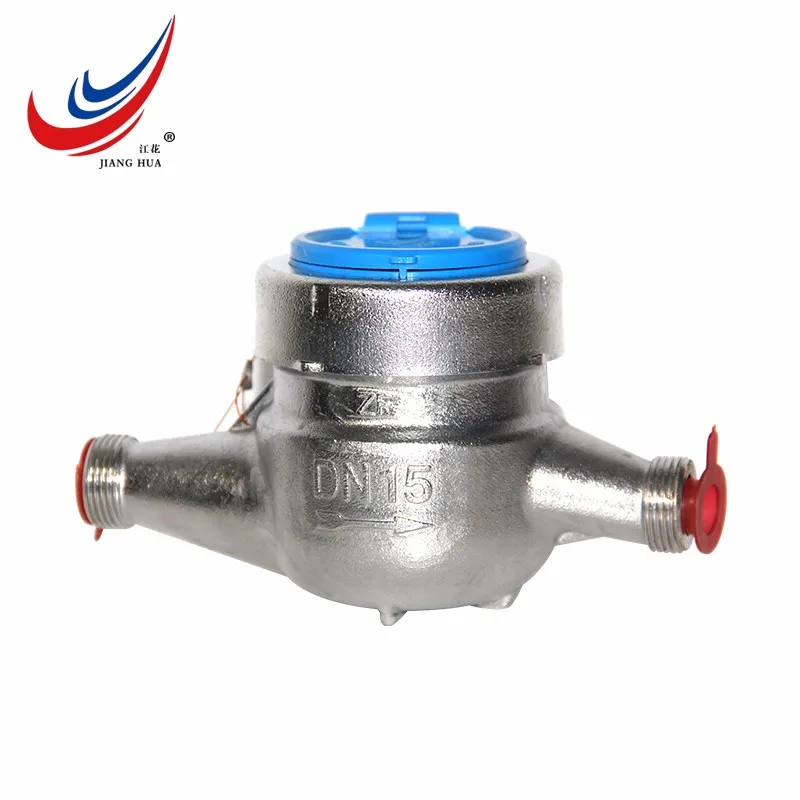

Stainless steel water meter

WHY CHOOSE US

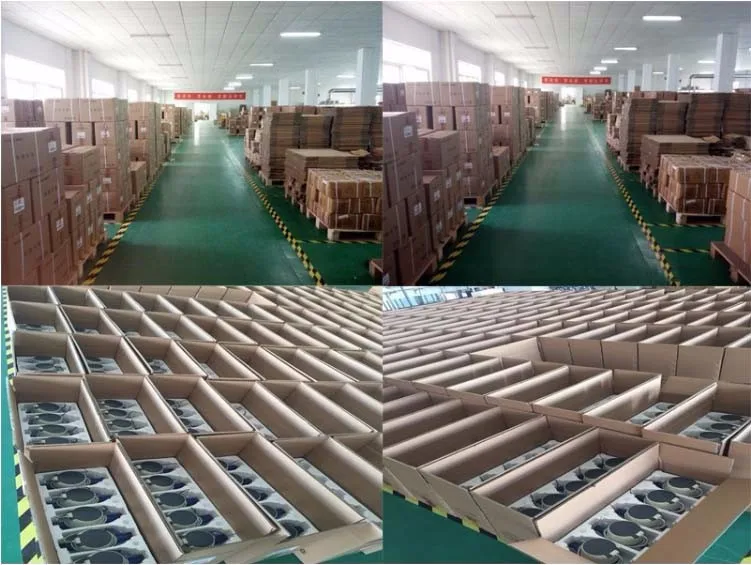

Packing & Delivery

Packing:Standard export package,or as the customers' requirement.
Delivery Time:7-20 days after receive the deposit.

If you want to know more details,please contact with us.

FAQ

Q:Why choose you ?
A:We have professional team of workers ,service and inspection, and we have our own factory, we are the professional direct manufacturer .

Q:Could I get the samples ? Is it for free ?
A:Of course yes , we provide the small size sample for free , but we don't pay the freight cost , you should pay it by yourself .

Q:Could you accept OEM ?
A: Absolutely yes , we accept it .

Q:Will you save my mold for future orders ?
A:Yes.Once we creste your mold.you can use it as many times as you like at no cost for future orders.As long as you keep the same design there is never any new molding fees.

Q:Do you offer customized packing ?
A:Yes!All of our products can be packed as your requirement.
