V3020 Cheap Industrial Metal Small Mini Desktop Mini CNC Milling Machine for Sales
-
Supplier: Tengzhou Borui CNC Machine Tool Co., Ltd. -
Region: Shandong, China -
Contact: Mr hemingway hu -
Price: $9000.00 /set -
Min. Order: 1 set
| Type: | Vertical; | Table size: | 550*200 mm; |
| Weight (KG): | 1500; | Name: | Cheap Benchtop Cnc Milling Machine Model V3020; |
| Table Travel (mm): | 300/200/280mm; | Repeat positioning accuracy: | ±0.015mm; |
| Range of Spindle Speed(r.p.m): | 60 - 8000; | Controlling Mode: | Cnc Control; |
| Positioning Accuracy (mm): | 0.01; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Spindle Taper: | ER20; | Model Number: | V3020; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Warranty: | 1 Year; |
| Brand Name: | BORUI; | Spindle taper: | BT30; |
| Repeatability (X/Y/Z) (mm): | 0.008mm; | Applicable Industries: | Manufacturing Plant,Construction works ,Energy & Mining; |
| Key Selling Points: | Competitive Price; | Place of Origin: | Shandong China; |
| Year: | 2019; | Packaging Detail: | 1 Wood Ply Case 2 Net Weight1000 KG 3 Over all packing Dimension 1200*1050*1650 mm; |
| Positioning accuracy: | ±0.02; | Spindle Speed: | 12000-24000rpm; |
| Port: | QingDao Port Or ShangHai Port; | CNC or Not: | CNC; |
| Power (kW): | 3; | Machine Type: | Cnc Vertical Milling Machine; |
| Supply Ability: | 50 Set/Sets per Month; | Voltage: | Customer Requirement; |
| Certification: | ISO9001 CE; | Dimension(L*W*H): | 1200*1050*1650mm; |
| Condition: | New; | Max. table load: | 150 KG; |
| After-sales Service Provided: | No after-sales service,Free spare parts; |

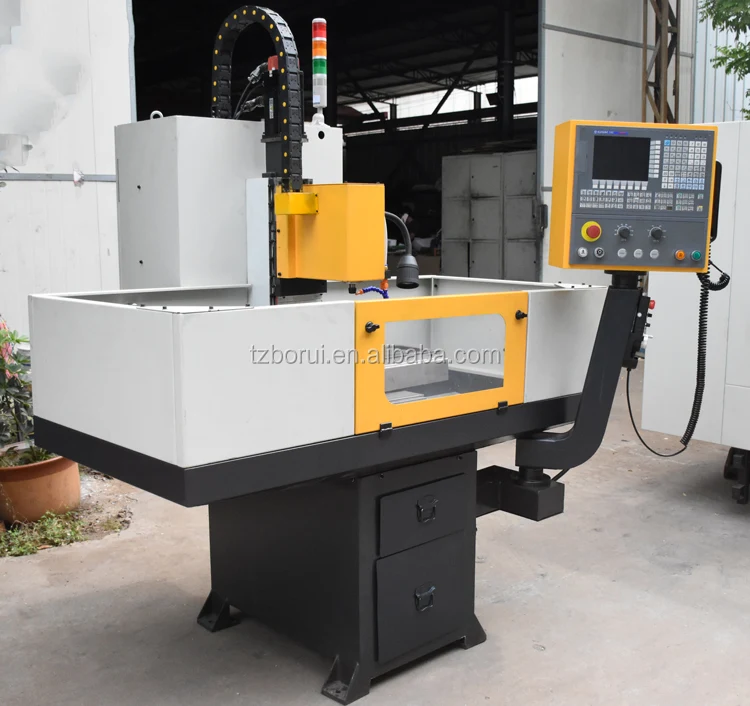

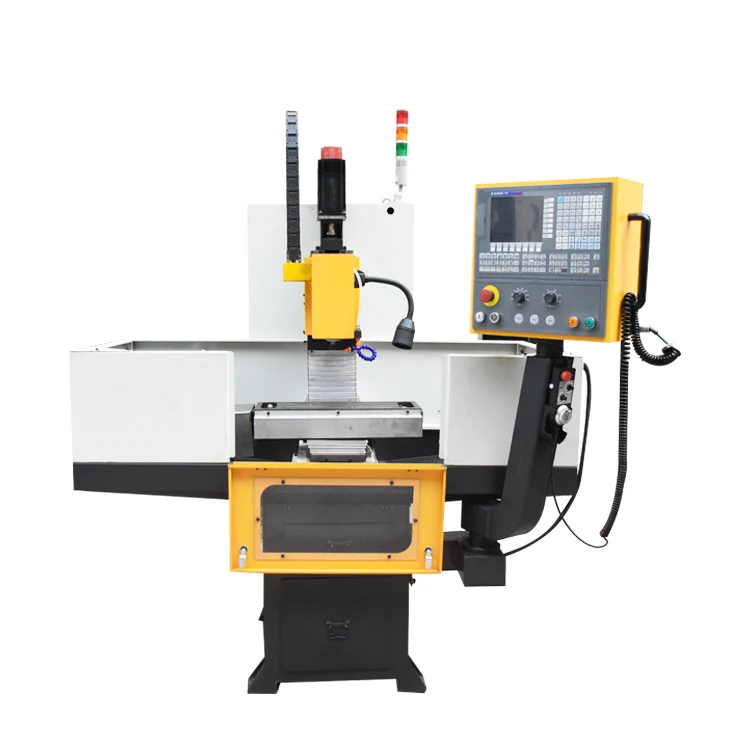

Cheap cnc milling machine hightech Model V3020
Cheap cnc milling machine hightech Model V3020 feature:
1. Cheap Cnc Milling Machine Model V3020 : the body casting technology is advanced, the aging process, casting label meet national standards.
2. The upright post and guide rail are of high precision and high precision.
3. Two type change tool available, hat type and the disc type , pneumatic.

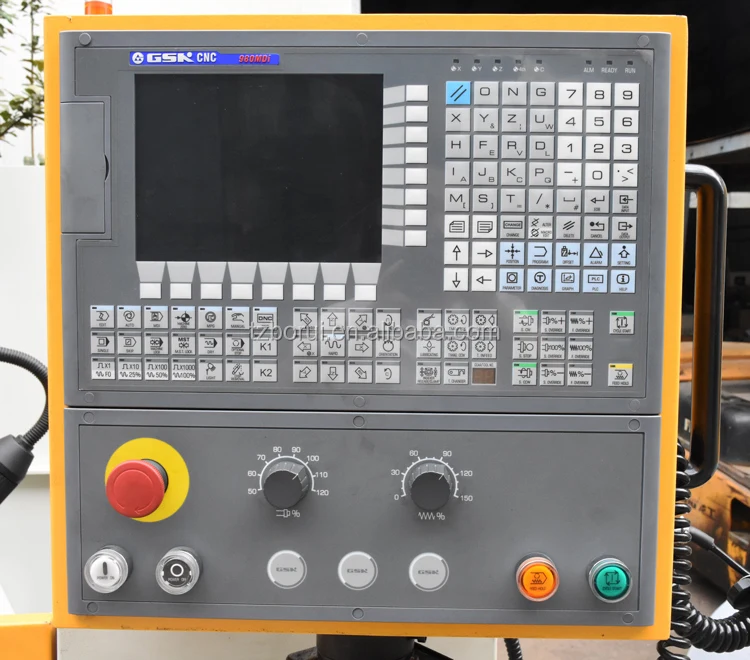

4. CNC system can be used to step motor or servo motor, to provide customers with a good price.
5. Can be customized according to customer requirements of the corresponding products
Item | Specification | Unit | V3020 |

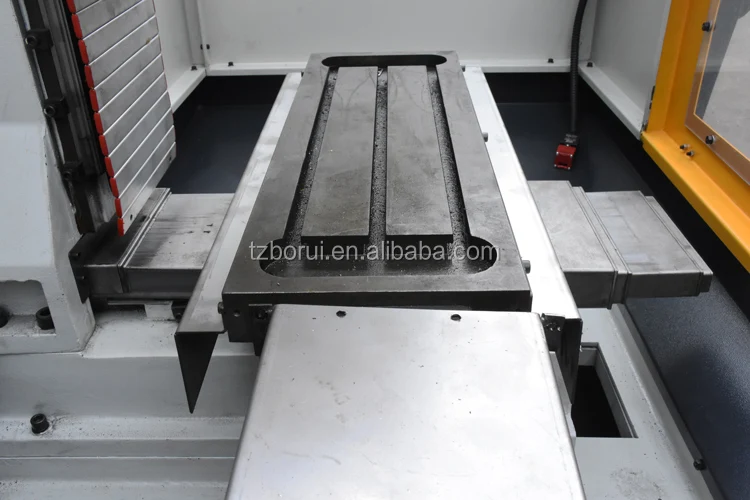

Worktable | Worktable size | mm | 200*550mm |
Stroke | X stroke (X) | mm | 300 |
Y stroke(Y) | mm | 200 | |
Z stroke (Z) | mm | 280 | |
Spindle | The distance from spindle nose to worktable size | mm | 90--370 |
The distance from spindle center to column surface | mm | 240 | |
The spindle taper |
| BT30 | |
Spindle max speed | Rpm | 12000 | |
Spindle motor power | kw | 3 | |
Rapid movement | Worktable rapid moving speed X/Y/Z | m/min | 15/15/15 |
Feeding speed | Cutting feeding speed | mm | 8000 |
Working accuracy | Machine positioning accuracy | mm | 0.01 |
Repeat positioning accuracy | mm | 0.004 | |
| Machine weight | kg | 850 |
| Machine size (L*W*H) | mm | 1200*1050*1650 |
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What’s your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
