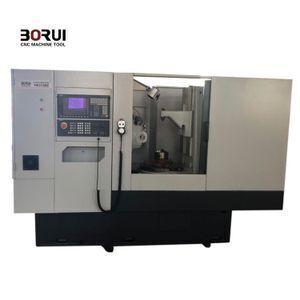

YK3150E small 4 axis CNC Gear hobbing Machine

Product details
Name:CNC Gear Hobbing Machine YK3150E;Max diameter of workpiece:500mm;
Max diameter of hob:120;Brand Name:BORUI;
Voltage:Customer's Requirment;Certification:ISO9001 CE BV;
Type:Gear Hobbing Machine;COLOR:Blue;
CNC control system:KND;Condition:New;
Place of Origin:Shandong China;Machine Type:Cnc Gear Creator;
Port:qingdao and shanghai ,guangzhou port;After-sales Service Provided:Engineers available to service machinery overseas;
CNC or Not:CNC;Max Module:5/6MM;
Weight:4000kg;Diameter of worktable mandrel (mm):30;
Dimension(L*W*H):2800mm*1900*2000mm;Product type:Non-CNC Gear Hobbing Machine;
Power(W):3kw;Material / Metal Processed:Steel /cast Iron;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Packaging Detail:the gear hobbing machine will be packed in one plywood case 1.packing size :2800*1900*2000mm;
Supply Ability:50 Set/Sets per Month;

YK3150E small  4 axis CNC Gear hobbing Machine

Product Description



The feature of YK3150E cnc gear hobbing machine :

The main feature :

1.Using four-axis CNC system to achieve four-axis linkage

2.Machinable straight teeth, helical, small taper, drum and other gear, 3.helical teeth can be easily 45 ° profile

4.Machinable splines, fewer teeth and other special gear gear

5.Machine bed, column and other major castings using high-rib plate structure and large rectangular plastic rail, compact structure, strong dynamic and dynamic

6.Machine rotation chain is short, high precision, processing accuracy can reach 6 The spindle adopts high-power servo motor, which can realize stepless speed regulation in cutting range

7.Tailstock top hydraulic automatic control





Main technical parameters

YK3150E cnc gear hobbing machine

Max working module

  steel

8

 Cast  iron

10

Max diameter of workpiece

 with column (mm)

350

 without column (mm)

500

Max diameter cutting   Cylindrical helical gear

Rotation angle 30°

370mm

Rotation angle45°

250mm

Max vertical travel of knurling tool (mm)

260

Max length of cutting (mm)

240

Distance from spindle center to worktable surface (mm)

25-320

Minimum distance from worktable surface to hob arbor (mm)

170

Diameter of hob arbor (mm)

22  27  32

Max diameter of hob (mm)

120

Diameter of workingtable hole (mm)

60

Diameter of worktable mandrel (mm)

30

Speed of Hob main spindle

  Grade

8

 Range (r/min)

50-275

The workpiece vertical feed

0.24-4.25 mm/r

Main motor power

3 kw

 Main motor speed

1430 r/min

cooling motor power

 0.125 kw

cooling motor speed

 2790 r/min

 net  weight

 4000 kg

Overall dimensions

2800*1900*2000MM

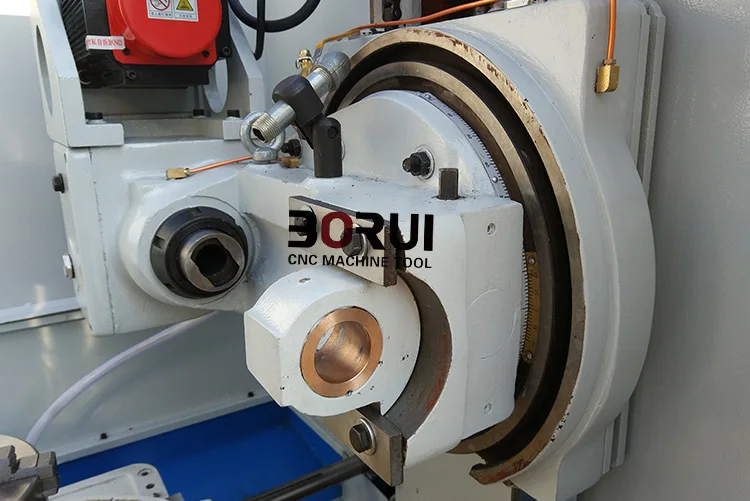

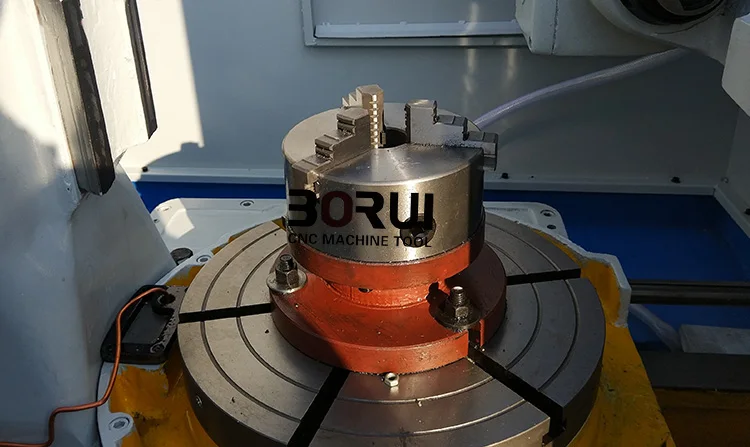

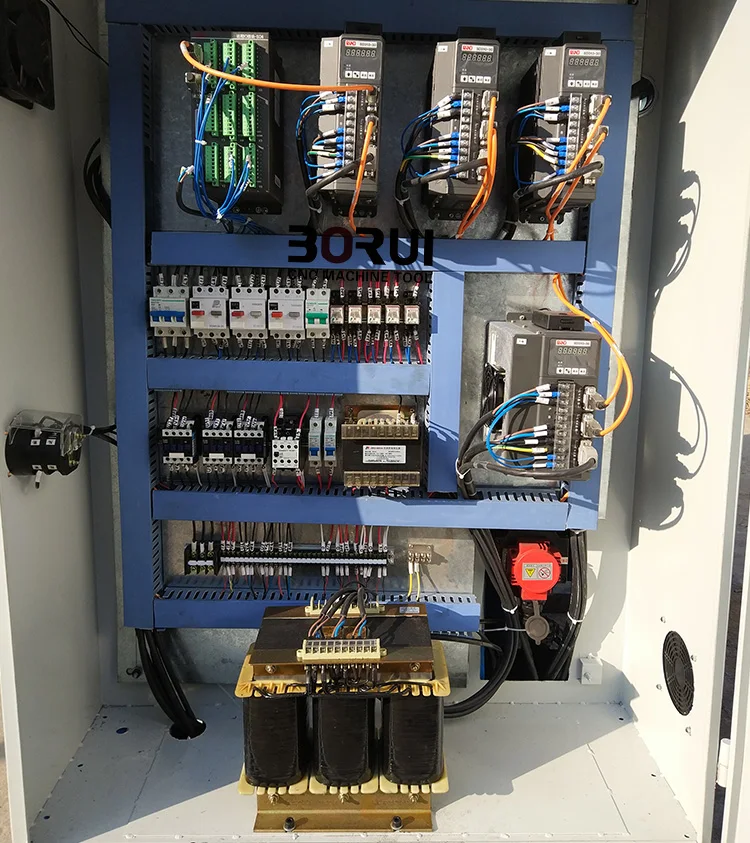

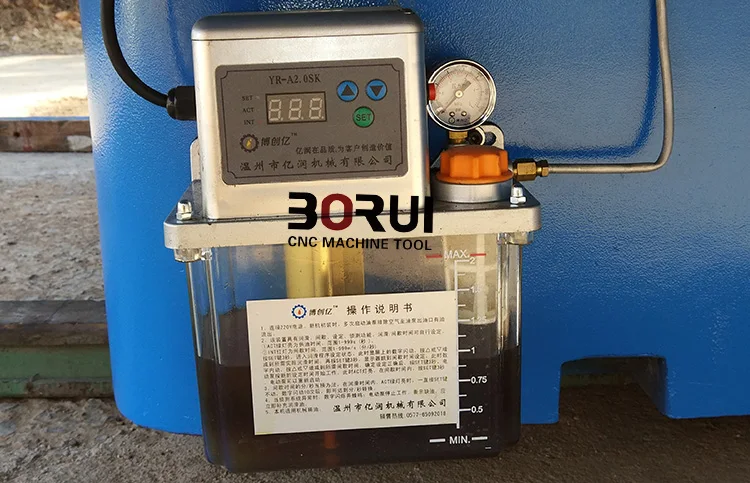

Detailed Images





















Related Products
CNC GEAR HOBBING MACHINE Y3150K4 AXIS CNC GEAR HOBBING MACHINE YK3150E
CNC GEAR HOBBING MACHINE YK3150GEAR HOBBING MACHINE Y3150-3
Company Information



1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .


2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .



3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.



4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.



5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .



5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )



We want to know:

1.What’s your Industrial Voltage?

2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!

3.If need CIF Price, please kindly tell us the port of destination.
