Borui low price mesin gear hobbing y3150 Machine factory

Product details
Processing Types:Gear Processing;Dimension(L*W*H):1825*935*1730;
Package Preview:;Condition:New;
After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;Power (kW):3;
Brand Name:BORUI;Max vertical travel of ho:260MM;
Applicable Industries:Manufacturing Plant,Machinery Repair Shops;Feature:High Rigidity;
Max modulus:6mm;Weight (KG):2500;
Showroom Location:None;Diameter of workingtable hole:60MM;
After-sales Service Provided:Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;Voltage:Customer's Requirment;
Supply Ability:30 Set/Sets per Month;CNC or Not:Normal;
Local Service Location:Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Japan,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Uzbekistan,Tajikistan;Name:Spur Gear Hobbing Machine;
Worktable diameter:370MM;Type:Gear Hobbing Machine;
Max diameter of hob:120MM;COLOR:Customers' Require;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Key Selling Points:Competitive Price;
Certification:ISO9001CE;Warranty:1 YEAR,12 Months;
Packaging Detail:packed in one ply wood ,the gear hobbing machine packing size is 1925*1035*1830 mm;Place of Origin:Shandong China;
Port:qingdao ,shanghai;

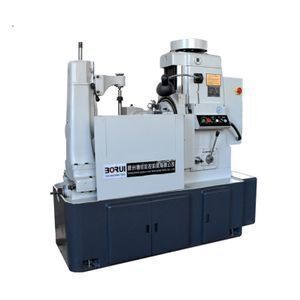

Borui low price mesin gear hobbing y3150 Machine factory

Product Description



1.The basic guide surface :hardening treatment

2.Turbine material:Tin bronze

3. Processing range :spur gear ,spiral gear ,worm wheel and so on

Y3150   Gear Making Machine with High Speedis suitable for processing a variety of cylindrical spur gears, helical gears and worm gear .



If you don't know how to set the change gears ,we could help you and take photoes for you .



Y3150   Gear Making Machine with High Speed is suitable for single-piece production and mass production,As preparing a number of the same type of machine tool ,the most reasonable approach is to separate a certain number of machine tools designed for finishing cutting ,to ensure the machine is working well.



Y3150   Gear Making Machine with High Speed has sufficient rigidity, when the machine cutting gears ,it can processe to the desired depth of the teeth in once time, also could cutting in several times (layered cuting), when layered cutting we must follow certain rules to change every time cutting parameters, such as the choice of appropriate cutting speed, feed rate and reasonable precision of cutting depth ,and install the workpiece  accurately , the machine can produce the seven grade precision gears.





Spur Gears Gear Hobbing Machine

has the hydraulic balancing device to balance the cutting resistance of the knife rest,  the machine also can be used for smooth milling to improve machine productivity.

 The gear cutting machine is equipped with a knife rest fast-moving device and automatically stopping device  when finishing cutting, so the machine is not only widely used in gear cutting, and easy to operate, also could be multi-machine management.



Main technical parameters of gear hobbers

 Y3150-3

Max working module

  steel  (mm)

 5

 Cast  iron(mm)

 6

Max diameter cutting straight Spur gear

 with column (mm)

 350

 without column (mm)

 500

Max diameter cutting   Cylindrical helical gear



Rotation angle 30°

 370mm

Rotation angle45°

 250mm

Max vertical travel of hob (mm)

 260

Max length of cutting (mm)

 240

Distance from hob spindle  to worktable surface (mm)

 Max(mm)



320

Min(it is 30 mm when the distance from hob spindle to worktable surface less than 85mm) mm

25

Minimum distance from worktable surface to hob spindle axis  (mm)

 170

The changeable Diameter of hob spindle(mm)

 22  27  32

Max diameter of hob (mm)

 120

Diameter of workingtable hole (mm)

 60

Diameter of worktable mandrel (mm)

 30

Speed of Hob main spindle

  Grade

 8

 Range (r/min)

 50-275

The vertical feed of hob

 0.24-4.25 mm/r

Main motor power

 3 kw

Main motor speed

 1430 r/min

Pump motor power

 0.125 kw

Pump motor speed

 2790 r/min

 Net weight (inclusive all standard accessories)

 2600 kg

Size(L*W*H)mm

 1825*935*1730

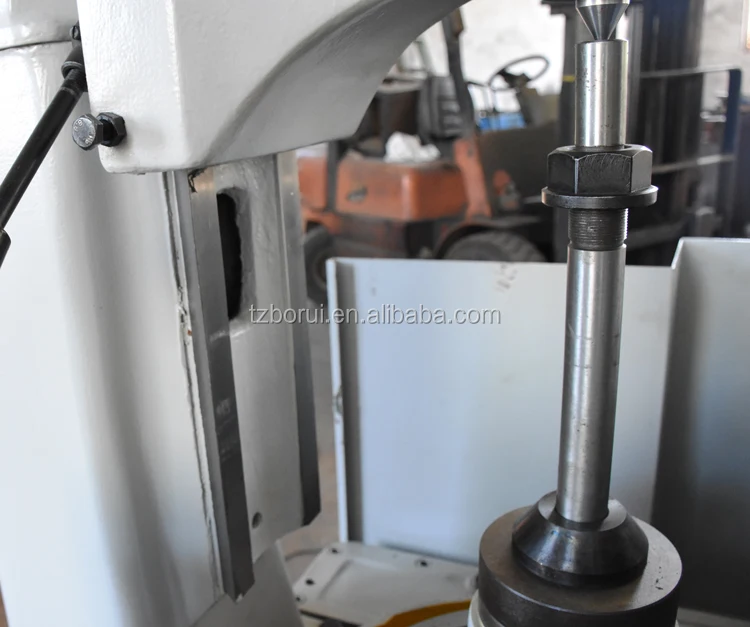

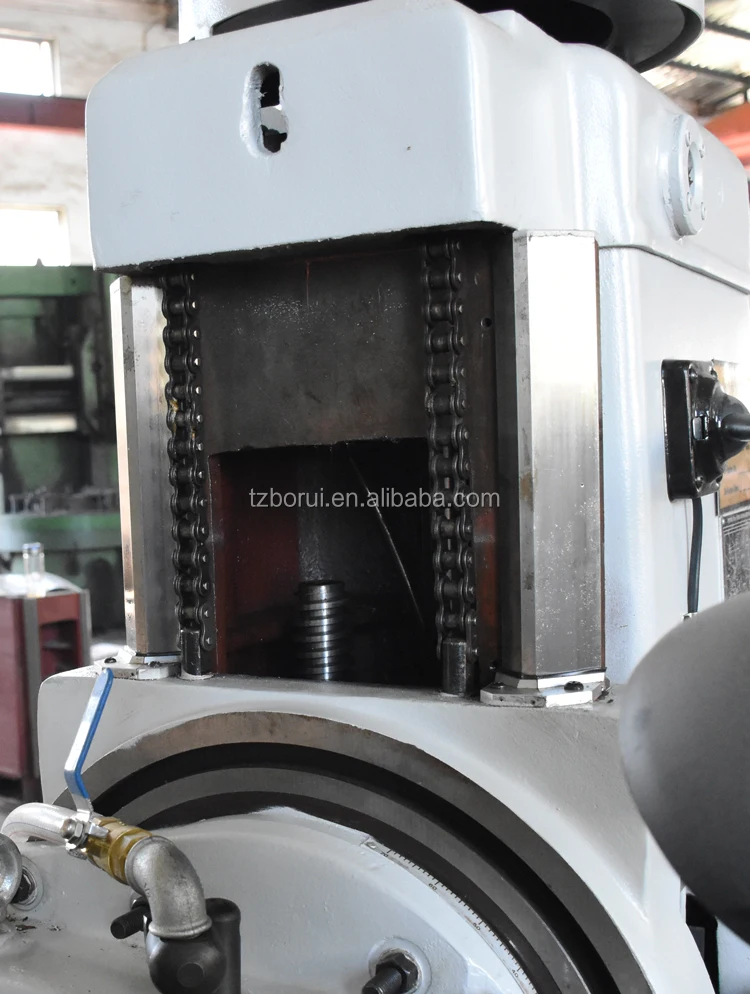

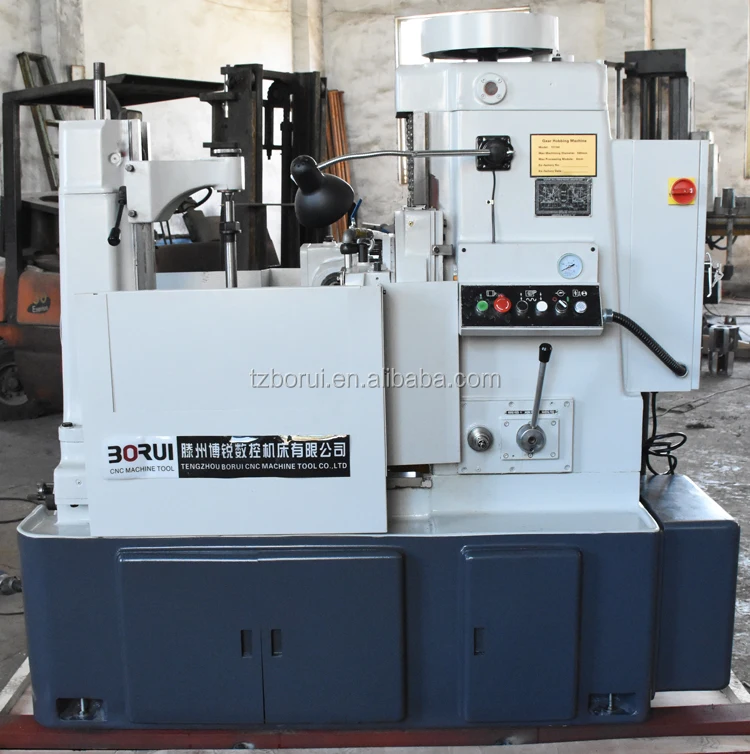

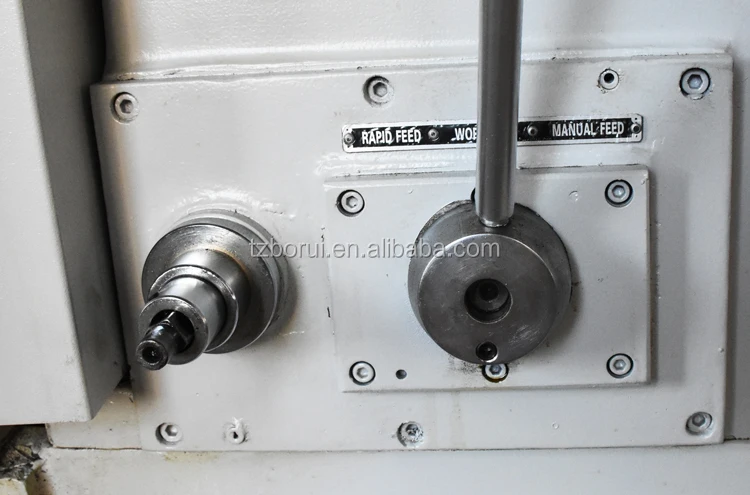

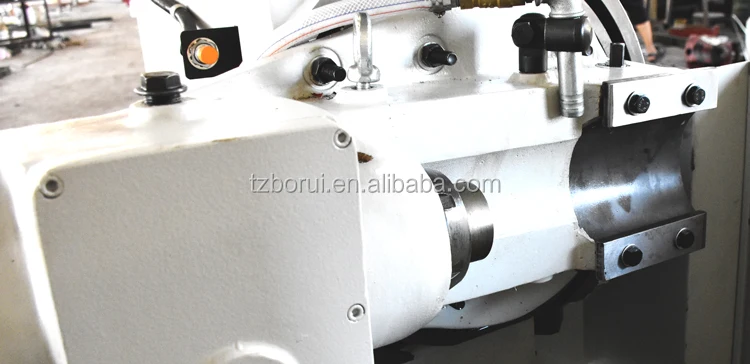

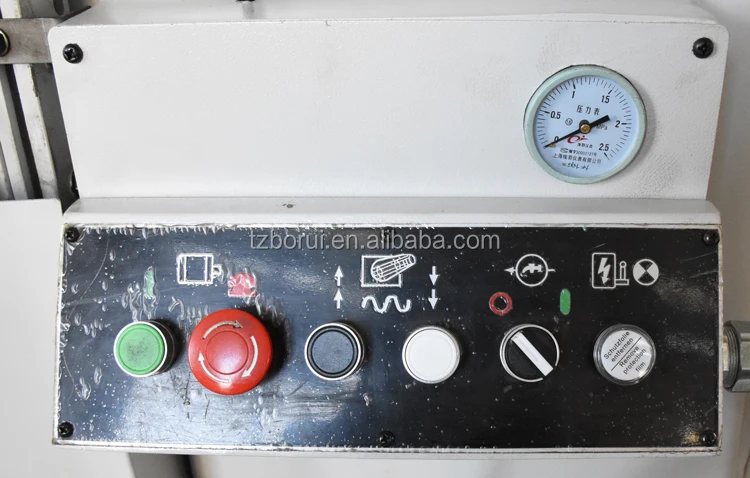

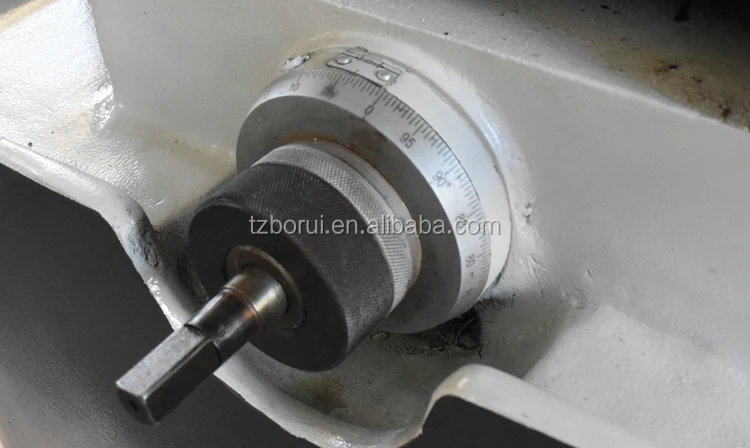

Detailed Images





















Related Products

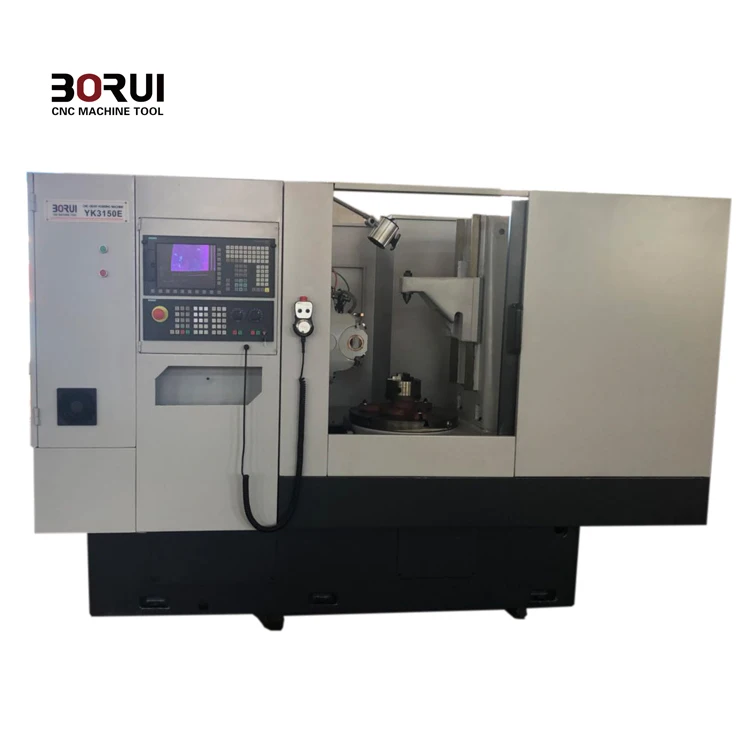

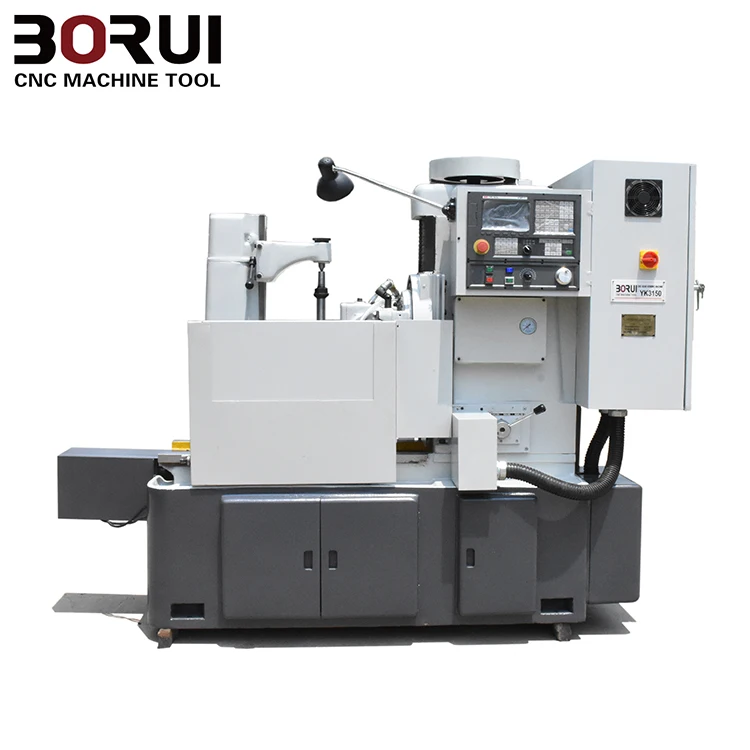

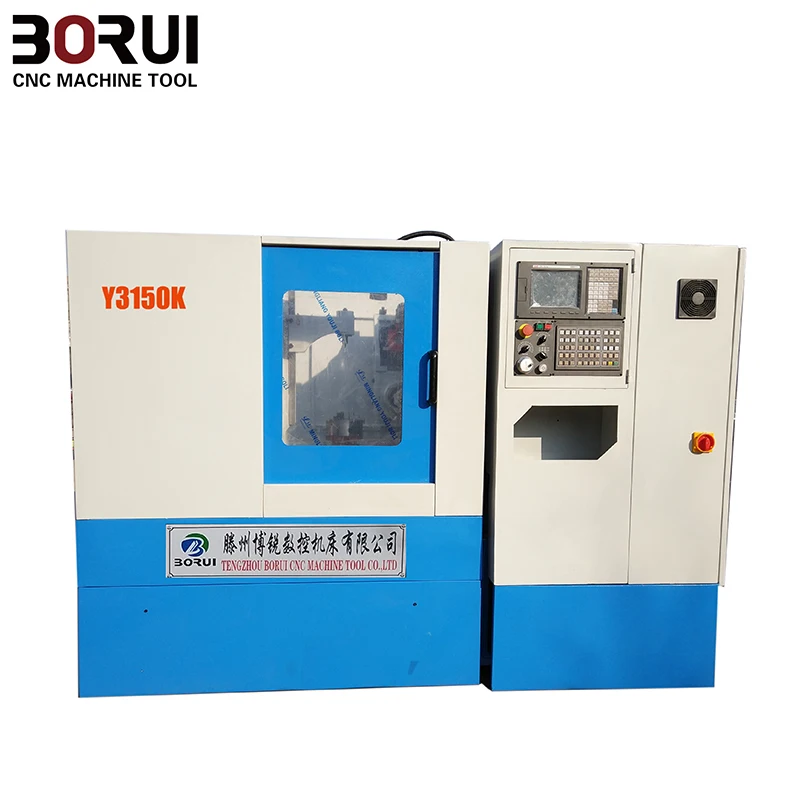

CNC GEAR HOBBING MACHINE Y3150K4 AXIS CNC GEAR HOBBING MACHINE YK3150E
CNC GEAR HOBBING MACHINE YK3150GEAR HOBBING MACHINE Y3150-3



Company Information

1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .


2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .



3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.



4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.



5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .



5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
