Semi-Automatic Sample Loom USB Interface To Share Designed Patters

Product details
Let-off:Manual;Take-up:Manual;
Selling Units:Single item;Certification:ISO;
Air pressure:0.45~0.8Mpa;Application:scientific research units, textile institutes;
Single package size:130X98X151 cm;Type:Dobby Weaving Machine;
Color selection:Manual;Reed width:16inch or 20inch;
Warranty:1 Year;Applicable Industries:Garment Shops,Machinery Repair Shops;
Single gross weight:200 KG;Weight:200Kg;
Condition:New;Power(W):A220V 50Hz, single-phase;
Power:A220V 50Hz, single-phase;Dimension(L*W*H):1300*980*1510mm;
Shedding Method:Dobby;Beat-up:Manual;
Air consumption:Max. 200L/min;Brand Name:Anytester;
Place of Origin:Anhui China;Shedding:Pneumatic & PLC control;
Production Capacity:200/YEAR;Package Type:Export Standard Wooden Case;
After-sales Service Provided:Video technical support,Online support;Package Preview:https://sc02.alicdn.com/kf/HTB1VWmPcRWD3KVjSZKPq6yp7FXa8.jpg_640x640.jpg;
Product Description

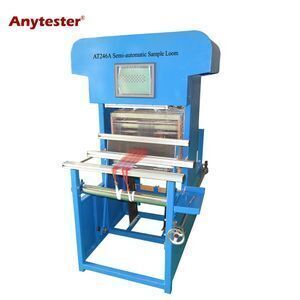

AT246A Semi-automatic Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of shedding mechanism, weft insertion mechanism, beating-up mechanism, take-up mechanism, let-off mechanism, weft selection mechanism, electrical control mechanism, etc. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.

Specification
Model
AT246A
Shedding Method
Dobby
Reed width
16inch or 20inch
No. of heald frame
16 (20 optional)
Let-off
Manual
Shedding
Pneumatic & PLC control
Color selection
Manual
Beat-up
Manual
Take-up
Manual
Air pressure
0.45~0.8Mpa
Air consumption
Max. 200L/min
Power
A220V 50Hz, single-phase
Dimensions
1300×980×1510mm (L×W×H)
Weight
Approx. 200kg

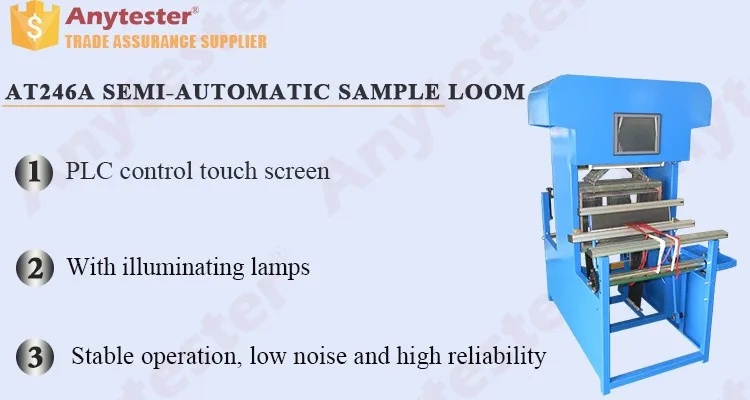

Features

★ PLC control touch screen with 2G memory capacity to store designed patterns;

★ Designable and editable patterns and USB interface to share designed patters;

★ Integrally welded by seamless rectangular steel pipe, reasonable construction and good rigidity;

★ Outer surface treated by baking varnish, good brightness and nice appearance;

★ Pneumatic Dobby shedding mechanism to avoid the disadvantage of easy to wear for traditional peg mechanical structure;

★ With illuminating lamps;

★ Stable operation, low noise and high reliability;

Packing & Delivery
Packaging
Size(cm)
130(L) * 98(W) * 151(D)
Weight
200Kg
Packaging Details
1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
Payment




Payment Item


T/T
EXW



30% T/T in advance, paid the balance before shipment

FOB

CFR(C&F)



30% T/T in advance,paid the balance against copy of B/L

CIF
30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)
30% T/T in advance,paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union
Amount lower than 50,000usd
Delivery Time
7~10 days after receiving payment for one container
