HD-SDI Slip Rings for 1080P,Coaxial,High Frequency ,MOFLON'S SLIP RINGS
-
Supplier: Shenzhen Moflon Technology Co., Ltd. -
Region: Guangdong, China -
Price: $75.00 /piece -
Min. Order: 1 piece
Product details
| Port: | shenzhen; | Rings: | 12; |
| Payment Terms: | Western Union,MoneyGram; | Place of Origin: | Guangdong China (Mainland); |
| HD-SDI: | 1; | Packaging Detail: | paper carton or wooden box; |
| Model Number: | MSDI212; | Brand Name: | MOFLON; |
| Supply Ability: | 1000 Piece/Pieces per Day; | Delivery Detail: | 7 days; |
Product Description

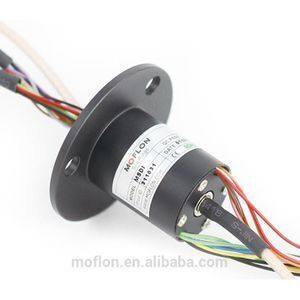

MSDI212 SLIP RIGNS
SLIP RING FOR HD-SDI/1080P,Coax rotary joint,High Frequency Transmitting, Manufactured by MOFLON.
1 channel HD-SDI(coaxial) + 12circuits * 2A(signal).
The price is only for reference. Prices are different of different models. Tell us the model, get exact price.
FAQ
| Frequency rate | DC-2.3GHz | Insertion loss | 0.65 dB /1GHz Max |
| Insertion loss typical | +/-0.05dB | Return loss | -18 dB / 1GHz Max |
| In put out put | RG -179/U | Max speed | 150RPM |
| Volt standing wave ratio | VSWR≤1.3 | wave ratio typical | +/-0.05 |
| Working life | 200million revolutions | Connector types | BNC / F |
| Impedance | 75 ohms | Rating Current | DC 1A Max |
+
| Rating voltage | 240 VDC/VAC | Contact material | Precious Metal:Gold-Gold |
| Dielectric strength | 600VDC@50Hz | Lead Wire | UL Teflon® Awg28 |
| Insulation resistance | 1000MΩ@500VDC | Lead Lengths | 250mm |
| Operating Temp. | -40°C to 80°C | Protection | IP51 |
| Mechanical vibratio | MIL-SID-810E | Humidity | 10% to 90% RH |
| Materials | Lead Free,RoHS compliant | CE Certified | YES |
