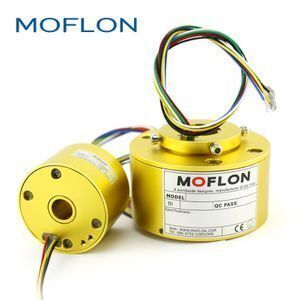

Moflon 360 rotating electrical connector slip ring with 2~96wires rotary joint assembly

Moflon 360 rotating electrical connector slip ring with 2~96wires rotary joint assembly

MT series through bore slip ring is mainly used for transmitting all kinds of signal and power circuits with a through bore, designed for through bore hydraulic or pneumatic rotating shaft installation.

Features
Uses fiber brush technology which offers several advantages over conventional
slip ring contacts including multiple points of contact per brush bundle
Bore size from 12.7 to 300mm
Standard, off-the-shelf
Gold plated ring and Gold alloy brush
Support power,signals transmitting
Rings combination is available

How to customize the slip rings?

1. What kind of media do you wanna to transmit?

A: Electricity, gas, Ethernet, fiber optic or hybrid slip rings.

2. For electricity, the details should be provided as below:

a. Total wires? The max current of each wire?

b. How many circuits for signal? The frequency and signal type?

c. Whether the signal is sensitive, if sensitive, does it need shielded?

3. For gas or liquid, the details should be provided as below:

a. What's gas do you need to transmit? Is air?

b. How much pressure?

c. What's size of each port? is G1/4"?

d. What is the maximum torque of slip ring that you can accept?

e. How to install? shaft mounting? flange mounting?  end of shaft mounting?

4. For Ethernet, the details should be provided as below:

a. 1000M or 100M?

b. Total wires? The max current of each wire?

c. How many circuits for signal? The frequency and signal type?

d. Whether the signal is sensitive, if sensitive, does it need shielded?

5. For fiber optic, the details should be provided as below:

a. Total wires?

b. Connector type?

c. Type of fiber optic?

d. If need electricity or signals, please answer the Q1.

6. What's the rotating speed and how long does it work continuously per day?

7. May i know the application area(working environment)of the slip ring first?
