Moflon Electric slip ring High current slip ring, 3 phase 30A each , Miniature , wind turbine slip ring

Product details
Conductor/wires/Phase:3;Supply Ability:1000 Piece/Pieces per Day;
Current:30A;Voltage:600 VDC/VAC;
Max speed:250RPM;Packaging Detail:Standard package or woodbox;
Delivery Detail:10days later after confirming received 100% payment;Port:Hongkong;
Housing Material:Plastic;Length:45mm;
Payment Terms:Western Union,MoneyGram;Certificates:CE/ROHS/UL/COC;
Torque:0.06N.m;Diameter:22.00mm;
Model Number:MW1330;Contact Material:Precious Metal:gold-gold;
Place of Origin:Guangdong China;Brand Name:MOFLON;



Electric slip ring manufacturer Moflon Large current slip ring, 3 phase 30A each , Miniature , wind turbine slip ring





MOFLON, focused on slip rings manufacturing for more than 10 years, Our slip rings having been successfully performing in industrial applications for over 10 years,performing in aerospace and military applications for over 5 years,Typical applications include robotics, packaging machines, medical equipment and a wide range of automation systems...









Product Description

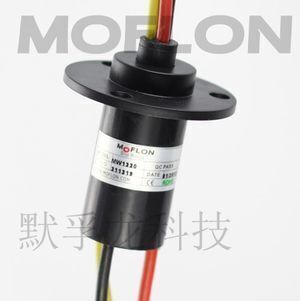

MW1330 silp rings, 3wires * 30Amp slip ring,manufactured by MOFLON.

OD 22mm(0.87") * Length 45mm(1.85"), 3Wires * 30A





Shared Specifications
Wires3Current30A
Voltage600 VDC/VACMax speed250RPM
Overall diameter22mm(0.87")Length45mm(1.85")
Contact MaterialPrecious Metal:gold-goldContact Resistance<80mOhm(AW12#,250mm)
Housing MaterialPlasticsTorque0.06N.m
Working lifedepends on working speedElectrical noise<10mΩ
Dielectric strength1000VDC@50HzLead WireUL Teflon® Awg12
Insulation resistance1000MΩ@500VDCLead Lengths250mm
Operating Temp.-40°C to 80°CProtectionIP51
Mechanical vibratioMIL-SID-810EHumidity10% to 90% RH
MaterialsLead Free,RoHS compliantCE CertifiedYES





  Notes:
1)The operational life of the unit is dependent upon rotational speed, environment and temperature.
2)Lead Wire size: 8A -> AWG16,15A -> AWG16,30A -> AWG12 colored code.
3)Electrical noise is dependent upon the rotating speed and current,voltage.





Standard Drawings for MW1330 SLIP RING:







Mounting for MW1330 SLIP RING:







Typical Application:

  • Small wind turbine.
  • Automation.
  • Cut equipments.
  • Rotary table
  • Robotics
  • Laboratory equipmen
  • Manufacturing and process control equipment
  • and so on...
  • if you want to use this series slip ring on your mechanism, pls contact us for more application

Packaging & Shipping

Packing:

Cardbord or wooden box





Certificates:



Reliable manufacturer, you best choice! Please do not hesitate to contact us.
