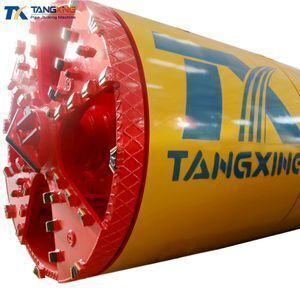

1500mm Earth balance pipe jacking machine/tunnel boring machine for sale

Product details
Package:wooden;Brand Name:Tangxing;
Packaging Detail:Standard export packing;Place of Origin:Anhui China;
Inner Diameter:1500mm;Certification:ISO;
Port:Shanghai;Soils:Normal soil, sand;
After-sales Service Provided:Field installation, commissioning and training,Field maintenance and repair service,Online support;Brand:Tangxing;
Supply Ability:20 Set/Sets per Month;Weight:12.5T;
Payment Terms:L/C,T/T;Applicable Industries:Construction works ,machinery;
Warranty:12 months;After-sales Service Provided:Overseas service center available;
Dimension(L*W*H):1820*4500mm;Condition:New;
Product Description

Main Features


1) Independent water injection and grouting system improves excavation soil condition applied to different ground..

2) Eco-friendly, less disturbtion to eviroment;

3) Applied for normal soil condition.

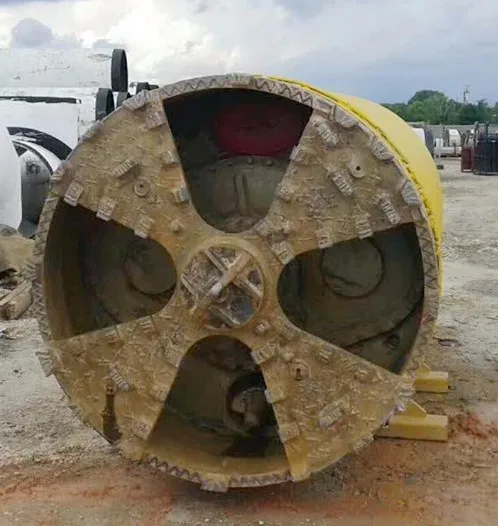

4)Central supported cutter ,compact and lightweight ,long service life,easy maintenance.

5)Screw conveyor transfers the soil in large quantity and conveyable grain size.



Specifications

Dimensions
Pipe Jacking Machine OD
1820mm
Length
4500mm

Cutter Head
Cutter Head Motor Power
2*30KW
Revolution Speed
2.6RPM
Rated Torque
220KN.m



Steering System
Cylinder No.
4
Thrust
80T*4
Max. Steering Angle
2.5°
Pump Station Max. Pressure
31.5MPa
Cylinder Stroke
60mm
Pump Station Motor Power
2.2kw

Screw Conveyor
Diameter
300 mm
Motor Power
15KW
Excavated Qty.
24M3/H
Total Weight
12.5T
Total Power
80KW
Control
Remote PLC Control(Touch Screen)
Soil
Normal soil, sand, clay
Certifications
Our Service

Pre-Sales Service

* Detailed analysis for geological conditions of individual projects
*Each machine is designed and customed according to project parameters,soil investigation report & customer request
*Professional advice from industry experts over 30 years
of work experience

After-Sales Service

*Geo-technics advise and consultation
* Machine on-site installation and systems debugging
*On-site machine operation training guidance.
* Engineers of overseas service machinery is available .
*Local spare parts warehouse

After-sales service team in Thailand

After-sales service team in Malaysia

After-sales service team in Singapore

After-sales service team in Malaysia

After-sales service team in Singapore

After-sales service team in China

After-sales service team of Tangxing in construction site

Warranty service of pipe jacking machine


*One year repair for the main part of the power system at the normal use,excluding man-made damage

*Six months repair and replacement for hydraulic parts

*Six months replacement for electrical parts

*excluding vulnerable parts: displacement sensor, direct ball valve and cutter)

Training Institution

Anhui Tangxing Trenchless Technology Training Institution .

TANGXING is the only appointed trenchless technoloty training institution of China by China society for trenchless technology (CSTT), special conduct pipe jacking operator expert training .

 Institution Overview


Professional theory & practice learning



Demo site practise learning



First semester operators graduate!



Second semester operators graduate!


Quotation Relevant

Good preparation saves work time.

"Please kindly offer below information before the quotation,
because the information is important for equip the suitable machine and effect the quotation."

1.The material of pipe:steel pipe? concrete pipe ? reinforced concrete pipe(RCP)? or Glass Fiber Reinforced Plastics pipe(GRP)? Or etc?

2.What's the dimention of pipe(Diameter *L)? What's the socket type of pipe? The drawing of pipe is best support if available.

3.The soil strata condition of project site.

4.The underground water level.

5.The length of single segment project,and the total length of project.

6.The dimention of working shaft ?
