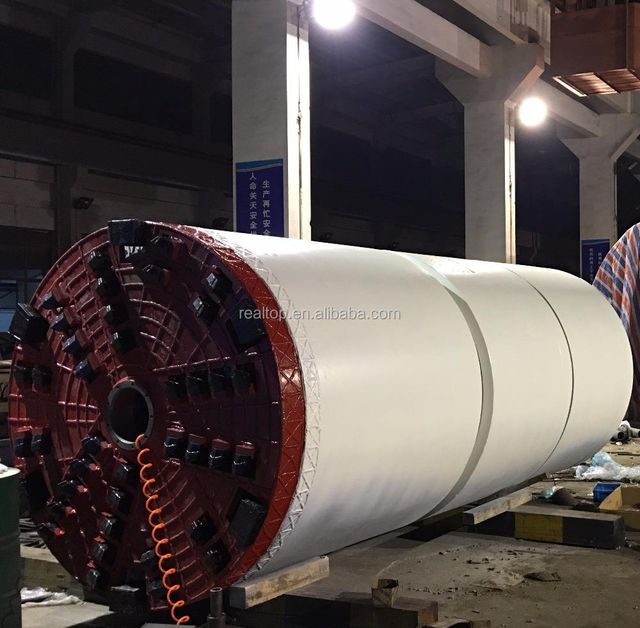

Underground engineering tunnel boring machinery (pipe jacking machine)

Product details
Dimensions (L*W*H):3000*1200*1200mmpayment terms:L/C, T/T
Origin:Hunan, Chinaweight:6000 kg
Certification:ISO9000Health status:new
port:ShanghaiSupply capacity:400 sets per year

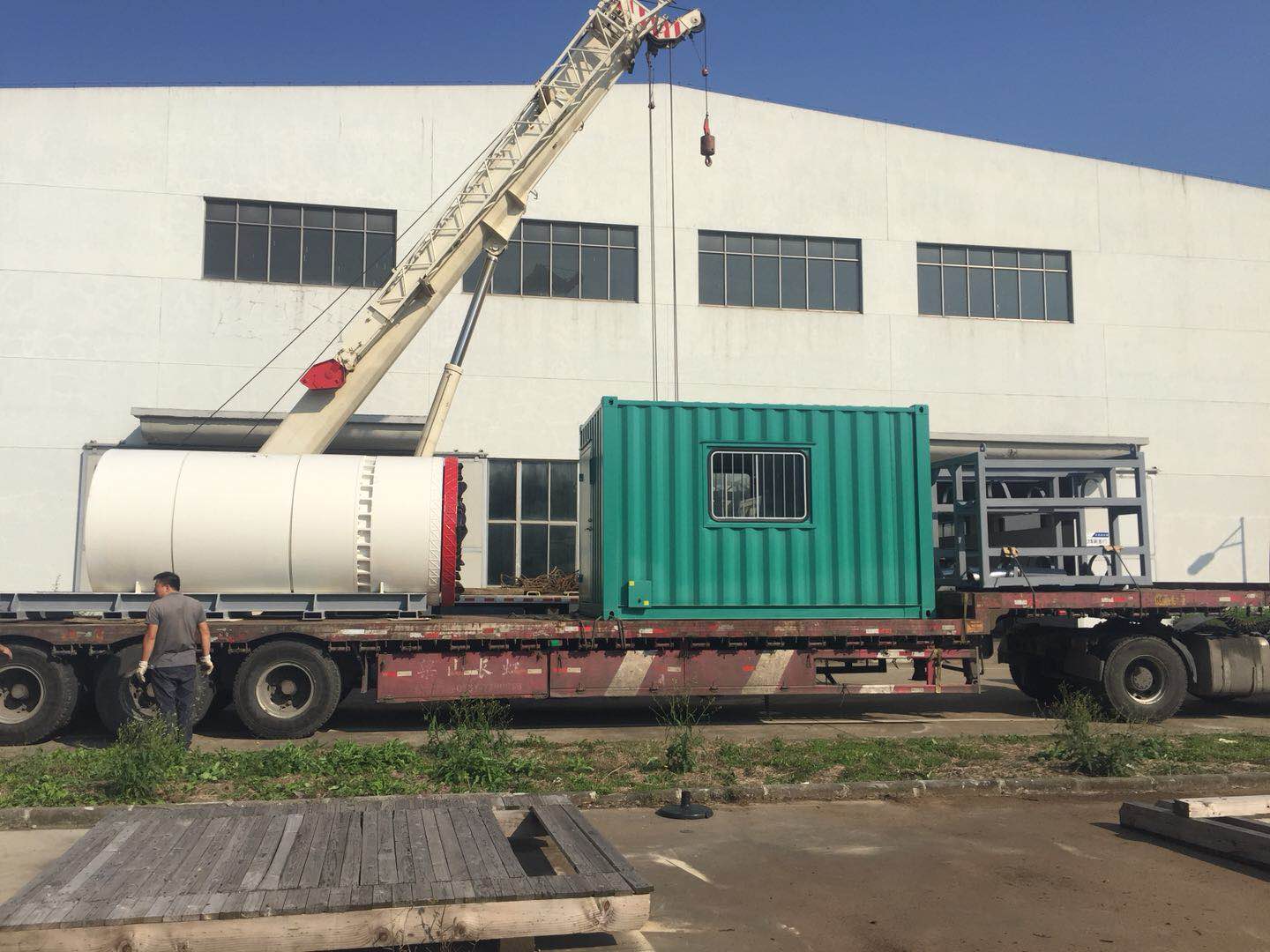

brand:RuituoPackaging Details:One set of bare packing needs 20ft FR or 40ft FR container to load the host, others are packed in wooden boxes
Warranty:12 monthsDelivery Details:40 working days
After-sales service provided:Engineers available to repair machinery overseasmodel:DG1000
color:white

Dear Madam/Sir

Thank you for your attention! I am Ms. Zhu Ailin from Ruitop, a professional manufacturer of pipe jacking machines in South China.

Our product advantages:

pipe jacking machine;
Suitable for underground trenchless pipeline laying;
Easy control on the ground;
continue working,
Fast and safe!

Diameter 250-3000mm

1. Introduction:

The remote control mud balance pipe jacking machine is a new type of advanced high-tech trenchless equipment.

It integrates multi-disciplinary technologies such as mechanical units, hydraulic systems, electrical controllers (including PLC), laser systems, and measuring devices.

In addition to high efficiency, there is no impact on ground transportation. In addition, it is good for the environment and can reduce construction costs.



2. Scope of application:

For trenchless underground pipeline laying projects, eg. Sewage, water supply, drainage works, cables, tunnels...


3. Specifications:

-3.1 Suitable for soft soil, clay, sandy soil, gravel soil, hard soil and other soil bodies;

-3.2 Strong crushing ability, large crushing size and quantity;

-3.3 It has an independent water injection and grouting system, especially the tool cleaning device, which is suitable for hard soil with large N value;

-3.4 The jacking speed is very fast, the theoretical maximum speed is 120mm per minute.

-3.5 High precision operation, adjust the direction up and down, left and right, max. The correction angle is 2.5 degrees.

-3.6 The jacking distance can be very long;

-3.7 The ground operating system is adopted, which is safe, intuitive and convenient!

-3.8 The structure is solid, easy to use and maintain, and it is easy to disassemble and assemble in the receiving tunnel of the working tunnel.



4.Hot-selling model technician parameters:



Model and parameters

DG1000-QNP

size

inner diameter (mm)

1000

Outer diameter (mm)

1220

Overall length (mm)

3800

main drive

Rated power (kW)

37

maximum. Torque (kN·m)

67

Number of revolutions (rev/min)

5.25

steering

steering cylinder

4

force per cylinder. /Oil pressure(kN)

800

stroke per cylinder. (mm)

80

Steering angle (°)

±2

internal hydraulic system

Rated power (kW)

1.5

Working pressure (MPa)

25

slurry system

Feed water pump rated power (kW)

number 22

Rated power of slurry pump (kW)

37

Side size line diameter

100

main jacking system

Rated jacking speed mm/min

0--80

Working pressure (MPa)

31.5

Rated jacking force kNm

2000×4

Speed ​​mode

Frequency Control

































































5. Delivery time:

Within two months after receiving the deposit;


6. After-sales service

We will send specialized technicians to the buyer's project site to operate the machines and train the operators for the first section of the project, usually 100m/150/200m etc. (free of charge)

Provide long-distance service (for a fee)!


7. Information required for quotation:

7.1 The total length of the project, a certain distance, and how many sections will be constructed?

7.2 Pipe type: concrete or steel pipe, etc., the single length of the pipe? OD and ID?

7.3 Project information: water supply, sewage project?

7.4 groundwater level;

7.5 Soil type? A sol report is required.







Thank you for your information! Your reply will be replied within 1 working day!
