Micro tunnel boring machine, 1800 mm pipe suction machine

Supplier: Realtop Heavy Industry Co., Ltd.
Region: Hunan, China
Contact: Ms Eva Liu
Price: $120000.00 /set
Min. Order: 1 set

Click here to contact

Product details

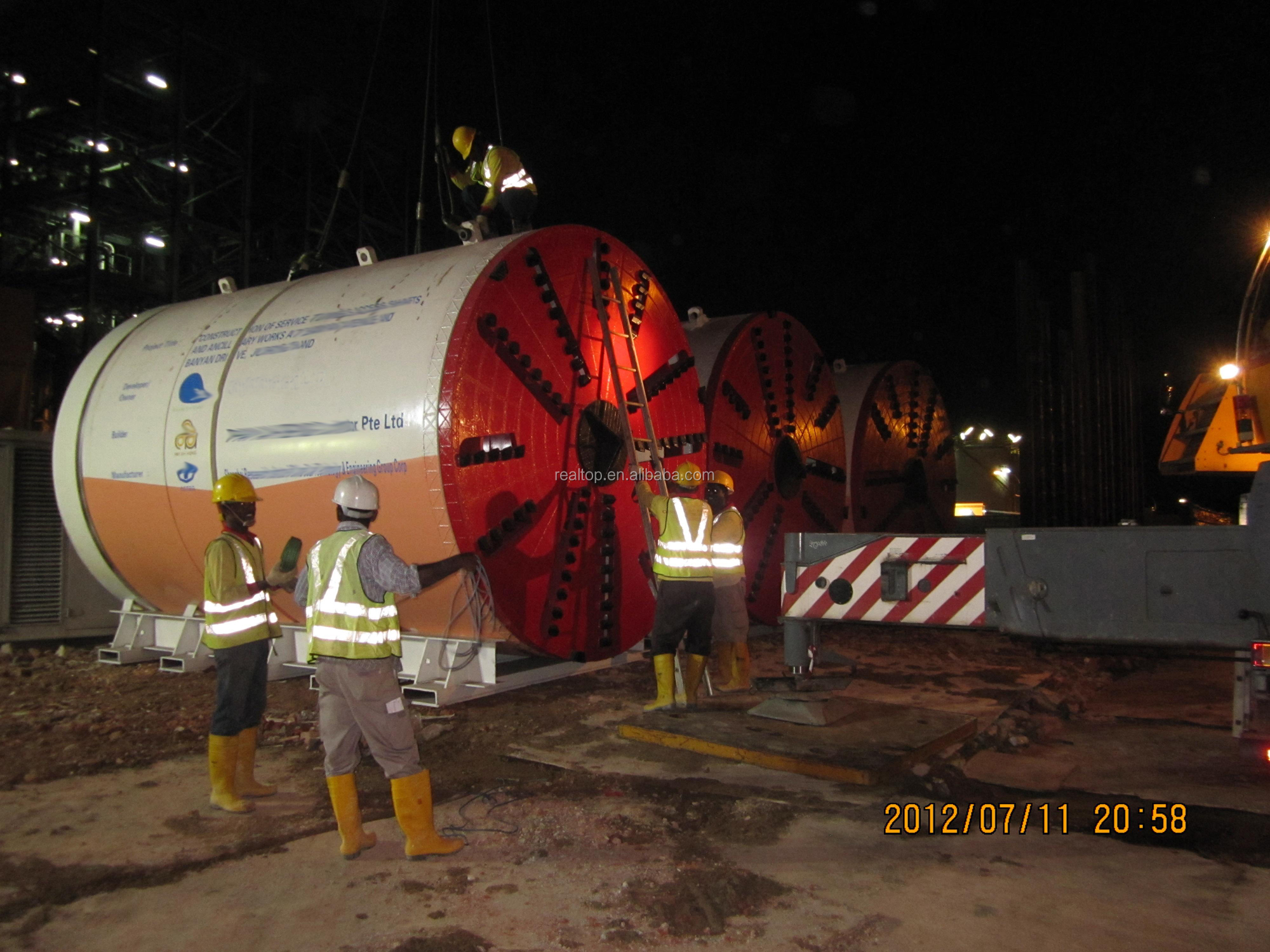

work experience:	More than 20 units apply in Singapore	Core Components Warranty:	1 year
Warranty:	1 year	Showroom location:	not any
Certification:	International Organization for Standardization	weight:	10 tons to 19 tons
Packaging Details:	Packaging according to customer needs.	place of origin; place of origin:	Hunan, China
pipeline:	Concrete, Sectional, Steel, HDPE, Pipe Jacking	Applicable industries:	Construction Engineering, Energy and Mining
soil:	Clay, soil, silt, coal mines are fine	Supply capacity:	30 sets per year
Core components:	PLC, engine, bearing, gearbox, motor	Curve topping:	yes, experienced
Local service location:	not any	Packaging Preview:
color:	According to customer	After Warranty Service:	Video technical support, online support, spare parts, on-site maintenance and repair services
payment terms:	letter of credit, wire transfer	type:	Mud Balance Pipe Jacking Machine
brand:	real estate	usage:	Sewage, tunnels, coal mines, etc.
Marketing Type:	Hot Products of 2019	Torque:	420KNM
Mechanical test report:	if	Video external inspection:	if
Trenchless:	trenchless pipe jacking	After-sales service provided:	Engineers can go overseas to service machinery, video technical support, on-site installation and commissioning training, on-site maintenance and repair services, free spare parts, online support
Dimensions (LWH):	2200*4000mm	port:	Port of Shanghai, China
Health status:	new

Product Description

Applications

1. Introduction:
The remote control mud balance pipe jacking machine is a new type of advanced high-tech non-heading equipment.
It integrates multi-disciplinary technologies such as mechanical units, hydraulic systems, electronic controllers (including PLC), laser systems, and measuring devices.
In addition to being efficient, it has no impact on ground traffic. In addition, it is good for the environment and can reduce construction costs.
2. Scope of application:
For trenchless underground plumbing projects, eg. Sewage, water supply, sewage works, cables, tunnels...

3. Specifications:
-3.1 It is suitable for a wide range of soils such as soft soil, clay, sandy soil, gravel soil and hard soil.
-3.2 Strong crushing ability, large crushing size and quantity.
-3.3 It has independent water injection and grouting system, especially the tool cleaning device; it is suitable for hard soil with large N value.
-3.4 The jacking speed is very fast, the theoretical maximum speed is 120mm per minute.
-3.5 High operation precision, adjust the direction up, down, left, right, max. The correction angle is 2.5 degrees.
-3.6 The jacking distance can be very long.
-3.7 Using ground operating system, it is safe, intuitive and convenient!
-3.8 The structure is firm, easy to use and maintain, and easy to disassemble in the receiving tunnel of the working tunnel.

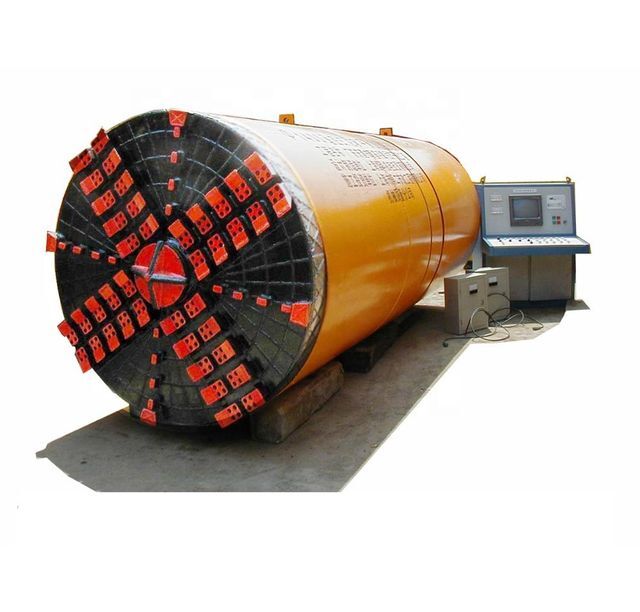

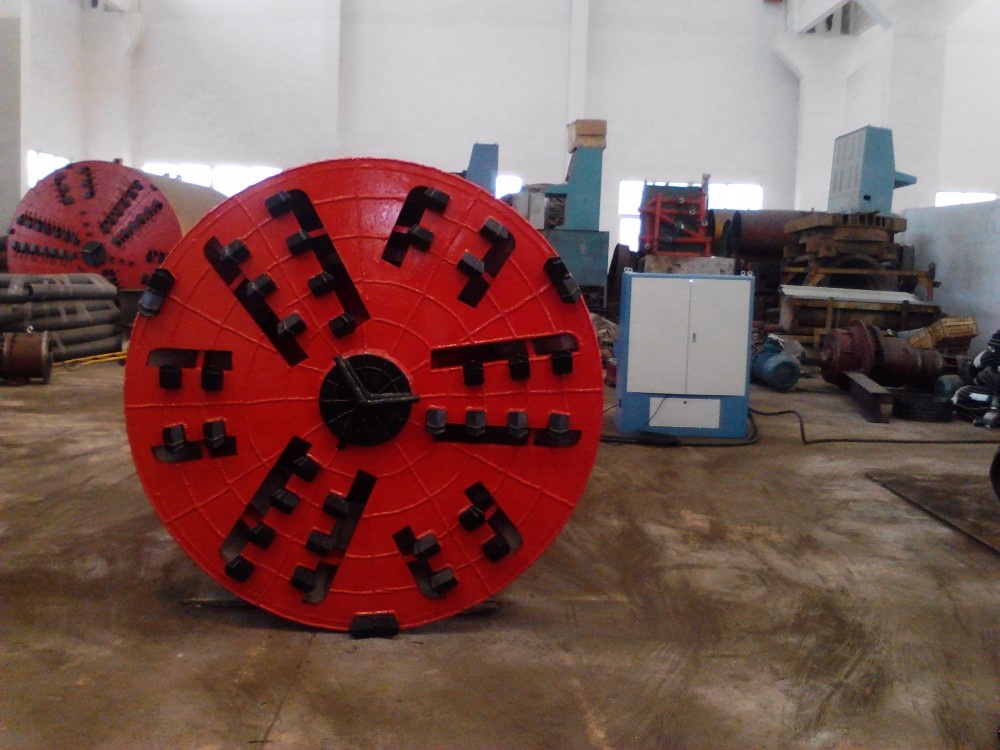

Model: DG1800-QNP		scope
Host size	Inner diameter (mm)	1800
	Outer diameter (mm)	2160
	Overall length (mm)	4000
cut part	Motor power (kW)	30kw*3pcs
	Cutter Torque (kN m)	430
	Cutter speed (r/min)	2
rectifier cylinder	quantity	4
	Thrust (kN)	1500
	Stroke(mm)	80
	Correction angle (°)	±2
Hydraulic system	Motor power (kW)	2.2
	Working pressure (MPa)	25
Slurry system	Feed water pump power (kW)	37
	Mud pump power (kW)	45
	Side mud pipe diameter (mm)	150
main jacking system	Jacking speed(mm/min)	0--80
	Working pressure (MPa)	31.5
	Rated thrust force (kNm)	2000×4
	Timing method	Using the inventor's frequency control
	Total power (KW)	22KW+15KW

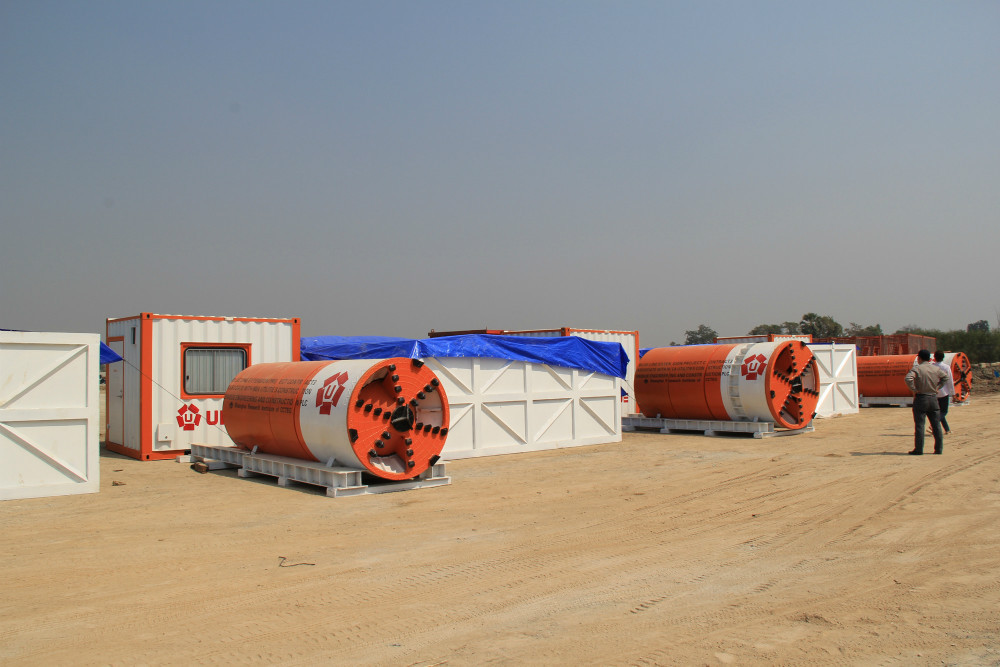

main feature

Our product advantages:
Pipe jacking machine.
Suitable for trenchless underground pipeline laying.
Easy control on the ground, continuous operation underground.
Fast and safe!
Diameters from 250-5000 mm.
