Inner climbing concrete placing boom

Supplier: Realtop Heavy Industry Co., Ltd.
Region: Hunan, China
Contact: Ms Eva Liu
Price: $25000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight:	21tons;	After-sales Service Provided:	Engineers available to service machinery overseas;

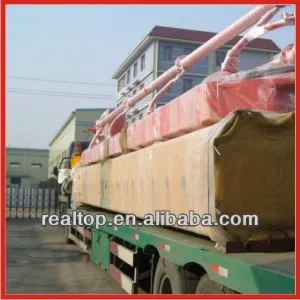

Packaging Detail:	Wooden box etc..;	Dimension(LWH):	Radius 28m * height 23m;
Power(W):	15 KW;	Payment Terms:	L/C,T/T;
Certification:	SGS;	Place of Origin:	Hunan China (Mainland);
Supply Ability:	200 Set/Sets per Month;	Driving slewing:	Hydraulic driving slewing;
Condition:	New;	Port:	Shenzhen port;
Delivery Detail:	7~ 20 days;	Brand Name:	REALTOP;
Voltage:	380V/50HZ;	Model Number:	HG28C;
Warranty:	12 Months;

Product Description

Application

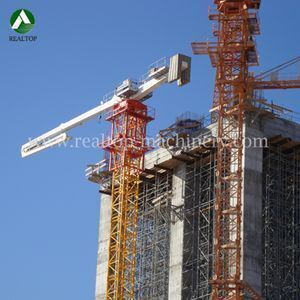

Self-climbing type, climbing by floor frame or by shaft frame. Mainly used for concrete placing of construction project, including civil construction, plant construction, bridge construction, beam yard, nuclear power plant, infrastructure, etc.

Charactics
1) Max. placing radius: 28 m, 4 sections booms.

2) Without counterweight.
3) Control: wire and wireless.
4) Installation: freestanding , floor climbing, elevator shaft climbing.

5) Slewing base same as zoomlion and sany.

Advantages:
1) Stable quality: main components from OMRON,SCHNEIDER,REXROTH.
2) No counterweight.

3) Proportion valves.
4) Columns, platform, main parts common with ZOOMLION, means ZOOMLION booms can be installed in my columns, etc.

Model		HG28C
Delivery pipe dimension (outside diameter×thickness) (mm×mm)		Φ133×4
Delivery hose dimension (inside diameter×length) (″×mm)		5″×3000
Radius of placing boom(m)		28
Stationary height(to the joint between the end of the boom and Swivel table (m)		23.97
Four hydraulic foldable arms	1st section	8.55m
	2nd section	7.27m
	3rd section	6.11m
	4th section	6.07m
Boom articulation	1st section	-4.2°~+82.5°
	2nd section	0°~180°
	3rd section	0°~180°
	4th section	0°~180°
Slewing range(°)		360
Power of motor(kW)		15
Pressure of hydraulic system (MPa)		30
Type of hydraulic oil		ESSO NUTO H46
Interval of climbing frame	Climbing	3.0~4.2
	Placing concrete	6.0~8.4
	Resting
Mode of operation		1.cable remote control 2.radio remote control
Power		380V/50Hz
Wind speed	Placing concrete	≤60 km/h
	Climbing	≤28 km/h
Working temperature		0~48℃
