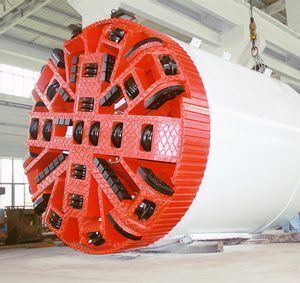

REALTOP ID3000 OD3650 Slurry SHIELD for Mixed and Rock Ground Conditions

Product details
Place of Origin:Hunan China;After-sales Service Provided:Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support,Engineers available to service machinery overseas;
Port:SHANGHAI;Type:slurry balance pipe jacking machine;
Warranty:13month aginast BL date;Certification:SGS;
Model:ID1200mm and other diameters TBM machine;Payment Terms:L/C,T/T;
Curve jacking:ok;Weight:MAX. PART'S WEIGHT IS 70ton;
Job experiences:more than 20units in Singapore;Supply Ability:20 Set/Sets per Year;
Applicable Industries:Construction works ;Soil:rock,clay,sany ,soil,all ok;
Dimension(L*W*H):3000mm~3800mm in length;Packaging Detail:Tunnel boring machine in nude packing; Shipment by sea;
Condition:New;Trenchless:trenchless pipe jacking;
Pipe:concrete,steel,HDPE pipe jacking;Inner Diameter:ID1200mm and other diameters TBM machine;
Color:up to customers;Brand Name:Realtop;
ID1200mm and other diameters TBM machine
Company Information



1. Realtop has more than 10 years experience on manufacturing Pipe Jacking Machinery(TBM),

2. Remote-controlled   Tunnel boring machine is a new advanced non-digging-equipment with high technology.

3. It combines multi-disciplinary technologies in one, such as the machinery units, hydraulic system, electric controller   (including PLC), Laser system, measuring device, etc.

4.  Besides the high efficiency, it also has effect on the traffics on surface. Furthermore, it is good for the environment, and can lower the cost of the construction.  Tunnel boring machine

5.  Projects in Singapore,Thailand,Hongkong,etc.. Export to Singapore from 10years ago;


Our Services

1. On site service support;


Product Description

Please refer to ID3000 Slurry SHIELD for Mixed and Rock Ground Conditions' technician details as below,





Model

DGR3000-QNP

General Characteristics

Inner Diameter (mm)

3,000

Outer Diameter (mm)

3,650

Total Length (mm)

9,500

Design pressure

4 bar

Shield Features

Anti-Roll System

Segment

Inner Diameter (mm)

3,000

Outer Diameter (mm)

3,500

Segment Thickness (mm)

250

Segment width (mm)

1,000

Ring configuration

6+0

Shield Tail Seal



Seal type

Steel wire brush seal and grease seal

Quantity

3

Cutterhead

Motor Power (kW)

75*5

Torque (kN·m)

895

Rotating Speed (r/min)

0-5

Outer Diameter (mm)

3,700

Speed Adjustment Method

VFD

Steering Jack

Quantity

8

Thrust Force (kN)

1470

Stroke (mm)

150

steering Angle (°)

±2

Hydraulic System

Motor Power (kW)

7.5

Working Pressure (MPa)

31.5

Slurry System

Feed pump(1)(kW)

90

Feed pump(2)(kW)

45

Feed pump(3)(kW)

45

Tunnel Pump(1)(kW)

90

Tunnel Pump(2)(kW)

55

Tunnel Pump(3)(kW)

55

Shaft Pump(kW)

110

Inner Diameter of the pipes (mm)

200

Speed Adjustment Method

VFD

Main Thrust System

Thrust Speed (mm/min)

0~80

Rated Pressure (MPa)

31.5

Rated Thrust Force (kN·m)

980 *12

Quantity of Cylinder

12

Stroke of Cylinder (mm)

2150

Main Pump Power (kW)

30

Vice Pump Power (kW)

30

Speed Adjustment Method

VFD

Segment Erector System

Turning Angle (°)

±200

Rotary speed (r/min)

0-2.2

Horizontal displacement(mm)

1250

Vertical displacement(mm)

950

Clamping stroke(mm)

50

Rated Pressure (MPa)

31.5

Pump Power (kW)

30

Power supply system

power supply voltage (V)

10000

power supply capacity (kVA)

630*2

Battery locomotive

Traffic Volume (ton)

6

Track gauge (mm)

610(24”)

Auxiliary system

Bentonite equipment

2x500L Colloidal mixers/pumps.

Automated System Inject though shield probe holes.

Grouting

2 Component ,Through shild tail

Face Support

Closed cutterhead w. appr. ~30% openings. Single manlock, double chamber.

Compressor

4m3/min (140ft3/min) breathable air

Emergency Generator

50kVA

Safety

Fire extinguisher,

Emergency lighting





Product Description







Packaging & Shipping

 As  below the loading photos for sea shipments  Tunnel boring machine

  Tunnel boring machine
