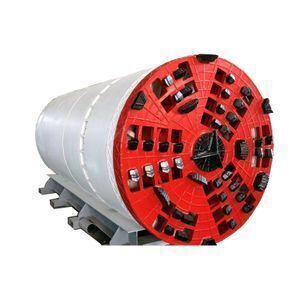

ID1800 pipe jacking machine for sale

Supplier: Realtop Heavy Industry Co., Ltd.
Region: Hunan, China
Contact: Ms Eva Liu
Price: $550000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Inner Diameter:	1800mm Tunnel Boring Machine;	Condition:	New;
Soil:	bangkok clay, silty clay;	Weight:	26tonnes;
Dimension(LWH):	390022002400mm;	Certification:	SGS;
Port:	Shanghai;	Pipe:	concrete pipe;
Job experiences:	more than 40units in Singapore, Thailand and Hong Kong;	Payment Terms:	L/C,T/T;
Place of Origin:	Hunan China;	Brand Name:	Realtop;
Applicable Industries:	sewage discharge, construction trenchless pipeline;	Warranty:	life time service support;
Power:	37kw3 in cuting parts,45kw1 and 37kw*1 in slurry in& out system;	Model:	DG1800QNP;
After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Online support;	Packaging Detail:	Shipment by sea, nude packing.;
After-sales Service Provided:	Engineers available to service machinery overseas;	Supply Ability:	400 Set/Sets per Year;
Type:	slurry balance;	Curve jacking:	ok;

Company Information

1. Realtop has more than 10 years experience on manufacturing Pipe Jacking Machinery(TBM),

2. Remote-controlled Slurry Balance microtunneling machine for sale is a new advanced non-digging-equipment with high technology.

3. It combines multi-disciplinary technologies in one, such as the machinery units, hydraulic system, electric controller (including PLC), Laser system, measuring device, etc, curve jacking;

4. Besides the high efficiency, it also has effect on the traffics on surface. Furthermore, it is good for the environment, and can lower the cost of the construction.

5. Projects in Singapore,Thailand,Hongkong,etc.. Export to Singapore from 10years ago;

Our Services

1. On site service support;

Product Description

we could supply microtunneling machine for sale model from ID from 250mm to 5000mm, customer-built size ok, not only for round shape and rectangle shape.

Two hot models for your reference: DG1800QNP

Model		DG1800-QNP
Dimensions	Inner Diameter (mm)	1,800
	Outer Diameter (mm)	2,190
	Total Length (mm)	4,000
Cutting Part	Motor Power (kW)	37*3
	Cutterhead Torque (kN·m)	424
	Cutterhead Rotating Speed (r/min)	0-3.5
	Timing Way	VFD
Oil Cylinder of Rectifying	Quantity	8
	Thrust Force (kN)	784
	Stroke (mm)	100
	Rectifying Angle (°)	±2
Hydraulic System	Motor Power (kW)	3
Hydraulic System	Working Pressure (MPa)	25
Slurry In & Out System	Charge pump (kW)	45
	Shaft Pump(kW)	55
	Timing Way	VFD
Main Jacking System	Jacking Speed (mm/min)	0~80
	Rated Pressure (MPa)	31.5
	Rated Jacking Force (kN·m)	1,960 *6
	Main Pump Power (kW)	22
	Timing Way	VFD
Shaft Size	Jacking Shaft( L*W)(mm)	7,000*4,000
Shaft Size	Receiving Shaft( L*W)(mm)	4,500*3,000
