For sale: 3500mm machine without underground trench, machine for extracting tunnel pipes

Click here to contact

Product details

After-sales service provided:	Provide overseas service center	place of origin; place of origin:	Anhui, China
brand:	Tang Xing	work experience:	Underground Tunnel Construction
Showroom location:	India, Russia, Thailand, Malaysia	soil:	gravel, rock
Packaging Details:	Standard export packaging	Video external inspection:	if
Core components:	PLC, motor	usage:	Tunnel, pipe jacking
payment terms:	letter of credit, wire transfer	type:	Hydraulic pipe jacking machine
Marketing Type:	normal product	diameter:	3500mm
pipeline:	RCP, glass fiber reinforced plastic, steel pipe	Trenchless:	trenchless pipe jacking
weight:	75 kg	Dimensions (LWH):	4180*5433mm
Applicable industries:	construction project	Supply capacity:	10 sets per month
pack:	wooden	port:	Shanghai
Mechanical test report:	if	Health status:	new
Warranty:	12 months, 1 year	Core Components Warranty:	1 year

Product Description

1) Specially designed for gravel and rock (up to 150MPa)

2) Easy access to the face for maintenance and repair work.

3) Through the rotation of the cutter head, the stones or obstacles entering the cone of the crusher are crushed to a transportable particle size.

Long distance lift.

4) Data collected and controlled by computers.

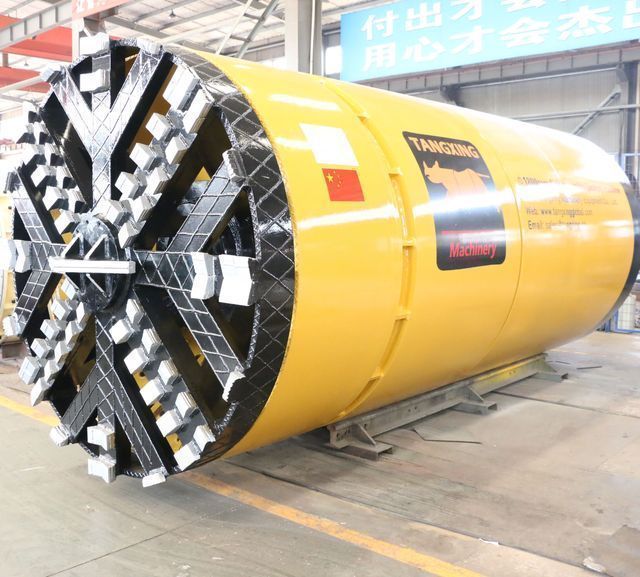

3500MM Rock Pipe Jacking Machine Specifications
the inside diameter of	￠3500mm
Outer diameter*length	￠4180×5433mm
cutter	Motor Power	37*6kW
		rated. torque	815 KN.M
		revolution	0--2.5 turn
steering system	Thrust*Quantity	200T*8
		angle	2.5°
		Motor Power	7.5KW
jacking cylinder	Thrust*Quantity	200 tons*8
		stroke	2500/3000/3500 mm
		pressure	31.5 MPa
mud pipe	diameter	6 inches
total machine power			240KW
