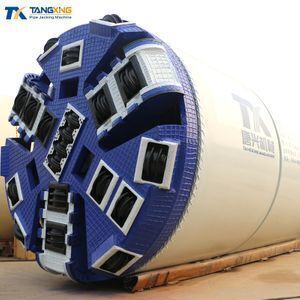

2400mm Rock pipe jacking machine/tunnel boring machine for sale

Product details
Usage:Tunnel, pipe jacking;Dimension(L*W*H):2920*5600mm;
After-sales Service Provided:Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Online support;After-sales Service Provided:Overseas service center available;
Weight:54ton;Pipe:RCP, GRP, Steel Pipe;
Port:SHANGHAI;Warranty:12 months;
Package:Wooden;Application:Underground tunnel pipe laying;
Supply Ability:20 Set/Sets per Month;Trenchless:Trenchless Pipe Jacking;
Packaging Detail:Standard export package;Condition:New;
Place of Origin:Anhui China (Mainland);Certification:ISO;
Brand Name:Tangxing;Diameter:2400mm;
Payment Terms:L/C,T/T;Type:Hydraulic Pipe Jacking Machine;
Job Experiences:Underground tunnel construction;Soil:Gravel ,Rock;
Product Description

Product Application

1)Designed for gravel and rock (up to 150MPa)

2)Convienent access to the tunnel face for maintenance and repair work.

3)Through cutter head rotation,stones or obstructions entering the crusher cone are crushed to a converyable grain size.

Long distance jacking.

4)Data collected and controlled by computer.

SPECIFICATIONS FOR 2400MM ROCK PIPE JACKING MACHINE
Inner Diameter
¢2400mm
OD*Length
¢2920×5600mm

Cutter
Motor Power
6*30 KW
Rated. Torque
477 KN.M
Revolution
3.6 RPM

Steering System
Thrust*Qty
120T*8
Angle
0-2.5°
Motor Power
4 KW

Jacking Cylinder
Thrust*Qty
200 T*6
Stroke
2500/3000/3500 MM
Pressure
31.5 MPA
Slurry Pipe
Diameter
6 INCH
Machine Total Power
190 KW
Project cases
Certifications
Our Company

Our company was established in Jan,2005,which is a high-tech enterprise concentrates on manufacturing and designing trenchless pipe jacking machine and provides integral solutions of trenchless engineering technology and equipment.Tangxing Machinery integrates R&D,design,manufacturing and sales for variety types of pipe jacking machines or Tunnel Boring Machines:Slurry balance series,Earth balance series,compound with Slurry&Earth,Open-face,Hard rock series,Rectangular series and Microtunneling machines,of which diameter ranges from 250mm to 4500mm and applied to different kinds of soil condition.Our pipe jacking machines are widely applied to pipeline laying,traffic track ,pipeline reconstruction ,projects crossing river or highway,such as drinking water pipe network,sewage pipe network,natural gas pipe network reconstruction projects in China and overseas,and we also set up sales and service network in the Middle East,Africa,Australia,Singapore,Malaysia,Indonesia,Thailand,Philippines etc.Tangxing Machinery supply a higher quality service with more cautious attitude,advanced technology and better quality all the time,and we are all on the way all the times, aim to support you breakthrough every project, your success.

Our Service

Pre-Sales Service

* Detailed analysis for geological conditions of individual projects
*Each machine is designed and customed according to project parameters,soil investigation report & customer request
*Professional advice from industry experts over 30 years
of work experience

After-Sales Service

*Geo-technics advise and consultation
* Machine on-site installation and systems debugging
*On-site machine operation training guidance.
* Engineers of overseas service machinery is available .
*Local spare parts warehouse

After-sales service team in Thailand

After-sales service team in Malaysia

After-sales service team in Singapore

After-sales service team in Malaysia

After-sales service team in Singapore

After-sales service team in China

After-sales service team of Tangxing in construction site

Warranty service of pipe jacking machine


*One year repair for the main part of the power system at the normal use,excluding man-made damage

*Six months repair and replacement for hydraulic parts

*Six months replacement for electrical parts

*excluding vulnerable parts: displacement sensor, direct ball valve and cutter)

Training Institution

Anhui Tangxing Trenchless Technology Training Institution .

TANGXING is the only appointed trenchless technoloty training institution of China by China society for trenchless technology (CSTT), special conduct pipe jacking operator expert training .

Institution Overview


Professional theory & practice learning



Demo site practise learning



First semester operators graduate!



Second semester operators graduate!


Quotation Relevant

Good preparation saves work time.


"Please kindly offer below information before the quotation,
because the information is important for equip the suitable machine and effect the quotation."

1.The material of pipe:steel pipe? concrete pipe ? reinforced concrete pipe(RCP)? or Glass Fiber Reinforced Plastics pipe(GRP)? Or etc?

2.What's the dimention of pipe(Diameter *L)? What's the socket type of pipe? The drawing of pipe is best support if available.

3.The soil strata condition of project site.

4.The underground water level.

5.The length of single segment project,and the total length of project.

6.The dimention of working shaft ?
