5KW ON-GRID SOLAR/WIND SINGLE PHASE INVERTER - HYBRID INVERTER - GINLONG INVERTER MANUFACTURER

Supplier: Qingdao Greef New Energy Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms Christina Lei
Price: $1200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Type:	DC/AC Inverters;	Mppt Efficiency:	>99.9%;
Intergrated DC swich:	opotion;	Output Power:	2kW 3kW 4kW 5kW;
Port:	Qingdao;	grid monitoring:	Yes;
output overvoltage protection-varistor:	Yes;	ground fault monitoring:	Yes;
Brand Name:	GINLONG;	Place of Origin:	Shandong China;
Output Current:	Adjustable;	DC reverse-polarity protection:	Yes;
Model Number:	GCI;	Packaging Detail:	Inner Foam+Plywooden case;
Output Voltage:	180-270Vac(Adjustable);	Output Frequency:	50/60HZ;
Payment Terms:	T/T,Western Union,MoneyGram,Alibaba Trade Assurance;	Supply Ability:	400 Set/Sets per Month;
AC shor circuit protection:	Yes;	Islanding protection:	Yes;
Size:	339565164;	Output Type:	Dual;
Temperature protection:	Yes;	Delivery Detail:	25 Days after received deposit;
AC output overcurrent protection:	Yes;	Weight:	30kg;
Input Voltage:	30-400V(Adjustable);

Product Description

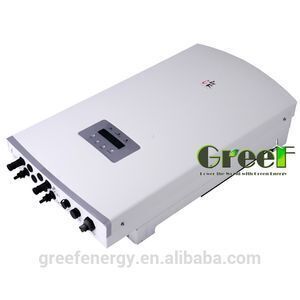

2kW 3kW 4kW 5kW on-grid Invertor is one of the crucial parts in the wind and solar hybrid system to feed the electricity to the public grid. Thanks to its new technology and novel algorthm, GCI series grid tie inverters are among the most efficient and reliable grid tie inverters in the world.

Advantages:

Over 97.5% Max. Efficiency

Ultra wide input voltage range

Controlled PWM inverter technology

Ultra wide input voltage range

Precise MPPT algorithm

IP65, visually pleasing for domestic environment

RS 485, WIFI/GPRS (optional) interface

Wifi and monitoring app available

40 point programmable, linearly extrapolated power curve, via inverter display, to match the output of a specific wind turbine.

Ultra wide input voltage range from 30V up to 810V.

Operation temperature from -25°C to 50°C.

Compact and light design, one-person easy installation.

5 years standard warranty, 10 years optional upgrade

SPECIFICATIONS

Model	GCI-2K-H	GCI-3K-H	GCI-4K-H	GCI-5K-H
Energy source	Wind channel + PV channel
Rated output power	2kW	3kW	4kW	5kW
Max. transient power	2.2kW	3.3kW	4.4kW	5.5kW
Max. DC input voltage	600V
MPPT mode	Power curve tracking for wind ;Max power point tracking for solar
MPPT operating range	30-400V for wind 100-400V for PV	30-540V for wind 100-500V for PV
Rated DC voltage	250V	300V
Max.DC input current	10A		15A
Number of MPPT/Max strings per MPPT	1/1
Internal consumption	<6W(No wind)
Rated AC grid voltage	230V
AC grid voltage range	180~270V(adjustable)
Rated grid frequency	50/60Hz
DC injection current	＜20mA			＜50mA
Oprating phase	Single
Rated AC grid output current	8.7A	15.7A	17.4A	21.7A
Output power factor	＞0.99
Grid current THD	Total THD ＜4%
Max.efficiency	＞97%
Protection	DC reverse polarity protection,AC short circuit protection,islanding protection,temperature protection Etc.
Topology	Transformerless
Utility monitoring	Islanding protection VAC, FAC in accordance with UL 1741, G83/1, As4777, VDE 0126-1-1
Ingress protection	IP65
Operationg environment temperature	-25~60℃
Interface	RS485/WiFi or GPRS(Optional)
Designed lifetime	＞20 years
Operating surroundings humidity	0~95%
EMC	EN61000-6-1:2007 EN61000-6-3:2007
Size/Weight	339W/565H/164D(mm) /11kg	339W/565H/172.5D(mm)/14.5kg	339W/565H/172.5D(mm) /14.5/kg
