Port: | Shanghai/Shenzhen /Ningbo; | Feature: | Long Life; |
Application: | Industry; | Market: | Globle; |
Place of Origin: | Jiangsu China; | Model Number: | SQ6-RS; |
Service: | OEM Customized Services; | Sample: | Available; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union; | Precision Rating: | High precision; |
Packing: | Thread Protection; | Certificate: | ISO9001:2008; |
Type: | Rod End; | Quality: | Great; |
Delivery: | Fast; | Supply Ability: | 50000 Piece/Pieces per Month; |
Packaging Detail: | industrial packing or according to customer's customer for Top quality SQ6-RS rod radial end bearing; | Brand Name: | NTL; |
Product name: | Top quality SQ6-RS rod radial end bearing; |

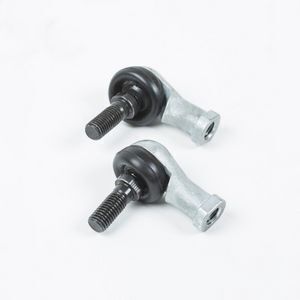

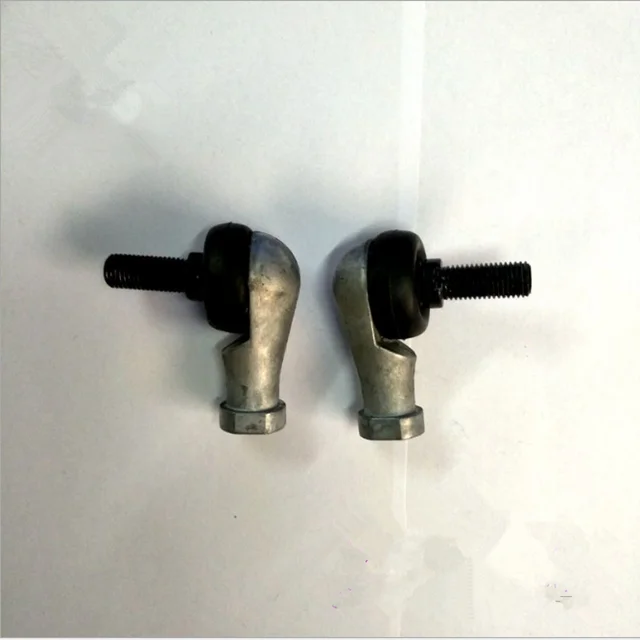

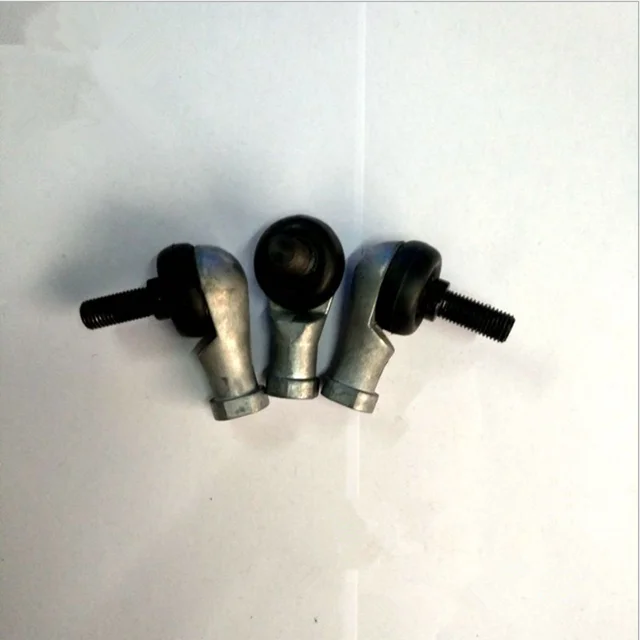

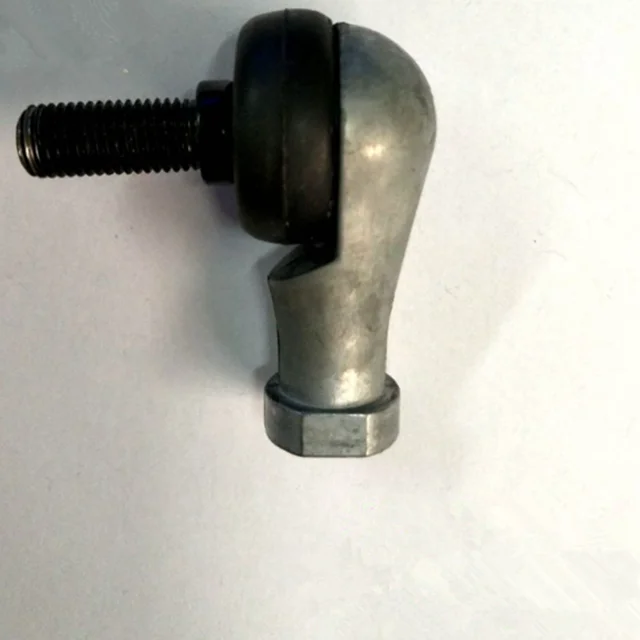

SQ6-RS rod radial end bearing ball joint SQ5-RS
Product Name | rod radial end bearing |
Material | Bearing Steel (GCr15) |
Seal | RS |
Features | High Precision, High Speed, Long Life, High Reliability, Low Noise , Reduce Friction |
Certification | ISO 9001:2008 |
Packing | 1.Neutral Packing Bearing 2.Industrial Packing 3.Commercial Packing Bearing 4.Customize |
Delivery Time | 30 - 45 Days After The Order is Confirmed |
Shippment | 1.By Sea 2.By Air 3.By Express |

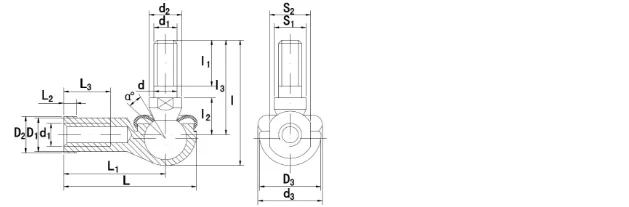

Part No. | Dimensions mm | load ratingsKN | weightkg | |||||||||||||||||
d | d1 | d2 | d3 | l | l1 | l2 | l3 | S1 | L | L1 | L2 | L3 | D1 | D2 | D3 | S2 | a | |||
min | min | ≈ | ||||||||||||||||||
SQ5RS | 5 | M5x0.8 | 9 | 19 | 29 | 8 | 10 | 21 | 7 | 35 | 27 | 4 | 14 | 9 | 11 | 16 | 9 | 25 | 2.2 | 0.026 |
SQ6RS | 6 | M6x1.0 | 10 | 20 | 35.5 | 11 | 11 | 26 | 8 | 40 | 30 | 5 | 14 | 10 | 13 | 19 | 11 | 25 | 3.5 | 0.039 |
SQ8RS | 8 | M8x1.25 | 12 | 24 | 42.5 | 12 | 14 | 31 | 10 | 48 | 36 | 5 | 17 | 12.5 | 16 | 23 | 14 | 25 | 6.6 | 0.068 |
SQ10RS | 10 | M10x1.5 | 14 | 30 | 56.5 | 21 | 17 | 43 | 11 | 57 | 43 | 6.5 | 21 | 15 | 19 | 27 | 17 | 25 | 10 | 0.112 |
SQ10RS-1 | 10 | M10x1.25 | 14 | 30 | 50.5 | 15 | 17 | 37 | 11 | 57 | 43 | 6.5 | 21 | 15 | 19 | 27 | 17 | 25 | 10 | 0.112 |
SQ12RS | 12 | M12x1.75 | 17 | 32 | 64.5 | 24 | 19 | 49 | 15 | 66 | 50 | 6.5 | 25 | 17.5 | 22 | 31 | 19 | 25 | 16 | 0.164 |
SQ12RS-1 | 12 | M12x1.25 | 17 | 32 | 57.5 | 17 | 19 | 42 | 15 | 66 | 50 | 6.5 | 25 | 17.5 | 22 | 31 | 19 | 25 | 16 | 0.164 |
SQ14RS | 14 | M14x2.0 | 19 | 38 | 79.5 | 28 | 21.5 | 62 | 17 | 75 | 57 | 8 | 26 | 20 | 25 | 35 | 22 | 25 | 19 | 0.254 |
SQ14RS-1 | 14 | M14x1.5 | 19 | 38 | 73.5 | 22 | 21.5 | 56 | 17 | 75 | 57 | 8 | 26 | 20 | 25 | 35 | 22 | 25 | 19 | 0.254 |
SQ16RS | 16 | M16x2.0 | 22 | 44 | 85.5 | 29 | 23.5 | 66 | 19 | 84 | 64 | 8 | 32 | 22 | 27 | 39 | 22 | 20 | 26 | 0.336 |
SQ16RS-1 | 16 | M16x1.5 | 22 | 44 | 79.5 | 23 | 23.5 | 60 | 19 | 84 | 64 | 8 | 32 | 22 | 27 | 39 | 22 | 20 | 26 | 0.336 |
SQ18RS | 18 | M18x1.5 | 23 | 45 | 90 | 25 | 26.5 | 68 | 20 | 93 | 71 | 10 | 34 | 25 | 31 | 44 | 27 | 20 | 33 | 0.464 |
SQ20RS | 20 | M20x1.5 | 27 | 50 | 90 | 25 | 27 | 68 | 24 | 99 | 77 | 10 | 35 | 27.5 | 34 | 44 | 30 | 20 | 45 | 0.538 |
SQ22RS | 22 | M22x1.5 | 27 | 52 | 95 | 26 | 28 | 70 | 24 | 109 | 84 | 12 | 41 | 30 | 37 | 50 | 32 | 16 | 48 | 0.713 |
1.What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.
2.How to control the products quality?
Combining advanced equipment and strict management, we provide high standard and quality bearings for our customers all over the world.
3. What is the transportation?
If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large amount, by air or sea shipping.
4. Can we design packaging?
Yes. Default is regular packing, and we can make customer's own packing.
5. Can you provide OEM service?
Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products.
6. Could you tell me the delivery time of your goods?
3-7 days stock goods and other goods according to the quantity about 3-21 days.
7. Can you give me discount on bearing?
Yes, of course. Pls. send me your Email, you’ll get more
