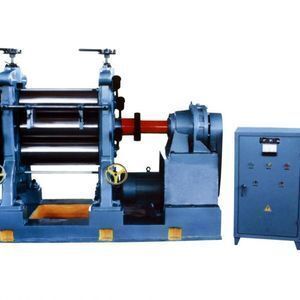

4 roll calender /PVC calender machine/four roll rubber calender

Product details
Rubber calender use for 2:Make rubberize fabrics;Dimension(L*W*H):7465 x 3662 x 2750 mm;
Product Name:Fabric Plastics PVC used rubber calender machine;Model Number:XY-3-230*620;
Supply Ability:30 Set/Sets per Month Fabric Plastics PVC used rubber calender machine;Place of Origin:Shandong China;
Packaging Detail:Packing: Wood Pallet & Film Wrap Payment term:30% of deposit,70% before shipment Delivery term: FOB QingDao Fabric Plastics PVC used rubber calender machine;Brand Name:Guangyue;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Warranty:2 years;
Certification:CE/SGS/CNAS/IAF;After-sales Service Provided:Engineers available to service machinery overseas;
Rubber calender use for 3:Make rubber sheets;Min. calendaring product thickness:0.2 mm;
Working length of roller:620 mm;Delivery Detail:Shipped in 20 days after payment;
Middle- roller linear speed:2-16.8 m/min;Roller hardness:68-72 Shore hardness;
Rubber calender use for 1:Put rubber on fabrics, canvas or other fabrics;Port:Qingdao;
Power(W):55KW;Type:Rubber Calender;
Condition:New;Velocity ratio of roller:1:1:1;
Weight:11T;Working diameter of roller:230 mm (9inch);
Voltage:220V, 380V, 440V;
Product Description

Fabric  Plastics PVC used rubber calender machine

We just more professional than other,nothing else

Same price you will get higher Configuration

Why not contact us?!



Machine used for waht?
It is used for calendering of rubber or plastics, fabric fractioning and coating, sheeting and composite of rubber or plastics.

Our Advantage is?

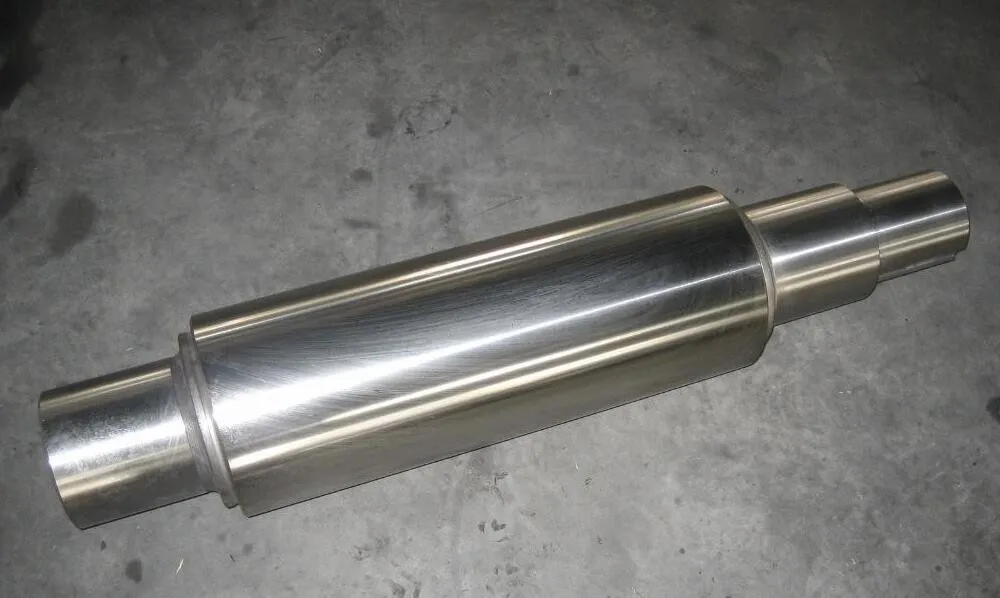

             1. The rolls

Made of chilled cast iron of vanadium and titanium alloy.

Roll face is hard and anti-wear.

For heating up or cool down, the rolls are either circumferentially drilled or centrally bored so as to make temperature well proportioned on the roll surface.

2. Transmission System

Hardened tooth-surface reducer, Compact structure

Higher transmission efficiency

Lower noise

Longer Service Life.

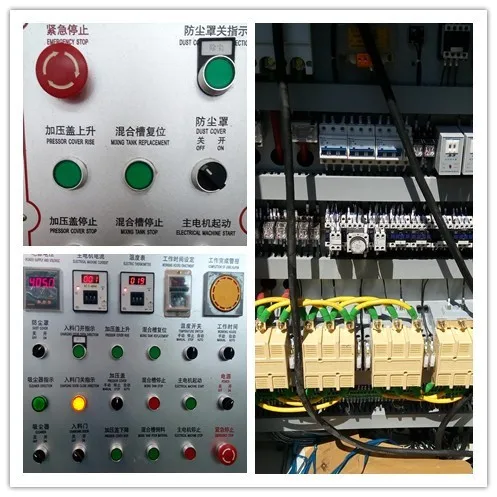

3.Electric-Control System

Imported PLC Device

Full-Automatic Control

Easy to exchange the modes and reliable to operate the controller.

4. Bearing&Sealing

Bearing:Provide15years Service!

Sealing:Provide10years Service!

High-intensity Seal Ring

Promise the oil will not leak

Provide 10 years Service!

5.The machine is driven by DC motor with a wide range of speed adjustment. Working linear speeds can be steplessly regulated within the fixed range for different applications.

6.The rolls are equipped with lubrication failure alarm device, as well as nip display and speed display.
7.The rolls can be arranged in L, Γand I forms. The top roll has a camber that can eliminate bending impact on the roll in working process. Thus, it is possible to make products with same thickness along axial direction.

8.The machine is equipped with emergency device. When an emergent accident occurs, the calendar will be immediately stopped to open the roll space so as to protect the operator and equipment.

Rubber calender machine Main Type is?

Model

Item

XY-4I 630

XY-4L 630

XY-4- 630

XY-4-1120A

XY-4-1400

XY -4-1500

XY-4-1730

XY-4-2130

XY-4-2430

Roller dia



mm

230

360

400

450

610

710

810

Roller working length



mm

630

1120

1400

1500

1730

2130

2430

Roller ratio





1:1:1:1

0.73:1:1:0.73

1:1.38:1.38:1

1:1.5:1.5:1

1:1.4:1.4:1

1:1.4:1.4:1.4

1:1.5:1.5:1

1:1.5:1.5:1

Middle   –roll linear speed





m/min

2.1-21

2-20.1

3-26.3

2.5-25

8-50

3-30

2-20

Adjusting   range



mm

0-10

0-10

0-10

0-6

20

0-20

0.5-25

Min.calendering product thickness



mm

0.2

0.2

0.2

0.2

0.15

0.15

±0.1

Calendering product width



mm

100-500

500-920

1200

1250

1500

1900

2150

Motor power



kW

15

55

75

110

160

185

280



Overall   dimensions







L

mm

3300

6600

6500

6580

7010

9800

W

mm

940

1620

1970

2460

4150

4260

H

mm

2350

2490

2740

2920

3730

5720

About weight



t

~4.8

~14.6

~18.6

~33.5

~62

~100

~126

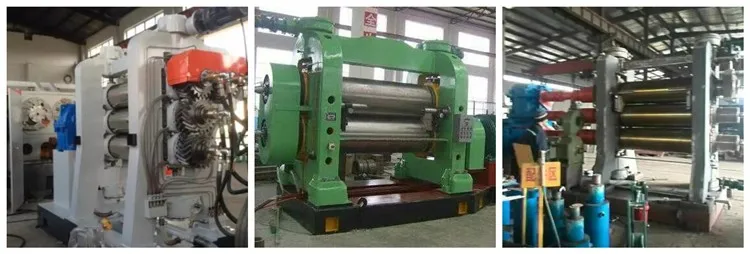

Product Details

Fabric  Plastics PVC used rubber calender machine

Packaging & Shipping

Fabric  Plastics PVC used rubber calender machine

Packaging:

Nude packing & Electricity box wooden splints packaging.

Shipping:

Delivery Port:QingDao Port

Price Term:

1. To be paid by T/T 30% of total amount in advance.
2. To be paid the balance by T/T 7 days before shipment.

Exibition&Customers

Fabric  Plastics PVC used rubber calender machine

Certifications

Fabric  Plastics PVC used rubber calender machine

Our Services



1.Pre-sale services
Act as a good adviser and assistant of client enable them to get rich and generous returns on their investments.
1)select equipment model
2)design and manufacture products according to clients' special request
3)train technical personnel for clents.
2.Services during the sale
1)Recheck and accept products ahead of delivery
2)Help clients to draft solving plans
3.After-sale services
1)provide considerate services to minimize client's worries.
2)Help client to solve the assembly question
3)take responsibility if any technical problem

Company Information



FAQ

 Q:Are you factory or trading company?
A:We are a manufacturer with over than 15years of experience in Rubber Machine.
Factory Add: Huang Shan Economic Zone, Jiaonan, Qingdao, Shandong, China (Mainland)
Q:What advantages do you have?
We have 30 years trust of our customers. Guarantee Quality and timely Delivery !
Q: What are your delivery times?
The delivery time is 20-45 days after order be confirmed. For the exact date,please check with our sales team.
