Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Packaging Detail: | 3-16mm 1000m/roll, 20-80mm 50m/roll; |
Application: | wire and cable protection; | Supply Ability: | 2000000 Meter/Meters per Month; |
Model Number: | HP-EBS(PET); | Port: | Shanghai; |
Place of Origin: | Shanghai China; | Flammability: | VW-1; |
Material: | Polyester; | Cutting Tool: | Hot Knife; |
Melt Point: | 250C +/- 5C; | Certificate: | UL, ISO, SGS, IMDS; |
Operating temperature: | -50℃~150℃; | Tensile Strength: | 3 Times; |
Color: | Black; | Size: | 3mm-100mm; |
Brand Name: | HP; | Type: | Insulation sleeve; |
Product Name: | expandable braided sleeve; |

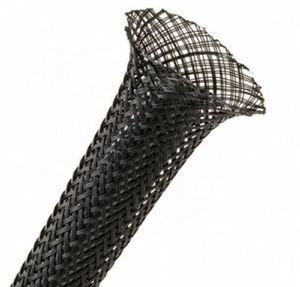

Hampool PET Expandable Braided Sleeving Flexo wire Cable Sleeve
Property | Specification Requirement | Test Method | Typical Value |
Tensile strength(Room temp.) | Min.10.4Mpa | UL224 | 12Mpa |
Elongation at break(Room temp.) | Min.200% | UL224 | 400% |
Tensile strength after aging(158℃ 168hrs) | Min.7.3Mpa | UL224 | 10.8Mpa |
Elongation after aging(158℃ 168hrs) | Min.100% | UL224 | 300% |
Voltage withstand(Uh-aged) | Withstand 2.5kv for 1 minute and breakdown | UL224 | pass |
Voltage withstand(Aged) | Withstand at least half of un-aged breakdown voltage for 1 minute and breakdown | UL224 | pass |
Corrosion(158℃ 168hrs) | No corrosion | UL224 | No sign of deg. |
Longitudinal shrinkage | ≤10% | UL224 | ≤5% |
Flammability | UL1581 | VW-1 | |
Volume resistivity | Min.1014Ω.m | UL224 | pass |
Dielectric strength | >19.7kv/mm | ASTM D2671 | >25kv/mm |
