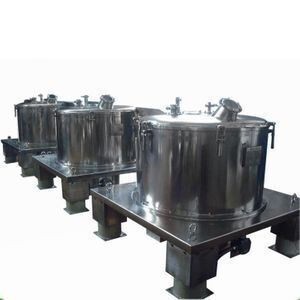

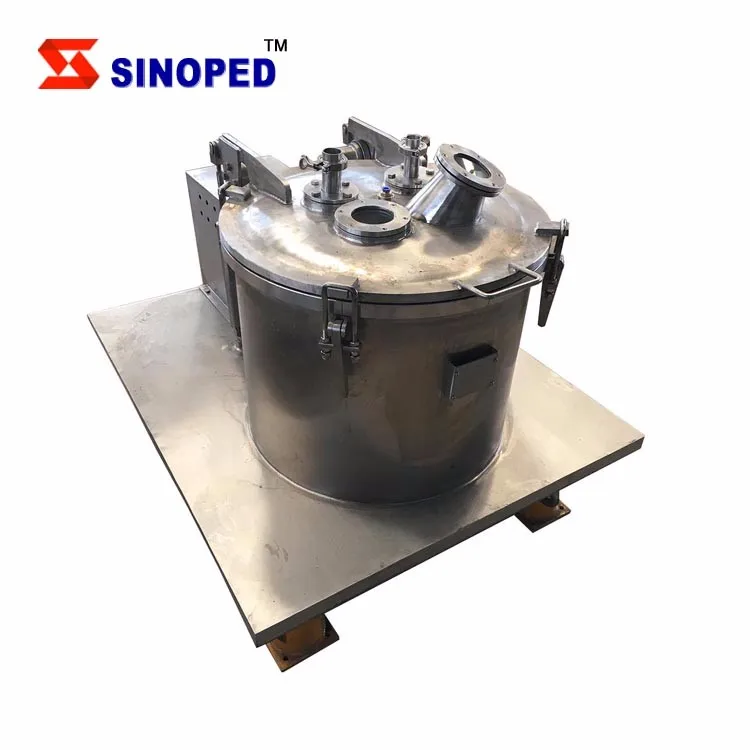

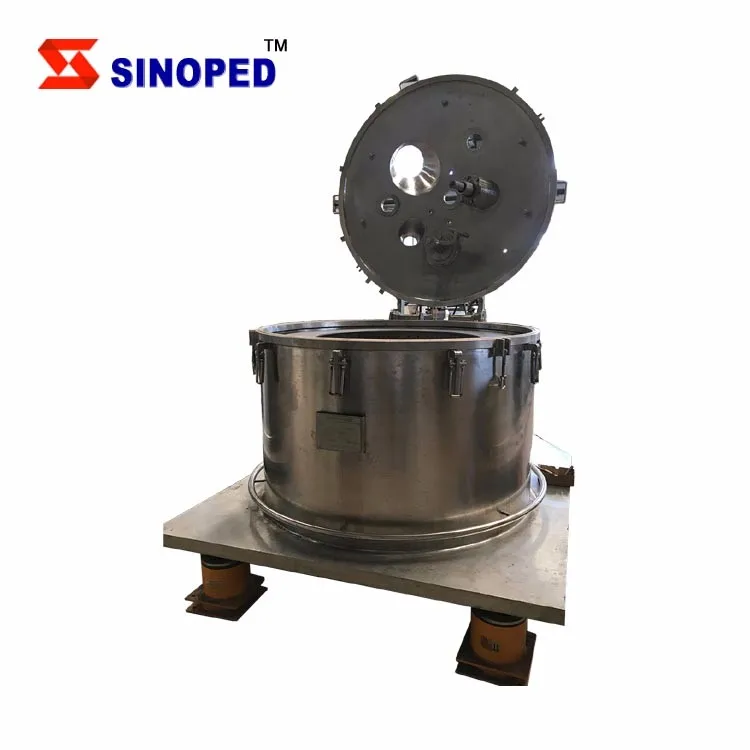

Model Ppsbd Scraper Bottom Discharge Centrifuge Basket Type

The machine is mainly used for the separation of the suspension containing fine/ medium particles, and the solid particles of granular, crystal or fiber, especially for the separation of material whose viscosity is high, with fine fineness, it's poisonous or inflammable. It is widely used in the industries of chemical, pharmaceutical, food, light industry and environment protection, etc.

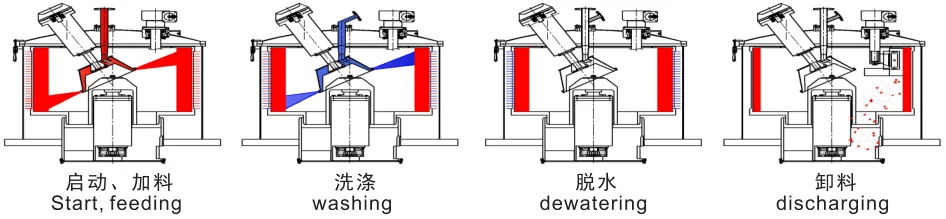

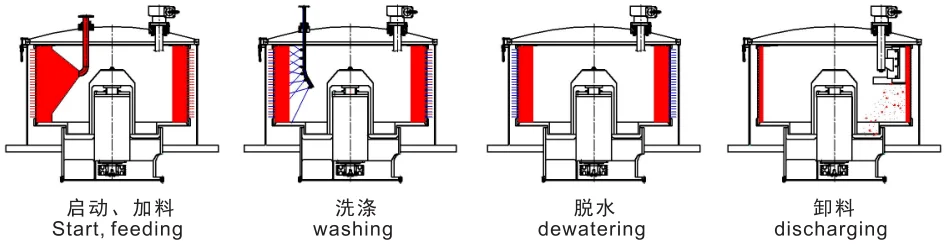

According to GMP standard and environmental protection sanitary requirement, PGZ plate type centrifuge is designed based on the traditional 3-feet bottom discharging centrifuge, and is a new bottom discharging centrifuge, in which the traditional suspending legs are cancelled, and the flat balancing weight and high-viscosity damp vibration isolator is equipped, and there is no foundation's installation. Frequency convertor controls the motor, which drives the belt wheel to transfer the power to the bowl through the triangle belt, and keep the bowl rotating around itself axis by high speed to form centrifugal force field. Material from the top feeing pipe is forced to have the separation on the bowl wall evenly by the centrifugal force. Through the solid phase, the filter screen gap and the holes in the bowl, the liquid phase is splashed into the shell space, and then be discharged from the outlet at the bottom, while the solid phase will be remained in the bowl. After the dewatering, the bowl speed is reduced, and the solid material will be taken away by the scraper, and be discharged through the bowl's bottom outlet.

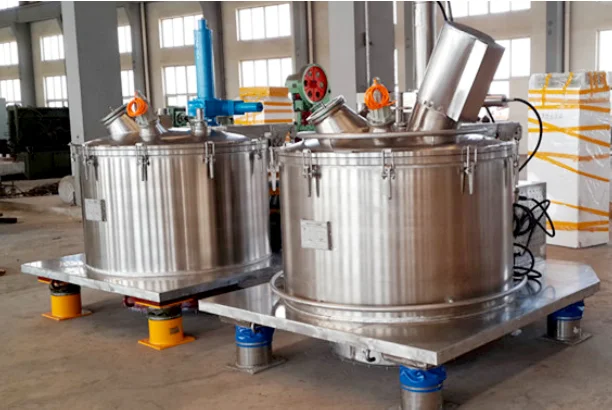

1.Side direction feeding of feeding pipe

2.Oblique feeding device

There will no further notification if the appearance or parameters of our products are modified. Thanks.

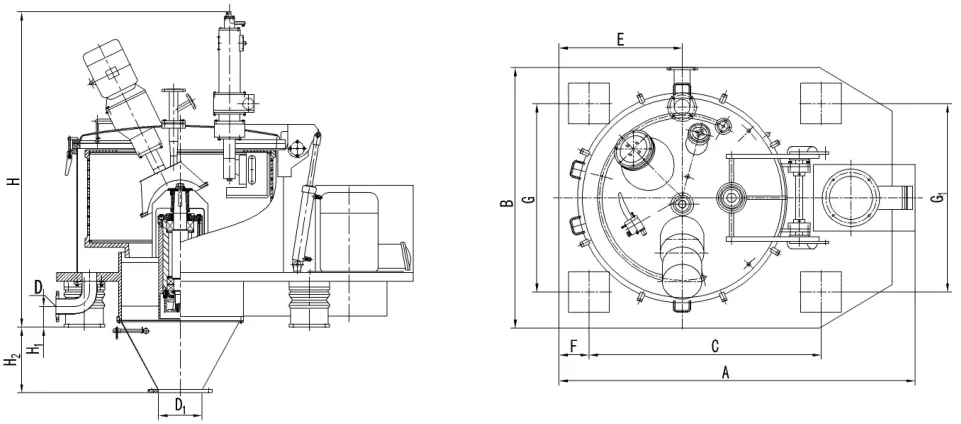

Outline and installation size

Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We belong to SINOPEC International Group.
We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including clean room project, soft-gel production line, glass-lined reactor, fermentor, centrifuge, granulator, mixer, dryers, pulverizer, tablet press, soft and hard blister packing machine, capsule filling machines, cartoner and rollers, etc.
Due to our good credit and service, , we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines and turn key projects.
In SINOPED you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.

One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished;
Consultant services for whole machine life, and 24 hours technical support by email;
UPS, English software, user manual and the installation & debugging by our experienced technicians.
