Clean Room For Pharmaceutical Industry

Product details
Warranty:1 Year;Port:Dalian seaport, China;
Panel:sandwich panel;Packaging Detail:Export wooden case;
Supply Ability:500 Square Meter/Square Meters per Month;Brand Name:SINOPED;
Payment Terms:L/C,T/T,Western Union,MoneyGram;Certification:CE ISO GMP;
Cleanliness:10-10000;After-sales Service Provided:Online support,Engineers available to service machinery overseas;
Function:Purification Filter;Material:Stainless Steel;
Application:100 Lab / Laboratory Clean Room;Product name:class 1000 laminar air flow Hardwall Clean Booth;
Place of Origin:Liaoning China;Applicable Industries:Building Material Shops,Food & Beverage Factory,Food & Beverage Shops;
Filter:HEPA PTFE Cartridge Filter;Usage:Pharmaceutical/LAB/Hospital;
Product Description

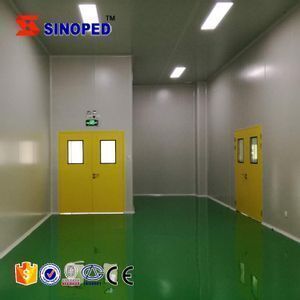

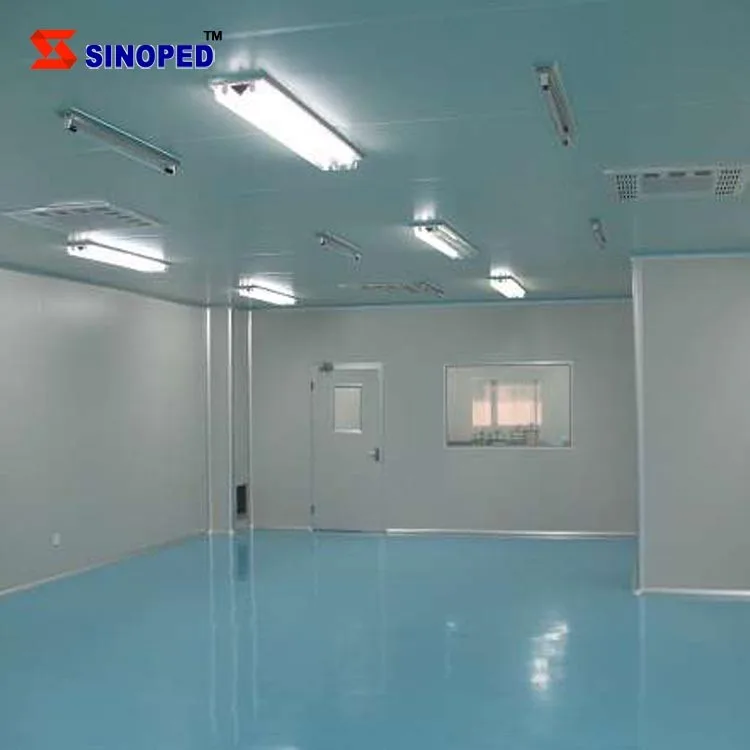

               This is a clean room full service construction under GMP request. Turnkey project. A Cleanroom or clean room is an environment, typically used in manufacturing or scientific research, that has a low level of environmental pollutants such as dust, airborne microbes, aerosol particles and chemical vapors. More accurately, a cleanroom has a controlled level of contaimination that is specified by the number of particles per cubic meter at a specified particle size. To give perspective, the ambient air outside in a typical urban environment contains 35,000,000 particles per cubic meter in the size range 0.5um and larger in diameter, corresponding to an ISO9 cleanroom, while an ISO1 cleanroom allows no particles in that size range and only 12 particles per cubic meter of 0.3um and smaller.
          We kindly needs following information to design your clean room

Clean rank of suspended particles in air of clean room or clean area

ISO rank for air cleanness
Bigger or equal to maximum concentration limits in table (P/m3-air)
American federal 209E rank for cleanness
0.1um
0.2um
0.3um
0.5um
1um
5um
ISOClass1
ISOClass2
100
24
10
4

ISOClass3
1000
237
102
35
8
1
ISOClass4
10000
2370
1020
352
83
10
ISOClass5
100000
23700
10200
3520
832
29
100
ISOClass6
1000000
237000
102000
35200
8320
293
1000
ISOClass7
352000
83200
2930
10000
ISOClass8
3520000
832000
29300
100000
ISOClass9
35200000
8320000
293000
300000
Recommend for rank of clean workshop of related industry
Rank
1
10
100
1000
10000
100000
300000
Semiconductor Chip Manufacturing



Semiconductor Chip Package




Electronic Components Production


Precision Products


Medical Injections


Medical Oral Agent


Aseptic Ward




Operation Room


Aseptic Rearing Animals
Precision Printing
Food Packaging

The structure parts:

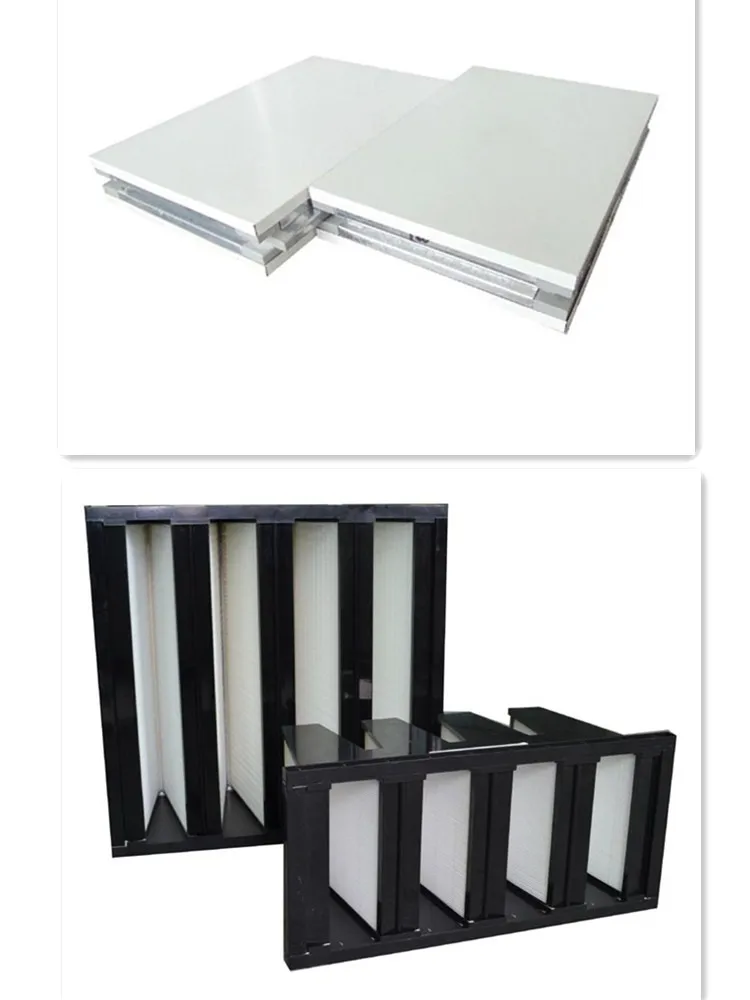

1. Panel style:

    Metal-face polyurethane core board,
    Metal-face rockwool core board (widely used),
    Metal-face polystyrene core board (without fire proof),
    Metal-Face Honeycomb Core Board,
    Metal-Face Plastered Core Board (widely used for ceiling),
    Metal-face glass-magnesium core board.


    Panel thickness: 50mm and 100mm
    Panel Height: according to customer request

2. Door shape and window shape and quantities

3. Ornament material: circle 50 degree, 75 degree, alloy aluminum, silver color or painted color.
4. Layout drawings
5. The house structure: steel structure or ferroconcrete









Air conditioner and air fan parts:

1. The technical height(the height between ceiling to girder lower point)
2. Air feeding duct and air sucking duct direction and arrangement
3. The clean grade request, temperature and humidity request, pressure balance request, wind speed              request.
4. Air exhaust request and air exhaust quantity request
5. Workers quantity and equipments heat generating amount
6. Air conditioner or air fan brand and style request:
    Water cooling or fan cooling?




Equipment parts:.

1.The air shower room specification and material request.
2.The pass box specification and material, technical request.
3.Laminar flow specification and request
4.Weight room specification and request
5. FFU specification and request

There will no further notification if the appearance or parameters of our products are modified. Thanks.
