[SINOPED] Low Consumption Water Electrolysis Hydrogen Generator

Product details
Condition:New;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,cash;
Port:Shnghai port;Brand Name:SINOPED;
Usage:Hydrogen;Supply Ability:30 Set/Sets per Month;
After-sales Service Provided:Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;Voltage:380V±15%;
The number of pins for filling.:Linkage pin 12-16 stitches.;Certification:ISO;
Weight:260KG;Dimension(L*W*H):1250x800x1450;
Production Rate:9000L/h;HMI:yes;
Packaging Detail:Standard export wooden case packing;long-range control:Siemens PLC;
Warranty:1 year;Place of Origin:Guangdong China;
Brief introduction

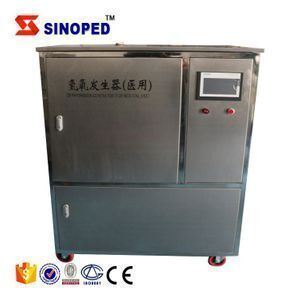

High purity safe hydrogen generator

TSY-VS type high purity hydrogen generator is a new type product developed on the foundation of the technology of astronautic fuel cells. The working principle of hydrogen generator is, hydrogen is produced by the electrolysis of water, and the produced oxygen is released to the atmosphere. It is made up of these systems such as the electrolyzing &separating pool, switch power, pressure control, desiccation& purification and flow display.The core part of the instruments is electrolyzing &separating pool, in which the positive pole is of tube type structure, the negative pole is of sheet metal shape, and both the poles are made of stainless steel.

Character and Advantages:

PEM technology---Proton Exchange Membrane
The PEM electrodes, as the core of the product, are highly active catalytic electrode with nearly zero distance between the electrodes, which is formed by integrating composite catalyst with ion membrane with high electrolytic efficiency.
Plural-electrode and multiunit electrolysis cell structure. Excellent chemical technological process properties of heat and mass transfer.
Electrolysis of pure water( no adding alkali) to produce high purity (99.999%/99.9995%) hydrogen with no corrosion and pollution.
Voltage of cell is low, electronic resistance in the electrolysis cell is little, could greatly saving energy. Circle time for changing desiccants is long.
Power consumption is less, electrolysis is efficientHydrogen output flow under stable pressure. Gas produced on demand, no storage.

Product Description
Technical parameters
Model
TSY-VS-9000L/H
TSH-VII-7000L/H
TSH-VIII-12500L/H
working power supply
380V±15%
380V±15%
380V±15%
 rated power
1800W
1400W
2800W
Gas pressure
0.3MPa
0.3MPa
0.3MPa
Amount of gas
9000L/H
7000L/H
12500L./H
environment temperature
-10-45 ℃
-10-45 ℃
-10-45 ℃
 relative humidity
≤85%
≤85%
≤85%
boundary dimension
1250x800x1450
950X650X1350
1250x800x1450
 Weight
260KG
190KG
270KG
 HMI
yes
yes
yes
long-range control
Siemens PLC
Siemens PLC
Siemens PLC
Automatic filling
yes
yes
yes
The number of pins for filling.
Linkage pin 12-16 stitches.
Linkage pin 10-12stitches.
Linkage pin 20-24stitches.

There will no further notification if the appearance or parameters of our products are modified. Thanks.


Detailed Images
Other Products

Why choose us?

1. SINOPED has been engaged in the purification technology and application. And we have the R&D team, performing continuous product research and improvement from time to time.
2. Our products are certificated by the most prestigious national and international institutes.
3. Each procedure of the production process is conducting under the strict quality control system. Our QC inspects each lot of the incoming material and the finished products carefully, so that we can supply the best products for customers.
4. From the design to the producing, each procedure is controlled strictly, so we can control the product costs optimally, and offer products with the best quality and the most competitive price. Win-win is our ultimate purpose.

Our Company

Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We belong to SINOPEC International Group.
We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including clean room project, soft-gel production line, glass-lined reactor, fermentor, centrifuge, granulator, mixer, dryers, pulverizer, tablet press, soft and hard blister packing machine, capsule filling machines, cartoner and rollers, etc.
Due to our good credit and service, , we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines and turn key projects.
In SINOPED you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.
