40 m3/h small mini diesel concrete pumps

Product details
Theoretical Conveying Distance:150/700m;Dimension(L*W*H):5000*2100*2200;
After-sales Service Provided:Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support;distribution valve:S VALUE;
Power Type:Diesel;Condition:New;
Selling Units:Single item;Brand Name:Minle;
Applicable Industries:Construction works ;Single package size:50X21X22 cm;
Theoretical Concrete Output:40m3/h;Place of Origin:Shandong China;
Single gross weight:45 KG;Weight:4500kg;
Certification:BV, ISO;Concrete outlet Pressure:13Mpa;
UNIQUE SELLING POINT:High operating efficiency;cleaning method:high pressure washing;
Keyword:concrete pumps;Warranty:one year;
After-sales Service Provided:Engineers available to service machinery overseas;color:According to the clients requirements;
Package Type:in nude package;

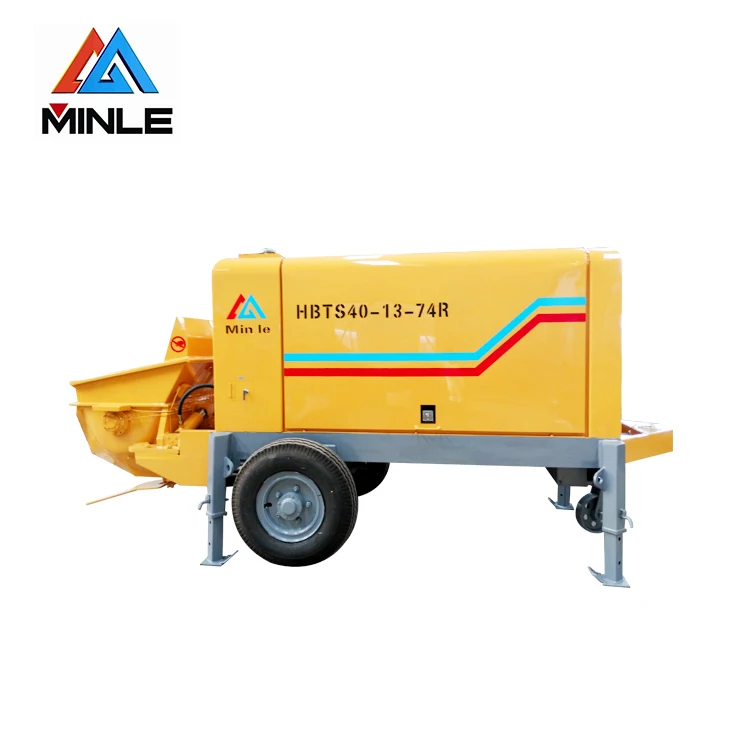

40 m3/h small mini diesel concrete pumps

CONTACT: SARA  MOBILE/WECHAT/WHATSAPP:86-15866001919







Product Description





 Concrete pumps is the widely used construction equipment to transfer liquid concrete by pumping method. As the leading concrete pump designer, manufacturer and exporter, Taian Minle Machine Manufacture Co., Ltd had been dedicated in supplying one stop concrete pump machine solution to worldwide customers since its foundation in 1999. We have our own 21,000 square meters professional factory covering casting, welding, parts machining, hydraulic parts processing, heat treatment, spray painting and machine assembly and testing, etc. Our more than 150 professional skilled employees are our real wealthy and competence. Our products had been exported to over 36 countries. Hope to be your partner.

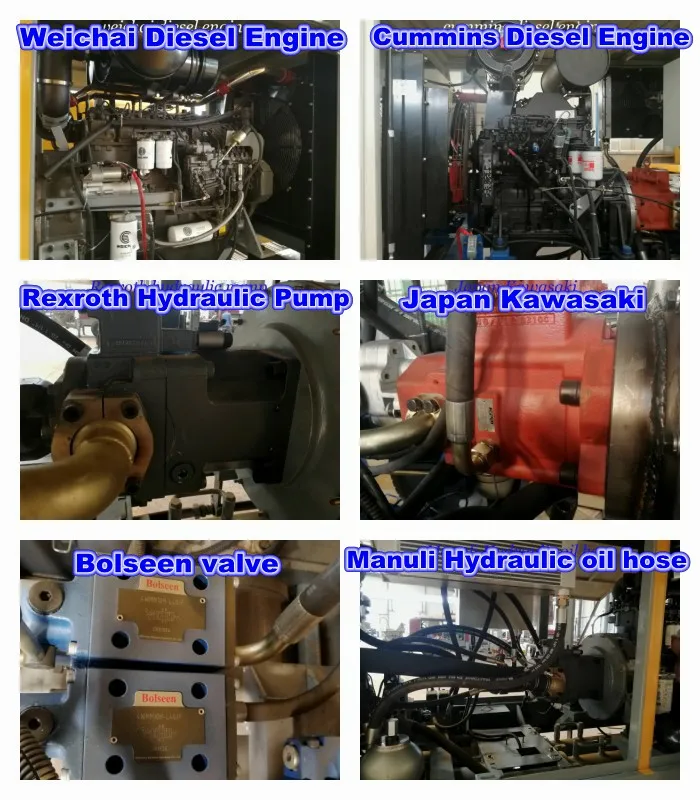

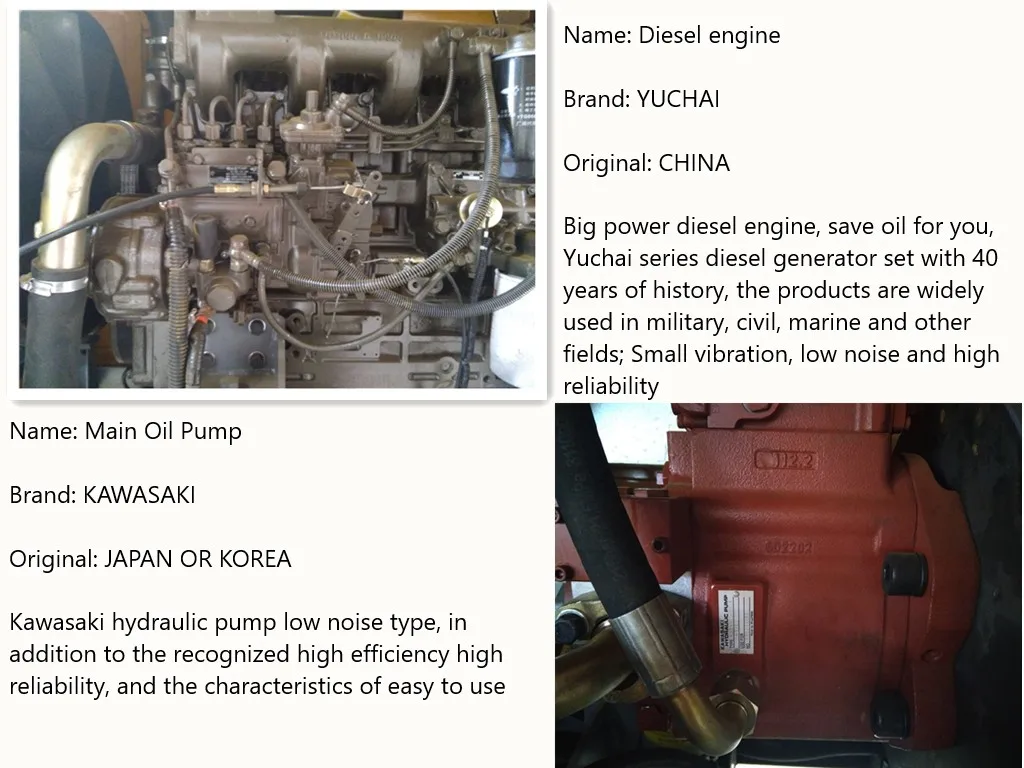

1.Power system of concrete pumps   diesel concrete pump

Hydraulic oil pump: Germany Rexroth or Japan Kawasaki are adjusted.
Diesel power: Germany Deutz, Weichai, Cummins, Dachai Deutz, Volvo, Perkins are adjusted.

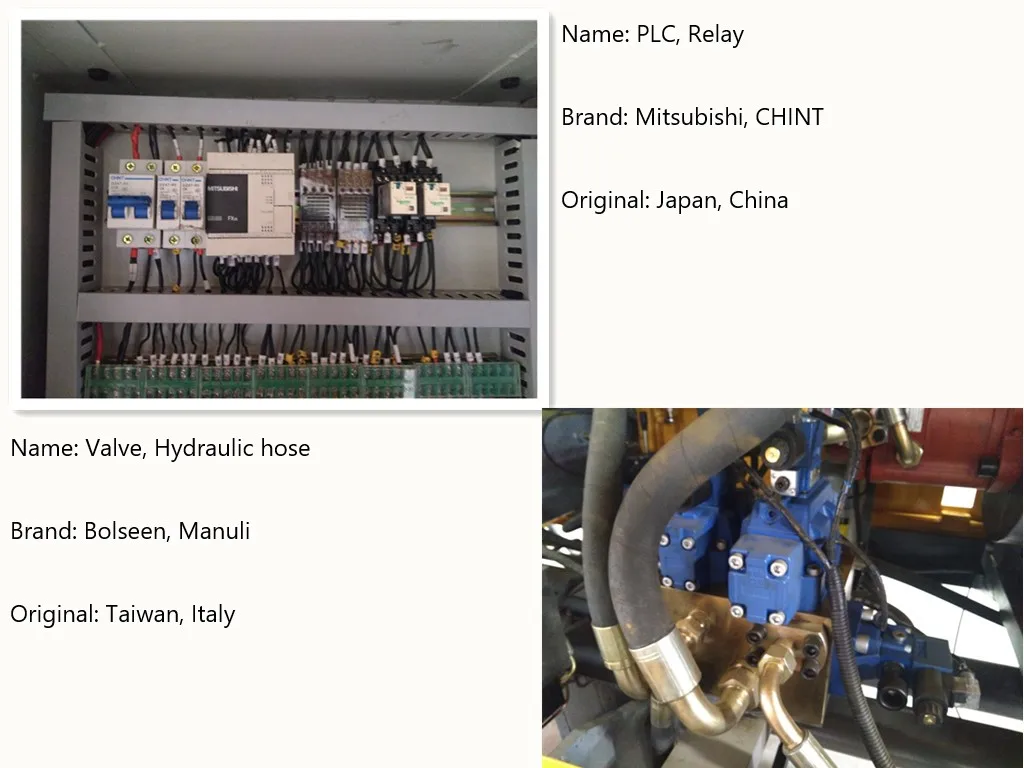

2.Electronic control system of concrete pumps

Japan Mitsubishi Programmable Logic Controller (PLC) electronic control system.

Main electric elements are imported original Schneider, Siemens, OMRON, LG etc.

The control mode: manual operation and wireless remote control

Humanity and intelligent electronic control system optimizes the person-machine interface

.8-digital pumping time accumulation timer provides exact data for the user,

 Automatic anti-pump function and optimized program design.

 Automatic trouble monitoring function.diesel concrete pump



3.Hydraulic system of concrete pumps for sale

The unique open hydraulic system and hydraulic cushion technology contribute to the smaller

 exchange impact and less heat of the system. Meanwhile, with the famous brand of main pump

and hydraulic valve, the safety and reliability of the concrete pump are guaranteed.

The hydraulic pipeline selects the high performance seamless steel pipes and all pipe joints

and high pressure hoses are of the famous brands. A number of high pressure accumulators

and their excellent cushion performance reduce the requirement of S pipe vale for the concrete.

The concrete is delivered freely.d



4.Pumping system of concrete pumps

Pumping displacement variable adjustment: Change the pumping displacement according to

the construction to meet the requirement of the condition. Reducing design of the hopper

could release the reducing pressure of the concrete into the delivery pipe maximally,

 and prolong the service life of the S pipe outlet.



5.Lubrication System of concrete pumps

The patented central automatic lubrication system comes with a piston grease-pump,

 features high pressure and reliability, which can realize automatic lubrication of piston.

The filters at the outlet and the inlet of oil ports as double protections guarantee the system reliability.



6.Cooling System of diesel concrete pump

Compulsory air cooled heat exchanger keeps the temperature of the hydraulic oil below 60 degre,

that ensures the whole hydraulic system works at normal status.



40 m3/h small mini diesel concrete pumps specification





Item concrete pumps

HBTS40—13—74R

                      Max Theoretical Concrete Output   (m³/h)

40

Max Concrete outlet Pressure (Mpa)

13

Concrete slump (mm)

120—230

Aggregate Size (mm)

 gravel≤40

Power (KW)

Diesel motor 74

Speed (r/min)

2300

Conveying Cylinder Diameter (mm)

Ø 100/1000

Concrete Cylinder Diameter (mm)

Ø 180/1000

Fuel Tank Capacity (L)

250

Hopper Capacity (m³)

0.35

Filling Height (mm)

1250

Maximum Theoretical Conveying Distance (vertical Height/Horizontal Distance) (m)

150/700

Pipe Cleaning Mode

Washing

Overall Dimension (mm)

5000×2100×2200

Total Weight (kg)

4500

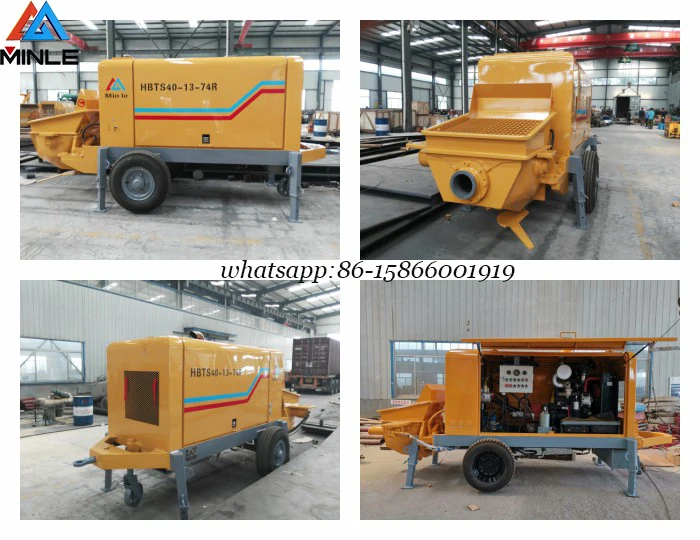

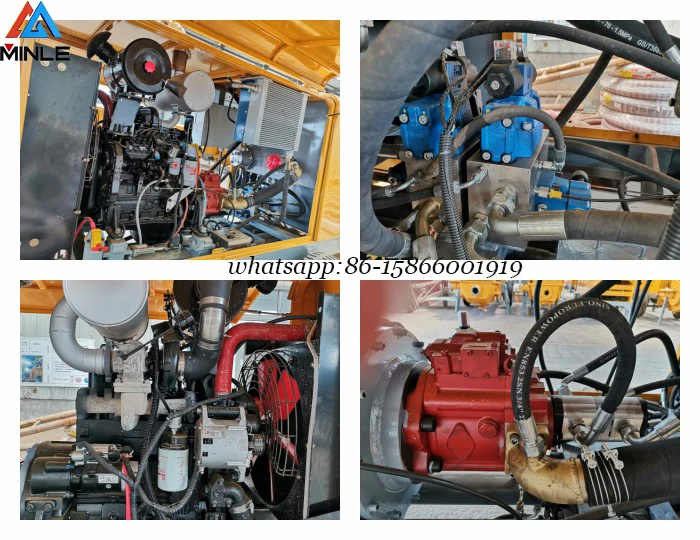

 More pics





WELCOME ENQUIRY

 Packing and delivery

Customer usage

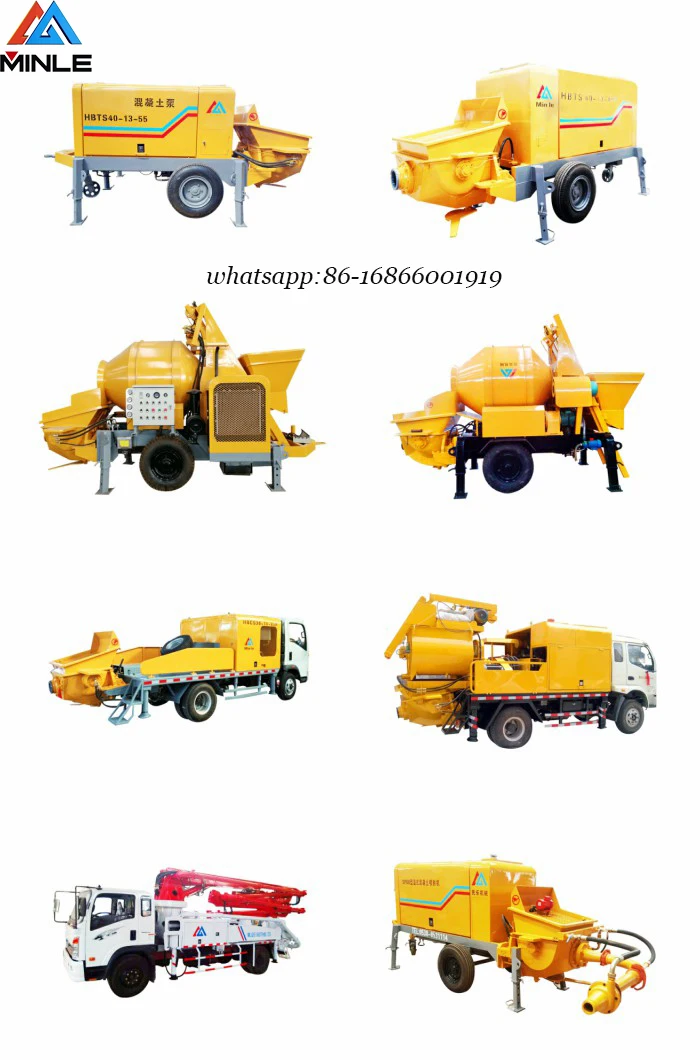

Our Main Products











Company Introduction

MINLE Machinery had been always focused on designing and fabricating concrete pumps products for over 20 years.

MINLE Machinery had provided many types of effective and states of the art concrete pumps machines to over 36 countries. Our main customers are from Saudi Arabia,Vietnam, Malaysia, Poland, Hong Kong, Malaysia,  Hungary, Mexico, Ecuador, Brazil, Pakistan,Thailand, Qatar, Bangladesh,Indonesia, Ethiopia, Somalia, Nigeria,  Singapore, Philippines, Sri Lanka, India, Madagascar, UAE, Saudi Arabia, Kenya, Ghana, South Africa, Swaziland, Mongolia, etc.
diesel concrete pump diesel concrete pump diesel concrete pump diesel concrete pump diesel concrete pump diesel concrete pump diesel concrete pump diesel concrete pump





Customer visit and the case aboard





FAQ

Are you manufacturer or trading company?

Yes, we are professional manufacturer of concrete pumps.



What is your MOQ?
One Set is ok for your trail order.



What is your payment term?
We can receive T/T, L/C, Western Union and trade assurance.



What is your main product?
 Concrete pumps Trailer/Concrete mixer pump/ Concrete mixer pump Truck /Truck mounted line pump /Concrete Boom Tuck/Wet shotcrete machine and other construction machines



What is the delivery time?
Most of the order will within 15 days, sometimes depend on your quantity and our present products plan.



How about your Warranty and after sale service?
Normally is about 12 months after leaving factory, but that can be negotiated based on our cooperation.

OEM or ODM is available?
Yes, we can produce with your logo and requirements.
