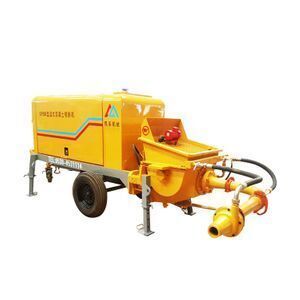

7 cubic meter per hour Diesel Concrete Spraying Wet Shotcrete Machine SPB7-G

Supplier: Tai'an Minle Machine Manufacture Co., Ltd.
Region: Shandong, China
Contact: Ms. Minle Machine
Price: $18000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Distribution valve:	S valve;	Power(W):	18.5KW;
Aggregate size:	20mm;	Dimension(LWH):	297612101435mm;
Hose Inner Diameter:	51 mm;	Voltage:	380/660V;
Keywords:	wet shotcrete machine;	Max. Conveying Distance:	Horizontal:240m,Vertical:80m;
Product name:	wet shotcrete machine;	Type:	Shotcrete Equipment;
Brand Name:	MINLE;	After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support;
UNIQUE SELLING POINT:	High operating efficiency;	Selling Units:	Single item;
Single gross weight:	4,000 KG;	Single package size:	367X143X146 cm;
Brand Name:	Minle;	Certification:	BV, ISO;
Place of Origin:	Shandong China;	Condition:	New;
theoretical outlet pressure:	6Mpa;	theoretical concrete output:	7 M3/h;
color:	According to client's requirements;	Applicable Industries:	Construction works ;
Warranty:	1 Year;	Air Consumption:	10m3/min;
Package Type:	in nude package;	After-sales Service Provided:	Engineers available to service machinery overseas;
Weight:	About1800kg;

March discount buy one get one free7 cubic meter per hour Diesel Concrete Spraying Wet Shotcrete Machine SPB7-G

Concrete Spraying Wet Shotcrete Machine is an advanced product in shotcreting technology enabling continuous flow with minimum rebound ensuring coverage of maximum area in shortest possible time thereby increasing the overall productivity of project. The wet shotcrete machine is often used to spay out the finished concrete mixed with accelerator from its nozzle to the construction surface. The nozzle is installed at the outlet of the pipe and the air is compressed and the concrete is ejected. MINLE wet shotcrete machine is engineered with high quality wearing parts, variable displacement plunger pump, novel developed cam track and rolling body to obtain higher reliability and high concrete spaying efficiency and uniformity. our Wet shotcreting machine features simple structure, reliable working performance, high efficiency, decreased dust, small shape, light weight, low concrete consumption, reduced rebound resilience, saving material, It is extensively used for concrete spraying, filling, grouting, pumping in construction projects in mine, culvert, construct foundation pit support, channel slope protection, etc.

Features of Concrete Spraying Wet Shotcrete Machine

High quality, high working efficiency.
The water ash ratio is much easier to control and concrete coefficient is high, it can greatly improve the concrete quality and increase the concrete uniformity.
Hydraulic pumping method, high system reliability, stable delivery volume. It is extensively used for concrete spraying, filling, grouting, pumping in construction projects.
Low rebound resilience. The concrete rebound resilience can be less than 10% when wet spray.
The injection quantity can be continuously adjustable.
The main oil pump adopts a variable displacement plunger pump, and the injection speed can be adjusted freely (the maximum number of adjustments is not more than 10 times/min.)
The concrete accelerator quantity can be continuously adjustable according to the amount of spraying.
It greatly reduces the dust concentration around the machine and jet nozzle.
Longer life span of the wearing parts.
The consumable parts service life of the main engine is not lower than the spraying 4000m³.
Automatic lubrication system. Automatic controlled lubrication for main sealed parts, grease filling amount and filling time.
Intelligent automatic control can greatly prolong the life of vulnerable parts.
Humanized product design.
The use of remote control handle, easy to operate.
Easy to operate and maintain.
Competitive factory price.

Technical Parameter of Concrete Spraying Wet Shotcrete Machine

No	Item	Unit	Specifications
1	Max. Concrete Output Capacity	m³/h	3~7
2	Max. System Pressure	MPa	15
3	Working wind Pressure	MPa	≥0.4
4	Max. Aggregate Size	mm	≤15
5	Main motor power	Kw	22
6	Power Supply	V	AC 380
7	Concrete slump	mm	120~180
8	Hopper Capacity	L	300
9	Max. Concrete Conveying Height	mm	1100
11	Concrete slump	mm	100~200
19	Oil Tank Capacity	L	145
20	Rebound degree		≤10%
25	Overall Dimension (LxWxH)	mm	3675x1435x1465
26	Total Weight	Kg	2100

PLEASE ENQUIRY

Company Introduction

Minle Machinery (Taian MINLE Machine Manufacture Co., Ltd) is located in the High Tech Development Zone, Taian City, Shandong Province, China, the famous tourist city near the expressway from Beijing to Shanghai, Shandong Province, China. As the professional concrete pump machine manufacturer and exporter, we had been dedicated in supplying one stop concrete pump solutions to worldwide customers for more than 20 years. We have over 150 professional staffs and 21,000 square meters fabricating factory which is equipped with state-of-the-art processing machines such as plasm steel cutting machine, five axis boring and milling machine, automatic bending machine, steel plate shearing machine, welding machine and other professional equipments, etc, which help us to keep high product quality, shorter delivery time and competitive cost to meet the demands of our worldwide customers.

MINLE Machinery had provided many types of effective and states of the art concrete pump machines to over 36 countries. Our main customers are from Saudi Arabia,Vietnam, Malaysia, Poland, Hong Kong, Malaysia, Hungary, Mexico, Ecuador, Brazil, Pakistan,Thailand, Qatar, Bangladesh,Indonesia, Ethiopia, Somalia, Nigeria, Singapore, Philippines, Sri Lanka, India, Madagascar, UAE, Saudi Arabia, Kenya, Ghana, South Africa, Swaziland, Mongolia, etc.

We are willing to become your partners with our cost-performance, innovative concrete pump products, excellent quality and perfect after-sale service.

Wet Shotcrete Machine Wet Shotcrete Machine Wet Shotcrete Machine Wet Shotcrete Machine Wet Shotcrete Machine Wet Shotcrete Machine Wet Shotcrete Machine Wet Shotcrete Machine

Why choose our company?

1.High quality pipe with reasonable price.

2.Advanced test equipments and professional inspection measures to guarantee our quality.

3.Our products are widely used in construction, water supply and other fields.

4.The after-sale service is good, customers can buy our products without any worries

5.We can produce different kinds of pipes according to customers’ requirements.

6.We have exported our products to many foreign countries. Our products are popular among these countries.

7.Professional staff can save your time and money

Packing and shipping

Customer visit and the case aboard

Our service

12 months warranty.

We guarantee for free replacement or repair the key componentd which is ineffcient function or performance caused by poor material or technique.

(Damage caused by improper use and natural aging are not covered under the guarantee. )

l serve worldwide clients with high-quality products,devoted professional services
honorable credibility to meet customers' requirements

l supply you 24 hoursa day and 7 days a week after-sale services.

FAQ

Are you manufacturer or trading company?

Yes, we are professional manufacturer of concrete pumps.

What is your MOQ?
One Set is ok for your trail order.

What is your payment term?
We can receive T/T, L/C, Western Union and trade assurance.

What is your main product?
Concrete pump Trailer/Concrete mixer pump/ Concrete mixer pump Truck /Truck mounted line pump /Concrete Boom Tuck/Wet shotcrete machine and other construction machines

What is the delivery time?
Most of the order will within 15 days, sometimes depend on your quantity and our present products plan.

How about your Warranty and after sale service?
Normally is about 12 months after leaving factory, but that can be negotiated based on our cooperation.

OEM or ODM is available?
Yes, we can produce with your logo and requirements.
