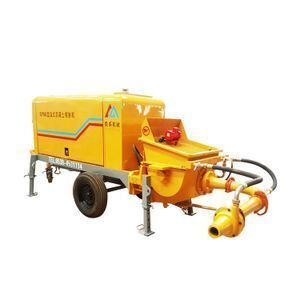

Factory Supply Diesel Trailer Shotcrete Concrete Spray Machine SPB8

Product details
Core Components:Engine,Motor,Pump;Packaging Detail:One 20 GP for one set. One 40'GP for two sets;
After-sales Service Provided:Engineers available to service machinery overseas,Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support;After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;
Warranty of core components:1 Year;Dimension(L*W*H):2976*1210*1435mm;
Single package size:41X14X15 cm;Brand Name:Minle;
Distribution valve:S valve;Local Service Location:Egypt,Canada,Turkey,United States,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Malaysia,Australia,Morocco,Kenya,Argentina,UAE,Colombia,Algeria,Bangladesh,South Africa,Kazakhstan,Nigeria,Uzbekistan,Tajikistan;
Place of Origin:Shandong China;Max Aggregate size:10mm;
Certification:BV, ISO;Power:18.5KW;
Air Consumption:10m3/min;Max Aggregate Size:10mm;
Keywords:concrete spraying machine;Machinery Test Report:Provided;
Video outgoing-inspection:Provided;Single gross weight:30.0 KG;
Applicable Industries:Manufacturing Plant,Construction works ,tunnel;Package Preview:;
Warranty:1 Year;Product name:Concrete Spraying Machine;
Capacity:8m3/h;Selling Units:Single item;
Max. Conveying Distance:80m;Weight:About1800kg;
Condition:New;UNIQUE SELLING POINT:High operating efficiency;
color:According to client's requirements;Voltage:380/660V;
Application:diesel;Max. theoretical outlet pressure:6Mpa;
Hose Inner Diameter:51;Showroom Location:Egypt,Canada,Turkey,United Kingdom,United States,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Morocco,Kenya,Argentina,UAE,Colombia,Bangladesh,South Africa,Nigeria,Uzbekistan,Tajikistan,Malaysia,Australia;
Marketing Type:Hot Product 2019;

Factory Supply Diesel Trailer Shotcrete Concrete Spray Machine  SPB8

contact:sara mao mobile/wechat/whatsapp:86-15866001919

concrete spraying machine is an advanced product in shotcreting technology enabling continuous flow with minimum rebound ensuring coverage of maximum area in shortest possible time thereby increasing the overall productivity of project. The wet shotcrete machine is often used to spay out the finished concrete mixed with accelerator from its nozzle to the construction surface. The nozzle is installed at the outlet of the pipe and the air is compressed and the concrete is ejected.

Features of concrete spraying machine

  • High quality, high working efficiency.
  • The water ash ratio is much easier to control and concrete coefficient is high, it can greatly improve the concrete quality and increase the concrete uniformity.
  • Hydraulic pumping method,  high system reliability, stable delivery volume. It is extensively used for concrete spraying, filling, grouting, pumping in construction projects.
  • Low rebound resilience. The concrete rebound resilience can be less than 10% when wet spray.
  • The injection quantity can be  continuously adjustable.
  • The main oil pump adopts a variable displacement plunger pump, and the injection speed can be adjusted freely (the maximum number of adjustments is not more than 10 times/min.)
  • The concrete accelerator quantity can be continuously adjustable according to the amount of spraying.
  • It greatly reduces the dust concentration around the machine and jet nozzle.
  • Longer life span of the wearing parts.
  • The consumable parts service life of the main engine is not lower than the spraying 4000m3.
  • Automatic lubrication system. Automatic controlled lubrication for main sealed parts, grease filling amount and filling time.
  • Intelligent automatic control can greatly prolong the life of vulnerable parts.
  • Humanized product design.
  • The use of remote control handle, easy to operate.
  • Easy to operate and maintain.
  • Competitive factory price.

    Advantages of concrete spraying machine
    1, High pumping pressure and long transmission distance.
    2, High efficiency, large displacement.
    3, Spare parts is not easy to loss, long service life.
    4, Simple and environment
    5, Multi-usage, it also can be used for wet spraying machine and concrete pump
  • Technical Parameter of concrete spraying machine



    Item

    SPB8

    Theoretical shotcrete capacity(m³/h)

    8

    Max. Delivery Pressure(Mpa)

    7.8

    Max. Conveying Distance(m)

    80

    Distribution valve

    S tube

    Concrete Cylinder Diameter(mm)

    Φ140×1000

    Main cylinder Diameter(mm)

    Φ80×Φ55×1000

    Outlet diameter(mm)

    Φ100

    Filling Height(mm)

    1080

    Hopper Capacity(L)

    400

    Diesel Power(Kw)

    39/50

    Working wind pressure(Mpa)

    0.6-0.8

    Air consumption(m³/min)

    ≥13

    Hydraulic oil circuit type

    Open loop

    Pumping system pressure(Mpa)

    26

    Distribution system pressure(Mpa)

    14

    Mixing system pressure(Mpa)

    12

    Hydraulic oil tank capacity(L)

    200

    Maximum aggregate size(mm)

    Crushed stone ≤ 10 pebble ≤ 15

    slump(mm)

    120-180

    Delivery pipe diameter(mm)

    Φ64

    Rebound rate

    ≤10%

    Dust concentration(mg/m³)

    ≤6

    Dimension(mm)

    4660×1510×1890








Company Information



Exhibition



MINLE Machinery had provided many types of effective and states of the art concrete pump machines to over 36 countries. Our main customers are from Saudi Arabia,Vietnam, Malaysia, Poland, Hong Kong, Malaysia,  Hungary, Mexico, Ecuador, Brazil, Pakistan,Thailand, Qatar, Bangladesh,Indonesia, Ethiopia, Somalia, Nigeria,  Singapore, Philippines, Sri Lanka, India, Madagascar, UAE, Saudi Arabia, Kenya, Ghana, South Africa, Swaziland, Mongolia, etc.



We are willing to become your partners with our cost-performance, innovative concrete spraying machine products, excellent quality and perfect after-sale service.

Welcome to visit our factory.

Transport and Pack



FAQ  concrete spraying machine

1. Whether  you need concrete pumps driven by diesel engine or Electric motor?

2. If you need electric motor one, please let us know your power situation, such as in China, it is 380Voltege & 50 HZ.

3. Let us know the vertical and horizontal delivery distance should reach. Or please let me know the tall building's total height.

4. The brand of hydraulic pumps you prefer, it is Germany Rexroth, Kawasaki, or Chinese Liyuan?

5. The brand of diesel engine you like, it is Cummins or Deutz or Chinese Weichai,yuchai?
