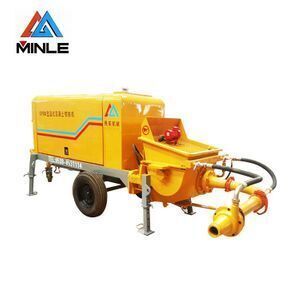

Mortar spraying machine wet shotcrete machine

Supplier: Tai'an Minle Machine Manufacture Co., Ltd.
Region: Shandong, China
Contact: Ms. Minle Machine
Price: $16000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Voltage:	380/660;	Applicable Industries:	Construction works ;
Single package size:	310X160X170 cm;	Max. Theorectical Output:	8m3/h;
Dimension(LWH):	310016001700mm;	Power(W):	18.5Kw;
Brand Name:	Minle;	After-sales Service Provided:	Engineers available to service machinery overseas;
Local Service Location:	Viet Nam,Philippines,Peru,Indonesia,Kenya,Colombia;	Showroom Location:	None;
Hose Inner Diameter:	51 mm;	Air Consumption:	10m3/min;
After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support;	Selling Units:	Single item;
Single gross weight:	2,100 KG;	Place of Origin:	Shandong China;
Certification:	ISO, BV;	UNIQUE SELLING POINT:	High operating efficiency;
Max Aggregate Size:	15mm;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Warranty:	1 year;	Condition:	New;
Diesel engine:	60kw yuchai;	Max. Conveying Distance:	Horizontal:240; Vertical:130;
Weight:	2100KG;

Mortar spraying machine wet shotcrete machiner

***

shotcrete machine

Item	SPB8
Production capacity	3-8m3/h
System pressure	15Mpa
Working wind pressure	0.4-0.6Mpa
Maximum aggregate diameter	15mm
Total Weight	2100kg
Dimensions	310016001700mm
main motor power	30kw
Voltage level	380v
Hopper volume	0.3m3
Concrete slump	12-18cm
Dust near the machine	≤6mg/m3
Feeding height	1.1m
Fuel tank capacity	145L
Rebound rate	≤10%

High working efficiency: adopt hydraulic pumping type, high system reliability and stable delivery capacity.

Continuously adjustable injection volume: The main oil pump uses a variable displacement plunger pump, and the injection speed can be adjusted freely (the maximum adjustment volume switching times is not greater than 16 times / min).

The amount of accelerator setting is continuously adjustable: it can be adjusted steplessly according to the shot volume.

Long life of wearing parts: The service life of the wearing parts of the host is not less than 4000m3.

Equipped with an automatic lubrication system: automatic lubrication of the main sealing parts, automatic control of grease filling amount and filling time, greatly prolonging the life of vulnerable parts.

Humanized design of the product: The remote control handle is adopted for more convenient operation.
