Casing Centralizer for Oil Pipe/Oil and Gas Bow Spring Centralizer

Supplier: Dongying Sino Petroleum Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Xiaobo Wang
Price: $10.00 / >=1000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

Applicable Industries:	Energy & Mining;	Port:	Qingdao Port;
Centralizer type:	Hinged Non - Welded Stainless Steel;	Application:	Oilwell Cementing;
Packaging:	Wooden Case;	Material:	65Mn Steel;
Supply Ability:	5000 Piece/Pieces per Month;	Length:	380mm;
Advantage:	Low Friction Coefficient;	Packaging Detail:	plywood case or according to customer's requirement;
Type:	spring non-welded type;	Product name:	Bow Spring Centralizer;
Feature:	Highest Restoring Force;	Model Number:	5 1/2-8 1/2;
Payment Terms:	L/C,T/T,Western Union;	Size:	4 1/2''-20'';
Certification:	API 10D;

Casing Centralizer for Oil Pipe/Oil and Gas Bow Spring Centralizer

Company Information

Sino Petro company is a professional well head manufacturer and supplier of various oilfield equipment, which has API 6A,ISO9001,14001,OHSAS 18001 , so on . Main products include oil drilling and service equipment,oil production equipment,OCTG ,wellhead gate, Christmas tree, kill and chock manifold & downhole tools and spare parts with API certification. our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). Sino Petro company has become VIP (assigned) supplier and built strategic partnership with some coutries' national petroleum companies.

Product Description

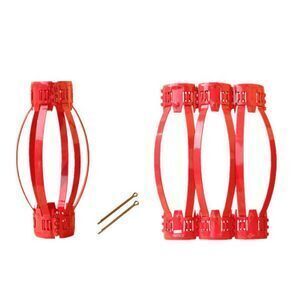

casing bow spring centralizer

Super-strength spring steel is applied to centralize casing in wellbore,and improve cementing quality.

Features:
1,Every attachment is pressed into shape by moulding instead of welding and rivet.
2,3-section structure for easy transport.
3,Starting force and restoring force conform to API standards.
4,Easy-and-convenient to use.
5,Alternative turbulence plates can effectively improve displacement efficiency.

API 10d Single Piece Centralizer, Slip on Casing Centralizer

1) Material: 65Mn steel

2) Type: Single Piece

3) Standard: API 10D

4) API and ISO certified

5) Specifications: 4 1/2''---20''. More special sizes or combination are available as requested

6) Characteristic: This kind of single piece casing centralizer has restoring force almost two times of API standard.

7) Application Bow spring centralizers are to help center the casing in the wellbore, allowing even distribution of the cement around the casing during cementing operations. The single piece casing centralizer is made from special high strength steel (65Mn steel), which gives more excellent hardness and spring action than other types of centralizers.

8) Function a. Take casing to designed position by reducing sticking while casing going down. b. Centralize casing in well. c. Balance liquid pressure in annular space by reducing adhesion phenomenon. d. Improving replacing ratio of mud and boosting cementing quality by reducing channeling effect.

9) Features: a. Designed for high restoring force and low starting&running force b. Undergo special coating process to prevent from rust

10) Parameter

Model	Hooping In-Dia. (mm)	Total length	Max.Out-Di	Amount of spring(mm)
(in)	Hooping In-Dia. (mm)	(mm)	(mm)	Amount of spring(mm)
5-1/2" x 8-1/2"	142-148	650±50	225±5	5
7" x 9-5/8"	181-186	650±50	255±5	6
7" x 8-1/2"	181-186	650±50	235±5	6
8-5/8 x 12-1/4"	223-228	650±50	330±5	8
9-5/8 x 12-1/4"	250-255	650±50	330±5	8
10-3/4 x 12-1/4"	274-276	650±50	330±5	9
13-3/8"x17-1/2"	342-347	650±50	450±5	11
18-5/8"x24"	475-477	600±50	610±5	12
20"x26"	509-511	600±50	660±5	12
