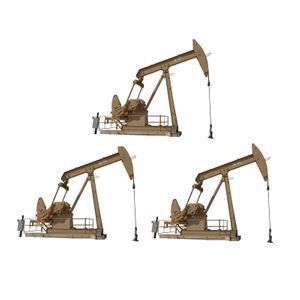

API 11E Conventional Beam pumping unit/pump jack
-
Supplier: Dongying Sino Petroleum Machinery Co., Ltd. -
Region: Shandong, China -
Contact: Mr Xiaobo Wang -
Price: $25000.00 /set -
Min. Order: 1 set
| Condition: | New; | Balance: | Crank; |
| Selling Units: | Single item; | Weight: | 20T; |
| Gear type: | Double Circular Arc Gear Reducer; | Brand Name: | sino; |
| Voltage: | 380; | Stroke (in): | 192,165,138; |
| Certification: | API; | Max. Load: | 305; |
| Single package size: | 100X50X50 cm; | Single gross weight: | 50 KG; |
| After-sales Service Provided: | Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service; | Product name: | API 11E Conventional Beam pumping unit/pump jack; |
| Package Type: | bundling packing API 11E Conventional Beam pumping unit/pump jack; | Rated Torque: | 640; |
| Warranty: | 1 Year; | Model Number: | API C-640D-305-192; |
| Applicable Industries: | Energy & Mining,oilfield; | Standard: | API 11 E; |
| Place of Origin: | China; |
API 11E Conventional Beam pumping unit/pump jack
Brief Introduction
Conventional API C pumping units with walking beams, balanced by cranks, are among the most common and most widely used power units in rod production on oil fields.Products comply with Specifications of Pumping Units (API Spec 11E) and other related standards, and have acquired the authorization to use Official API Monogram.
Technical Performance & Characteristics
1. Modular and virtual manufacturing technologies are adopted in design, so that the structure of products is optimized and components are highly standardized, generalized and seriated.
2. Key structural elements are subject to finite element analysis to ensure stable performance and high reliability.
3. Reducers are driven by double-arc symmetrical split or involute herringbone wheels that are properly sealed and distinguished with low noise, smooth operation, reliable and durable service.
4. The entire machine features simple operation and maintenance and extended service life.

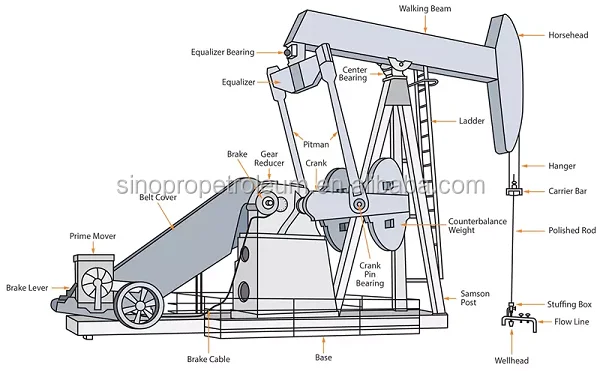

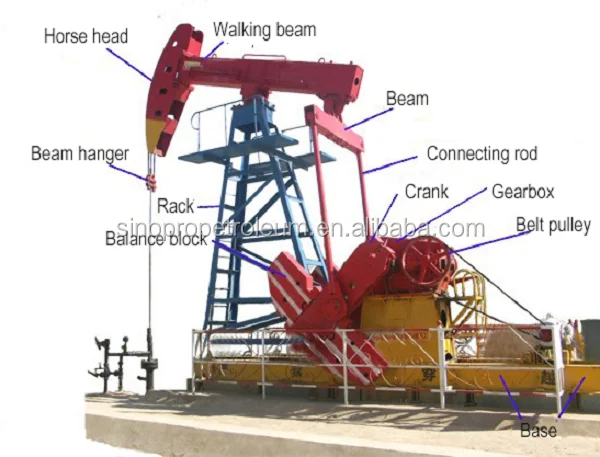

Structure of pumping unit jack (sucker rod pumping)
PUMPING UNIT JACK SPECIFICATION
| No | Type | Polished Rod Capacity | Stroke Length | Rated Torque |
| (lbs) | (in) | (in.lbs) | ||
| 1 | C-912D-470-240 | 47,000 | 240, 211, 181 | 912,000 |
| 2 | C-912D-427-216 | 42,700 | 216, 185, 155 | 912,000 |
| 3 | C-912D-427-192 | 42,700 | 192, 165, 138 | 912,000 |
| 4 | C-912D-305-192 | 30,500 | 192, 165, 138 | 912,000 |
| 5 | C-912D-365-168 | 36,500 | 168, 144, 121 | 912,000 |
| 6 | C-912D-305-168 | 30,500 | 168, 144, 121 | 912,000 |
| 7 | C-912D-427-144 | 42,700 | 144, 123, 102 | 912,000 |
| 8 | C-640D-305-192 | 30,500 | 192, 165, 138 | 640,000 |
| 9 | C-640D-305-168 | 30,500 | 168, 144, 121 | 640,000 |
| 10 | C-640D-365-144 | 36,500 | 144, 123, 102 | 640,000 |
| 11 | C-640D-305-144 | 30,500 | 144, 123, 102 | 640,000 |
| 12 | C-640D-256-144 | 25,600 | 144, 123, 102 | 640,000 |
| 13 | C-640D-305-120 | 30,500 | 120, 102, 84 | 640,000 |
| 14 | C-456D-305-168 | 30,500 | 168, 144, 121 | 456,000 |
| 15 | C-456D-305-144 | 30,500 | 144, 123, 102 | 456,000 |
| 16 | C-456D-256-144 | 25,600 | 144, 123, 102 | 456,000 |
| 17 | C-456D-365-120 | 36,500 | 120, 102, 84 | 456,000 |
| 18 | C-456D-305-120 | 30,500 | 120, 102, 84 | 456,000 |
| 19 | C-456D-256-120 | 25,600 | 120, 102, 84 | 456,000 |
| 20 | C-320D-256-144 | 25,600 | 144, 123, 102 | 320,000 |
| 21 | C-320D-256-120 | 25,600 | 120, 102, 84 | 320,000 |
| 22 | C-320D-213-120 | 21,300 | 120, 102, 84 | 320,000 |
| 23 | C-320D-305-100 | 30,500 | 100, 85, 70 | 320,000 |
| 24 | C-320D-256-100 | 25,600 | 100, 85, 70 | 320,000 |
| 25 | C-320D-213-86 | 21,300 | 86, 71, 56 | 320,000 |
| 26 | C-228D-213-120 | 21,300 | 120, 102, 84 | 228,000 |
| 27 | C-228D-173-100 | 17,300 | 100, 86, 72 | 228,000 |
| 28 | C-228D-246-86 | 24,600 | 86, 71, 56 | 228,000 |
| 29 | C-228D-213-86 | 21,300 | 86, 71, 56 | 228,000 |
| 30 | C-228D-200-74 | 20,000 | 74, 64, 54 | 228,000 |
| 31 | C-228D-173-74 | 17,300 | 74, 64, 54 | 228,000 |
| 32 | C-160D-173-86 | 17,300 | 86, 74, 62 | 160,000 |
| 33 | C-160D-200-74 | 20,000 | 74, 64, 54 | 160,000 |
| 34 | C-160D-173-74 | 17,300 | 74, 64, 54 | 160,000 |
| 35 | C-160D-143-74 | 14,300 | 74, 64, 54 | 160,000 |
| 36 | C-160D-173-64 | 17,300 | 64, 54, 44 | 160,000 |
| 37 | C-114D-119-86 | 11,900 | 86, 72, 59 | 114,000 |
| 38 | C-114D-143-74 | 14,300 | 74, 62, 51 | 114,000 |
| 39 | C-114D-173-64 | 17,300 | 64, 54, 44 | 114,000 |
| 40 | C-114D-143-64 | 14,300 | 64, 52, 40 | 114,000 |
| 41 | C-114D-133-54 | 13,300 | 54, 45, 36 | 114,000 |
| 42 | C-80D-119-64 | 11,900 | 64, 53, 42 | 80,000 |
| 43 | C-80D-133-54 | 13,300 | 54, 45, 36 | 80,000 |
| 44 | C-80D-119-54 | 11,900 | 54, 45, 36 | 80,000 |
| 45 | C-80D-133-48 | 13,300 | 48, 40, 32 | 80,000 |
| 46 | C-80D-109-48 | 10,900 | 48, 37, 25 | 80,000 |
| 47 | C-57D-76-54 | 7,600 | 54, 41, 28 | 57,000 |
| 48 | C-57D-109-48 | 10,900 | 48, 37, 25 | 57,000 |
| 49 | C-57D-95-48 | 9,500 | 48, 37, 25 | 57,000 |
| 50 | C-57D-89-42 | 8,900 | 42, 33, 23 | 57,000 |
| 51 | C-57D-76-42 | 7,600 | 42, 33, 23 | 57,000 |
| 52 | C-40D-76-48 | 7,600 | 48, 37, 27 | 40,000 |
| 53 | C-40D-89-42 | 8,900 | 42, 33, 23 | 40,000 |
| 54 | C-40D-76-42 | 7,600 | 42, 33, 23 | 40,000 |
| 55 | C-40D-89-36 | 8,900 | 36, 28, 20 | 40,000 |
| 56 | C-25D-67-36 | 6,700 | 36, 28, 20 | 25,000 |
| 57 | C-25D-56-36 | 5,600 | 36, 28, 20 | 25,000 |
| 58 | C-25D-53-30 | 5,300 | 30, 20 | 25,000 |

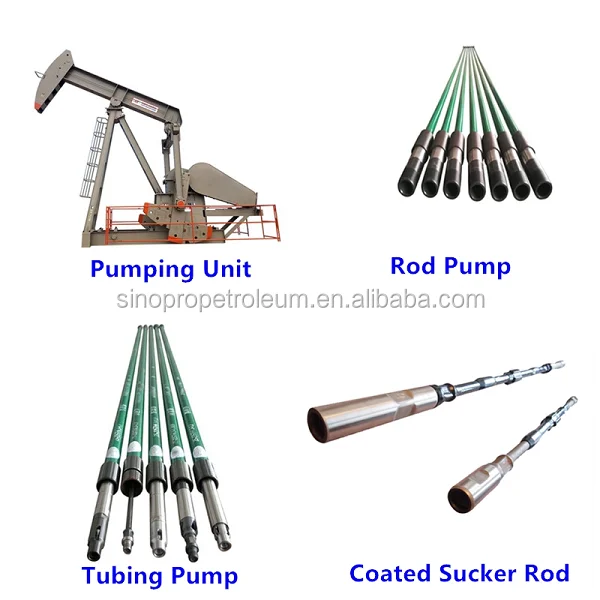

Oilwell API sucker rod beam pumping unit
Why you need to choose Sino Petro?
As a professional oil and gas service company, Sino Petro has many good experience in selling and serves for the oilfield industries for years. Quality is the culture of the company, we provide API and BV certified products for customer.
Can you make us the best quality products as well as a good price?
Yes, we can give you really high quality products with competitive price. We have a better understanding in Chinese market, with us yourmoney will be safe.
What is special compare with other companies?
First, we provide the quality products, with BV and API certified; At the same time, we provide our customer with the best service after sale, any time any where.
Sino Petro company is a professional well head manufacturer and supplier of various oilfield equipment, which has API 6A,ISO9001,14001,OHSAS 18001 , so on . Main products include oil drilling and service equipment,oil production equipment,OCTG ,wellhead gate, Christmas tree, kill and chock manifold & downhole tools and spare parts with API certification. our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). Sino Petro company has become VIP (assigned) supplier and built strategic partnership with some coutries' national petroleum companies.
