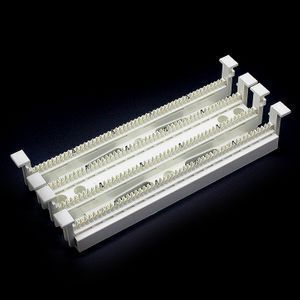

100 pairs 110 block wiring terminal block with legs 110 type electrical connection block

 1.Complient with TIA/EIA and ISO Cat5e Cat6 Standard

 2.Unshielded or shielded optional

 3.Module jack type or 110 type optional

 4.Matched with 19 inches machine cabinet with varied sizes of 1U 2U

100 pairs 110 wiring blocks without legs

Feature:

1.meet T568A & T568B line sequence and 19" international standards;

2.Designed and produced according to the ISO/IEC 11801 standards;

3.support voice and high - speed data application;

4.Material for base and IDC Housing: PC UL94V-0;

5.IDC contract  mateiral: phosphor bronze with tin plating over nickel;

6.Wire: 22-26 AWG with a insulation diameter of 0.4-0.64 mm;

7.Voltage rating: 125 VAC RMS,Current rating: 1.5 AMP,

  Contact resistance: 100 milliohms max;

  Insulation resistance: 1000 megohms min @ 500 VDC;

  Dielectric strength: 750 VAC RMS 60HZ, 1MIN
