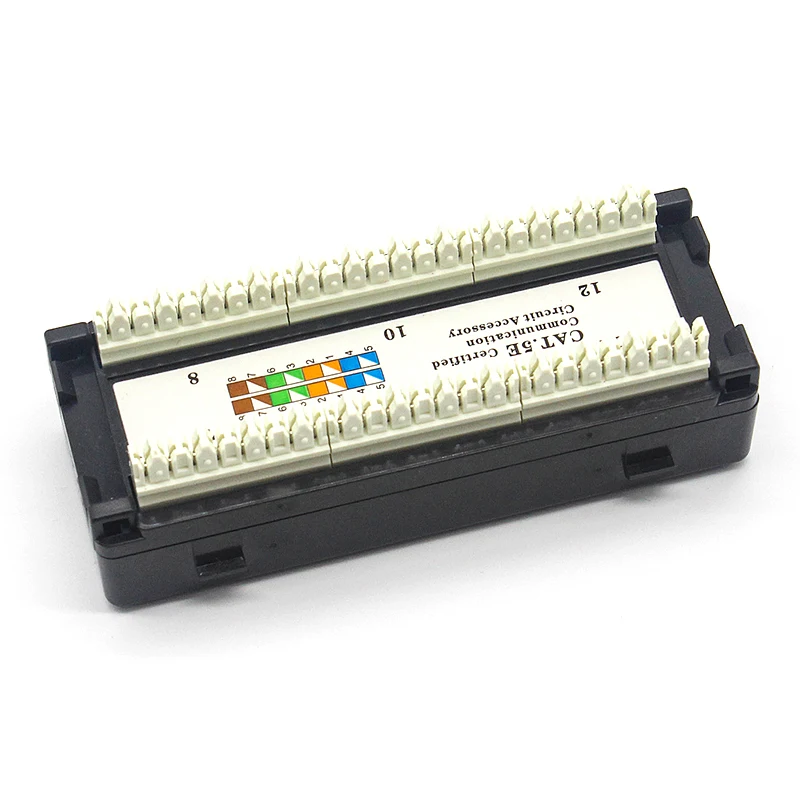

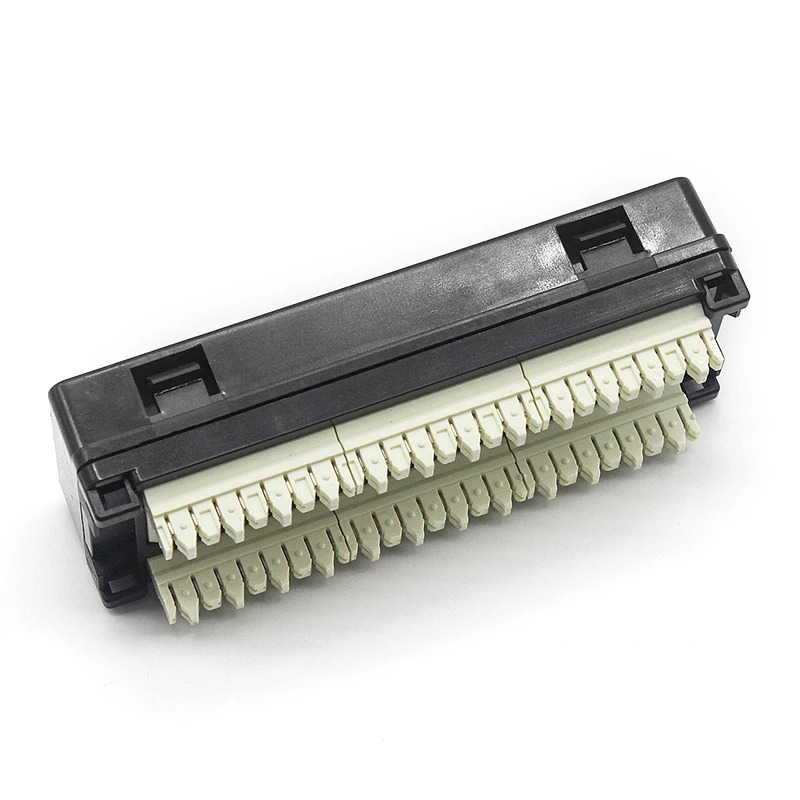

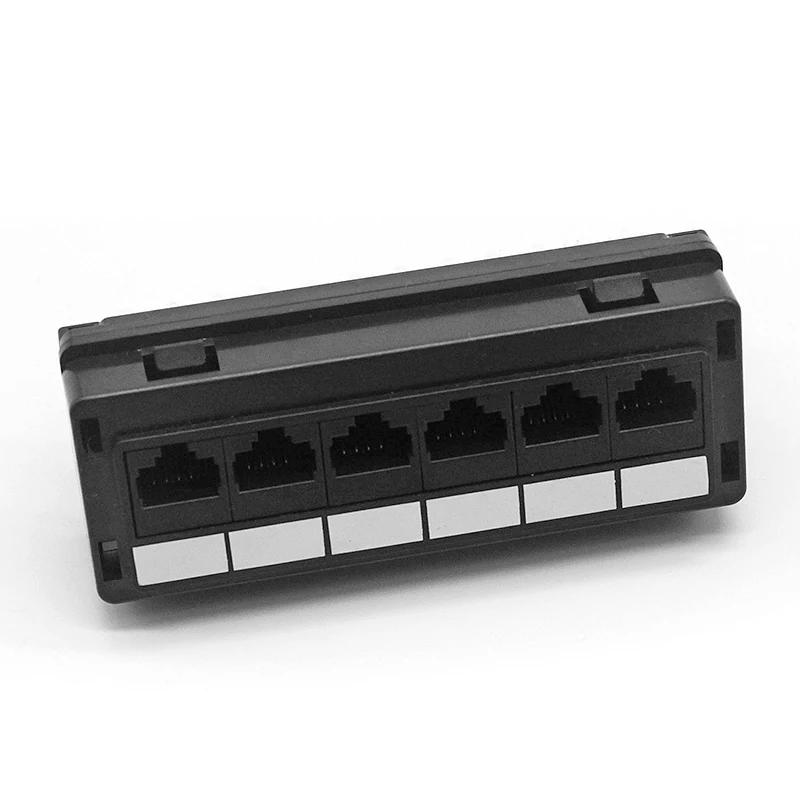

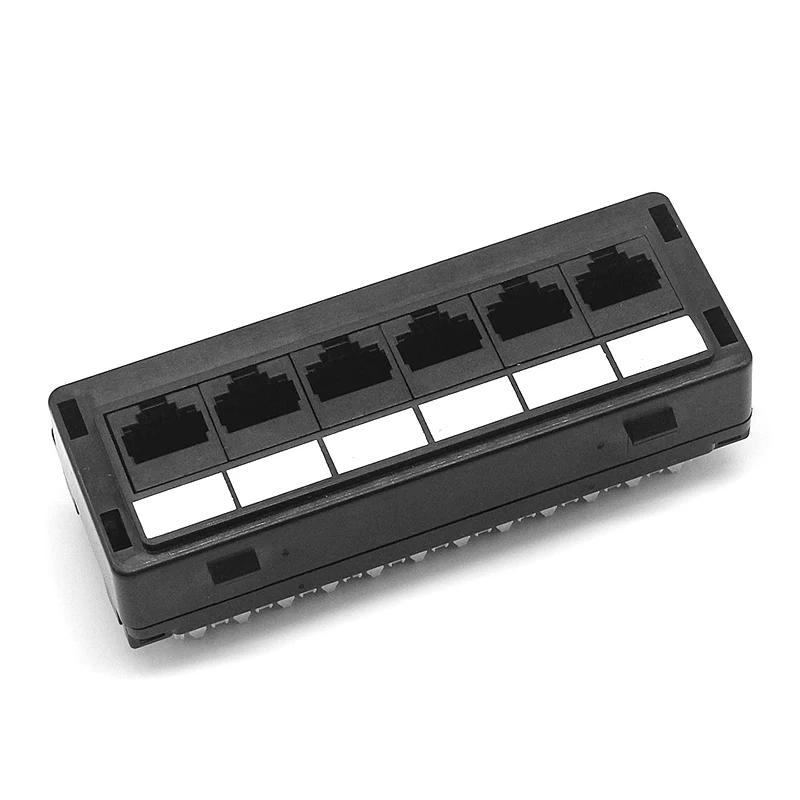

hot sale patch panel cat 6 commonly used patch panel 12 port patch panel

Product details
Type:cat 6;hole:6;
Place of Origin:Zhejiang China;Brand Name:YIFAN;
Color:Black;IDC Accept:22-26 AWG;
Selling Units:Single item;Insertion Time:1000 Matching Cycles;
Model Number:PXJ-001;Single gross weight:0.4 KG;
Single package size:15X8X8 cm;NAME:patch panel;
Material:CRS;Package Preview:https://sc01.alicdn.com/kf/HLB19Y.9TbPpK1RjSZFFq6y5PpXa7.jpg_640x640.jpg;

Product Description



General description of 6 Port Fiber Patch Panel

  1.19" 1U 6 port  CAT6A Patch Panel with cable managament
  2.Operation temperature:-40°C to 60°C, Relative
  humidity:85%(30°C), Air pressure:70-106Kpa
  3.Complete metalation and reed construction
  4.Suitable for 22AWG/23AWG/24AWG/26AWG solid wires
  5. Color: black, RAL 9005
  6.Printing:white
  7.Labelling fields:1-24



   Features:

  1.Front Panel: 1.5mm thickmness metal
               panel(SPCC), painting on surface
  2.Metallic Frame: 1.5mm thickness
  3. Housing material: ABS or PC, UL94-V0 or UL94-V2
  4. Meet or exceed the current T568A and T568B standard
  5. Termination: Dual IDC, 110 IDC, Krone IDC
  6. Panel frame: black or Ivory electrostatic powder-coated steel
  7. IDC contact material: phosphor brone with tin plating over nickel
  8. contact material: phosphor brone with gold plating over nickel
  9. Punching duration:≥250 times
  10. Inserting duration:≥750 times
  11. Dielectric withstand voltage: 1000V AC RMS, 60Hz 1min
  12. Insulation Resistance: 500M-ohm
  13.High reliability and superior performance







1.Complient with TIA/EIA and ISO Cat5e Cat6 Standard

 2.Unshielded or shielded optional

 3.Module jack type or 110 type optional

 4.Matched with 19 inches machine cabinet with varied sizes of 1U 2U





HOT SALE

Packaging & Shipping



Company Information

Our Services

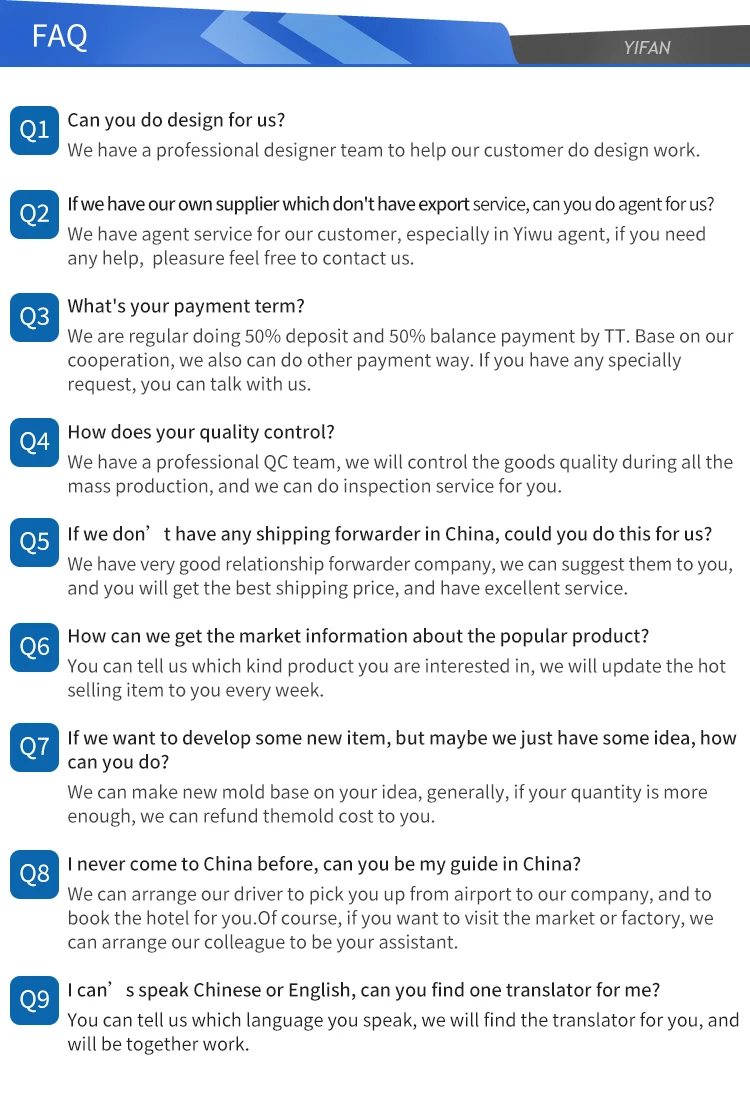

FAQ
