GSE Self-propelled conveyor belt loader for aviation equipment

  • Supplier: Xiamen Ltmg Co., Ltd.
  • Region: Fujian, China
  • Contact: Ms Susan Li
  • Price: $35000.00 /unit
  • Min. Order: 1 unit
Product details
Conveying speed:0.2-0.5 m/s;Wheel base:2900mm;
Overall Dimension:8000*2100*1650 mm;Place of Origin:China;
Payment Terms:L/C,T/T,Western Union,MoneyGram;Max Grade ability:30%;
Function:baggage belt loader;Brand Name:ltmg;
Product name:GSE Self-propelled conveyor belt loader for aviation equipment;Packaging Detail:Nude packing, delivered by container;
aviation equipment:baggage tow tractor,passenger stair is optional;Ground Clearance:145 mm;
Operating Weight:3200 kg;Port:Shanghai port, CHINA;
Belt Width:700mm;Supply Ability:500 Unit/Units per Month Self-propelled conveyor belt loader;
Product Description

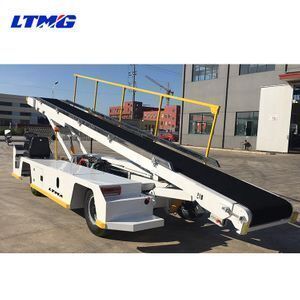

GSE Self-propelled conveyor belt loader for aviation equipment


The Model LT-BL80 Self-propelled Conveyor Belt Loader is the most up-to-date design from LTMG. The model is the universal type that is suitable for the aircraft cargo and luggage service in the airports. The configuration adopts the mature vehicle parts from technology of both China and western countries. The belt loader is reliable in performance and easily for operation and maintenance.

Product Feature
Power System
(JAPANESE ISUZU ENGINE)
Engine Model: JMC JX493 (ISUZU 4JB1 OEM)Type: Four cylinders, Four strokes, Water coolant, Straight line, EU Stage II emission standard
Transmission System
(OKAMURA AUTOMATIC TRANSMISSION)
Model: Y43280D, Japanese Origin
Type: Hydraulic automatic transmission, single stage torque converter, 2 Phase, 3 components comprehensive type, simple structure and stable performance.

Front Axle type

Steering axle with hydraulic disc brake, single-side double-clamp twin cylinder brake, with pay load of 3ton.

Rear Axle type

Driving axle with drum type walking brake and parking brake, with 3Ton pay load.

Electric System

12V DC Electric system, negative grounded
80Ah Maintenance Free Battery, LED Light for Complete vehicle including Head light, CAN Wiring device, High qualified vehicle gear shifter, Germany original Weidmuller Relays.

1)The front drive roller is PU rubber packed in diameter of 210mm, which provides adequate friction and have long service life.

2)The rear end is belt tension assembly with 160mm adjusting range for forward and back, which makes the conveyor belt easily disassembled and maintained.

3)The load rollers are in thickness of 2mm. The distance between both front and rear ends are 700mm which can prevent luggage not being crashed during transportation. The middle distance is 180mm which makes it is easily for maintenance.

Specification
Technical Parameters
Brand
LTMG
Overall Dimension
8000×2100×1650 mm
Min. Turning Radius
6500mm
Wheel base
2900mm
Front Wheel tread
1725mm
Rear Wheel tread
1695mm
Max Grade ability (°)
30
Ground Clearance
145 mm
Shipping Weight
3200 kg
Belt Width
700 mm
Boom Length
8000 mm
Conveying speed
0.2-0.5 m/s
Max distribution load of conveyor belt
135 Kg/m
Work height range of front end
1200-4350 mm
Height range of rear conveyor end
1600-450mm
Max Inclination angle
29°
Packing & Delivery
Related Products

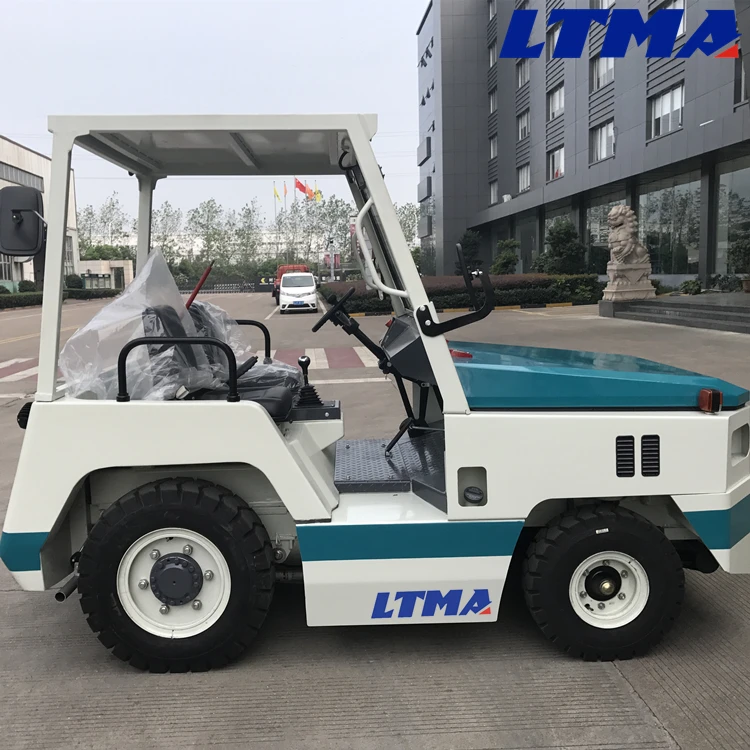

2.5 ton baggage towing tractor

91.8% Response Rate

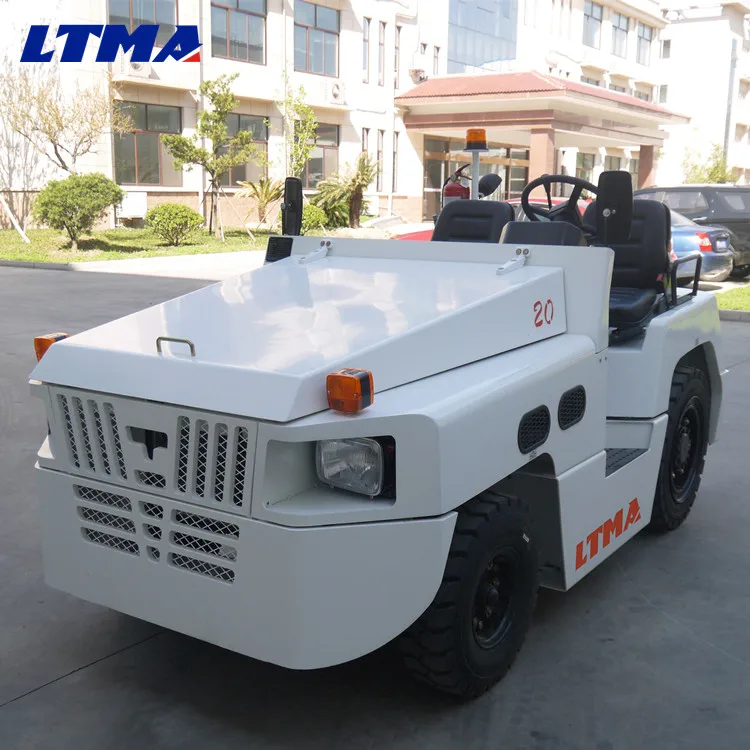

2 ton luggage tow tractor
