Product details

Min. Turning Radius:	6500mm;	Function:	delivery luggage in airport;
Conveying speed:	0.2-0.5 m/s;	Place of Origin:	Fujian China;
Ground Clearance:	145 mm;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Overall Dimension:	800021001650 mm;	Max Grade ability:	30%;
Operating Weight:	3200 kg;	Supply Ability:	500 Unit/Units per Month conveyor belt loader;
Item:	airport baggage belt loader;	Belt Width:	700mm;
Packaging Detail:	Nude packing, delivered by container;	Port:	Shanghai port;
Brand Name:	LTMG;	Wheel base:	2900mm;

Product Description

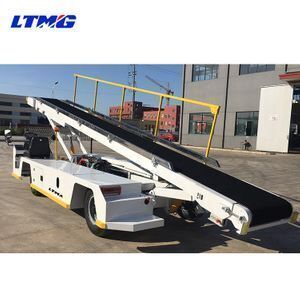

The Model HT-BL80 Self-propelled Conveyor Belt Loader is the most up-to-date design from LTMG. The model is the universal type that is suitable for the aircraft cargo and luggage service in the airports. The configuration adopts the mature vehicle parts from technology of both China and western countries. The belt loader is reliable in performance and easily for operation and maintenance.

Product Feature

Power System (JAPANESE ISUZU ENGINE)	Engine Model: JMC JX493 (ISUZU 4JB1 OEM)Type: Four cylinders, Four strokes, Water coolant, Straight line, EU Stage II emission standard
Transmission System (OKAMURA AUTOMATIC TRANSMISSION)	Model: Y43280D, Japanese Origin Type: Hydraulic automatic transmission, single stage torque converter, 2 Phase, 3 components comprehensive type, simple structure and stable performance.

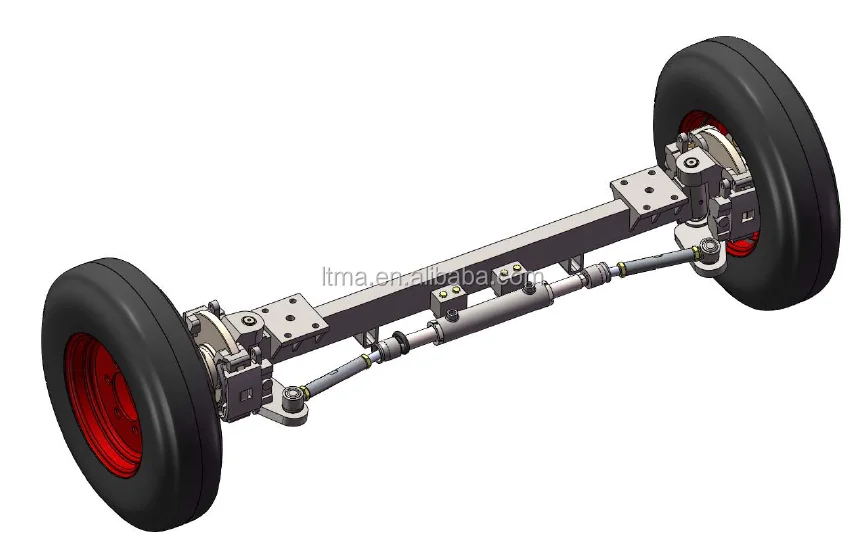

Front Axle type

Steering axle with hydraulic disc brake, single-side double-clamp twin cylinder brake, with pay load of 3ton.

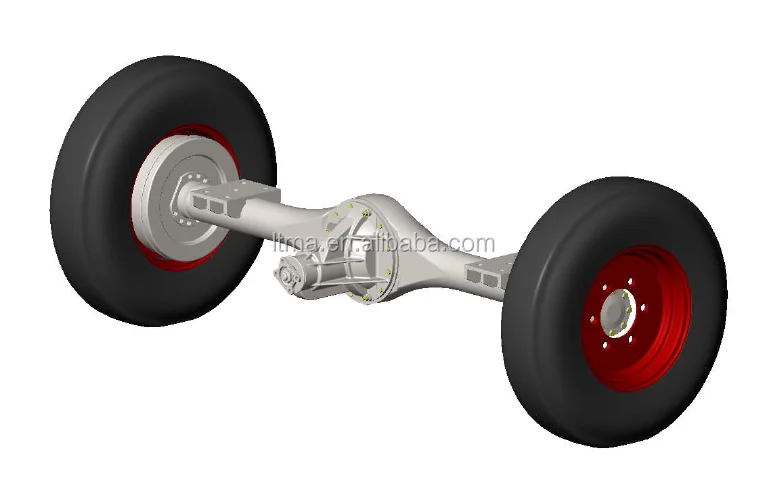

Rear Axle type

Driving axle with drum type walking brake and parking brake, with 3Ton pay load.

Electric System

12V DC Electric system, negative grounded

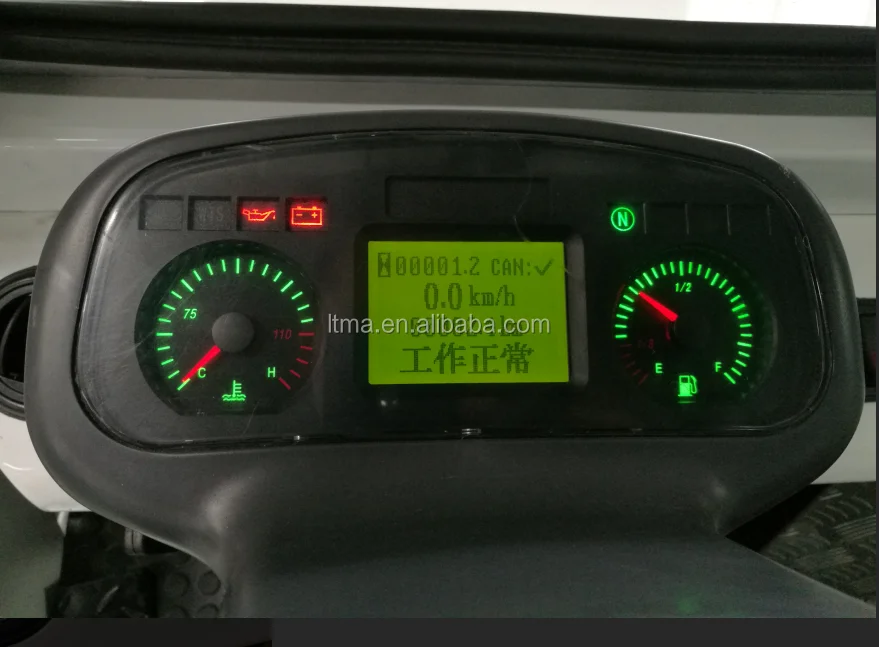

80Ah Maintenance Free Battery, LED Light for Complete vehicle including Head light, CAN Wiring device, High qualified vehicle gear shifter, Germany original Weidmuller Relays.

1)The front drive roller is PU rubber packed in diameter of 210mm, which provides adequate friction and have long service life.

2)The rear end is belt tension assembly with 160mm adjusting range for forward and back, which makes the conveyor belt easily disassembled and maintained.

3)The load rollers are in thickness of 2mm. The distance between both front and rear ends are 700mm which can prevent luggage not being crashed during transportation. The middle distance is 180mm which makes it is easily for maintenance.

Specification

Technical Parameters
Brand	LTMG
Overall Dimension	8000×2100×1650 mm
Min. Turning Radius	6500mm
Wheel base	2900mm
Front Wheel tread	1725mm
Rear Wheel tread	1695mm
Max Grade ability (°)	30
Ground Clearance	145 mm
Shipping Weight	3200 kg
Belt Width	700 mm
Boom Length	8000 mm
Conveying speed	0.2-0.5 m/s
Max distribution load of conveyor belt	135 Kg/m
Work height range of front end	1200-4350 mm
Height range of rear conveyor end	1600-450mm
Max Inclination angle	29°

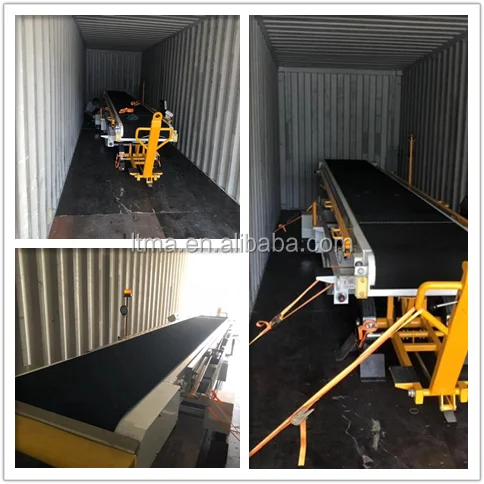

Packing & Delivery

LTMG Customer

LTMG Service

After-sale Service

LTMG always treat after-sale service important as the same as product quality.
LTMG grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us.
LTMG can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advises, your machine service life can be significantly prolonged and sustained with high capacity.
