LTMG container diesel forklift truck 7 ton 6 ton 5 ton forklift price

Supplier: Xiamen Ltmg Co., Ltd.
Region: Fujian, China
Contact: Ms Susan Li
Price: $13910.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Fork Length:	1220mm;	After-sales Service Provided:	Overseas third-party support available;
Condition:	New;	Warranty:	1 year or 2000 working hours;
Brand Name:	LTMG;	Place of Origin:	Zhejiang China (Mainland);
Mast:	2 Stage (3 Stage is optional);	Overall Dimensions:	345519952500mm;
After-sales Service Provided:	Field maintenance and repair service;	Min. Lifting Height:	0;
Engine:	ISUZU/ Mitsubishi;	Packaging Detail:	Container or bulk;
Port:	Ningbo port;	Power Souce:	Diesel Engine;
Warranty:	1 year or 2000 working hours;	Number of cylinders:	6;
Tire:	Pneumatic Tire;	Type:	Powered Pallet Truck;
Wheel base:	2250mm;	Applicable Industries:	Manufacturing Plant,Farms,Construction works ,Energy & Mining;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Transmission type:	Automatic Tranmission;
Optional:	side shifter, fork positioner,Cab with A/C;	Supply Ability:	1000 Unit/Units per Month 5 ton diesel forklift truck;
Max. Lifting Height:	6000mm;	Certification:	CE/ISO9001;
Fork Width:	150mm;	Color:	Customer Demanded;

Product Description

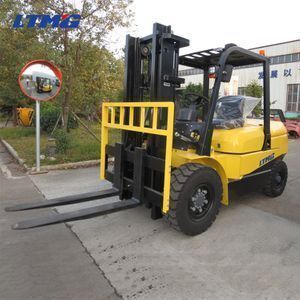

The specification of 5 ton diesel forklift

Specifications of LTMG 3000mm lifting height forklift 5 ton diesel forklift price
Manufacturer		LTMG
Model		FD50
Load capacity		5000 kg
Load center		600 mm
Power unit		Diesel
Operator type		Driver/seat
Tire type		Pneumatic
Wheel	Front/rear	2/2
Max. lifting height		3000 mm
Free lift		140 mm
Fork size	LWT	122015060 mm
Tilt range	Mast forward/backward	6/12 deg
Overall length(without fork)		3183 mm
Total width		1485 mm
Mast height (fork lowering)		2390 mm
Overall height fork raised	With backrest	4295 mm
Height to head guard		2270 mm
Turning raduis(outside)		2865 mm
Front face of fork to front axle		560 mm
Min. right angle stacking aisle	pallet size :1100×1100 add clearence	4670 mm
Speed	Max Travelling full/no load	18/19 km/h
	Lifting full/no load	380/430 mm/s
	Lowering full/no load	380/340 mm/s
Max.drawbar pull	full/no load	4500/2000 kg
Gradeability at 1.6km/h	full load	25%
Truck weight		7000 kg
Weight distribution	Full load front/rear	10280/1790 kg
	No load front/rear	3330/4500 kg
Tires	Number	front/rear	2/2
	Model	front axle	300-15-18PR
		rear axle	7.00-12-12PR
Wheelbase		2000mm
Tread	Front/rear	1180/1190mm
Ground clearence	At lowest point(mast)	100mm
	Frame	240mm
Brake	Service brake	power brake
	Parking brake	Mechanical-hand lever
Battery	Voltage/capacity	2-12/80(V/AH)
Engine	Model	MITSUBISHI S6S	ISUZU 6BG1
	Rated power	52/2300(kw/rpm)	112/2000(kw/rpm)
	Rated torque	248/1700(N-m/rpm)	42.5/1500(N-m/rpm)
	Number of cylinders	6	6
	Displacement	4.996L	6.494L
Fuel tank capacity		80L
Transmission		shift stage(front/rear type)	2-1 power shift T/M
Operating pressure		Hydraulic system pressure	200 kg/cm²

Product Features

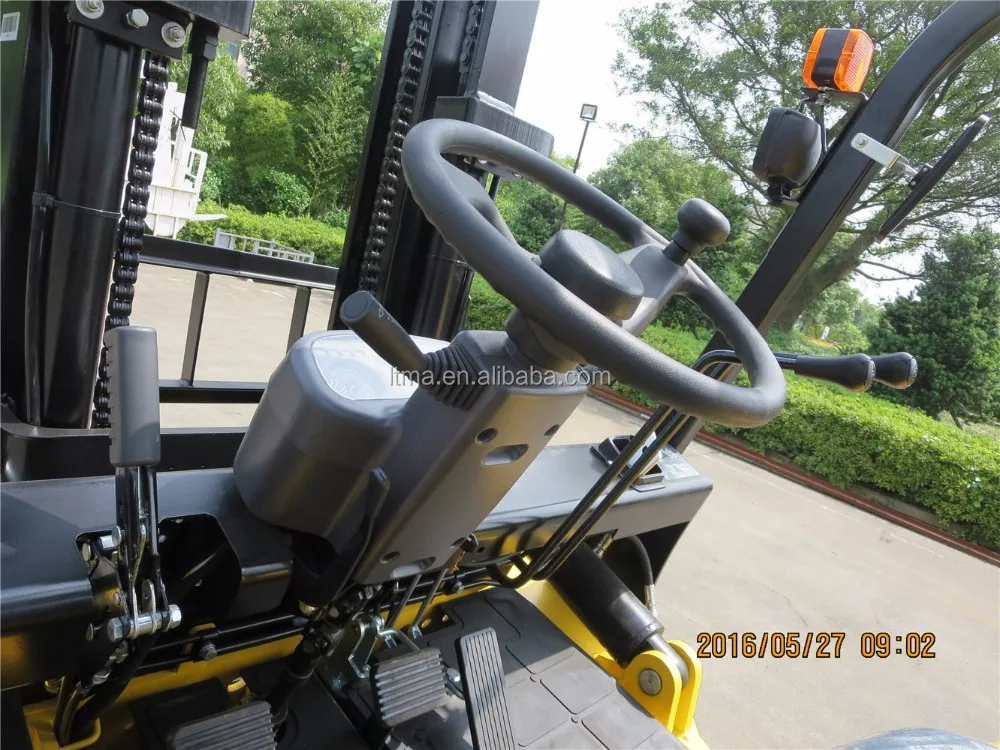

Steering system.

Steering system with the horizontal cylinder provides with the flexible and convenient veer operation and maintainability.

Toyota seat.

Ergonomics adjustable seat designed according to the ergonomic principles,make the operation much comfortable and also relieves the fatigue caused by long time continuous operation.

1.Safe :
LED work lights and warning lights make it safer and more efficient evenin poor lighting conditions.
New designed overhead guard protective device prevent the sudden accidents.
Thicker reinforcing plate ensure the safety and efficiency.

2.Easy to operate:
Linde-Technology single chain with reinforced load backrest--makes an excellent and wider field of visionfor operator.

3.Beautiful and comfortable:
New suspension adjustable seat makes the long time operating more comfortable.
Step area is 1.5 times larger with lower step height than fellow forklifts.

4.Durable :
Sunken tilt cylinder under the floor build broader flat floor and less abrasion.
Change plastic slider to alloy copper slider, reduce the abrasion and narrow the gap between masts.
Thicker steering axle bridge deck.

5.Environmental:
Middle muffler, more environmental.

6.High technology:
Maintenance free radiators adopt Germany technology.

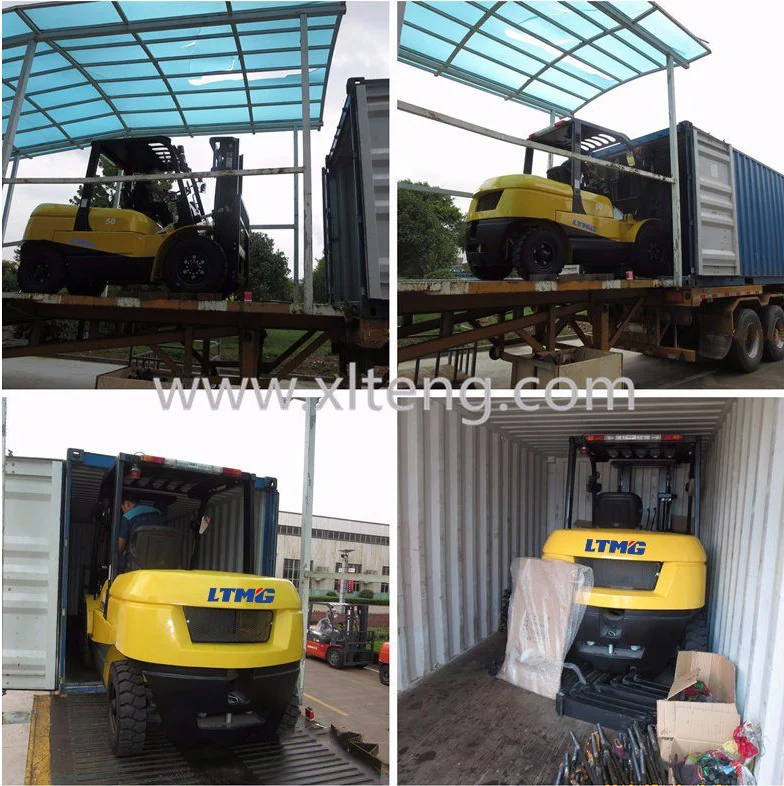

Packing & Delivery

Our Factory

Our Customers

After-Sales Service

LTMG always treat after-sale service as important as sale. Nowadays more than 50 agents around the world can supply LTMG professional after-sale service.

All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.

Detail clauses and policies please check our website and product certificate.

FAQ

1. What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
LTMG never recruit Underage labor.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
