Min.lifting height: | 85mm; | Single gross weight: | 68.000 KG; |
Package Preview: | ; | Condition: | New; |
Selling Units: | Single item; | Warranty: | 1 Year; |
Core Components: | Pump; | Packaging Detail: | Fixed in container ,Nude packing; |
Battery: | 12V/45AH; | Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Other,Advertising Company; |
Product name: | 1.5 ton electric stacker; | Brand Name: | LTMG; |
Marketing Type: | New Product 2021; | Machinery Test Report: | Provided; |
Website: | www.ltmg.cn; | After-sales Service Provided: | Overseas third-party support available; |
Weight (KG): | 560 kg; | Min.turning radius: | 1110mm; |
Dimension(L*W*H): | 1970*880*2050mm; | Operator type: | Manual Driving,Electrical Lifting; |
Load center: | 400mm; | Type: | Manual Pallet Truck; |
Single package size: | 190X88X200 cm; | Place of Origin: | Fujian, China; |
Showroom Location: | Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Pakistan,India,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,Japan,Malaysia,Australia; | Operating weight: | 245kg; |
Warranty of core components: | 1 Year; | Video outgoing-inspection: | Provided; |

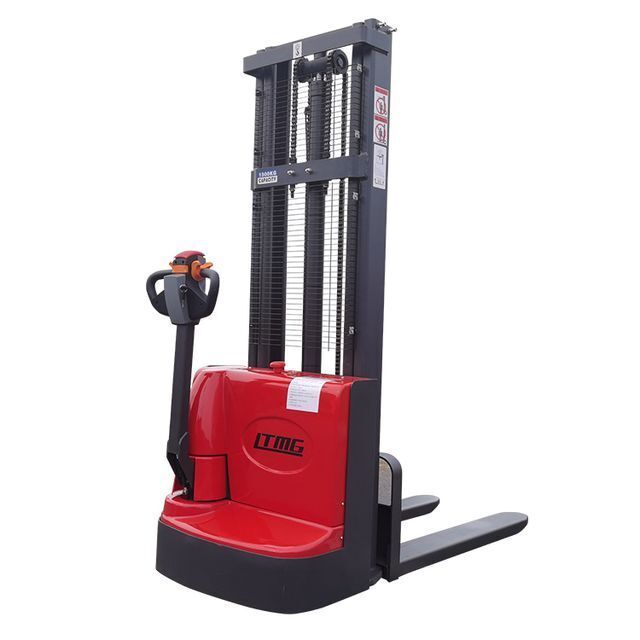

Model | ERB15 | |
Type | Narrow legs | |
Mast type | 2-Stage STD | |
Load capacity | kg | 1500 |
Load center | mm | 600 |
Wheel base | mm | 1325 |
Operating type | Walkle/Stand on | |
Wheels | ||
Wheel type | PU | |
Wheel quantity driving wheel/Balance wheel/Bearing wheel | 1/2/4 | |
Demension | ||
Standard lift height | mm | 3000 |
Lowered fork height | mm | 86 |
Fork size(length/width/thickness) | mm | 1150(1200)/180/60 |
Overall length | mm | 1970/2390 |
Overall width | mm | 1050 |
Outside with between legs | mm | 570/600/650/685 |
Inside with between legs | mm | 180/230/280/315 |
Min.turning radius | mm | 1630/1990 |
Min.aisle width for pallets 800×1200 | mm | 2180/2580 |
Min.aisle width for pallets 1000×1200 | mm | 2210/2600 |
Min.groud clearance | mm | 30 |
Performance | ||
Travel speed,laden/unladen | km/h | 5/5.5 |
Lift speed,laden/unladen | mm/s | 80/120 |
Travel speed,laden/unladen | mm/s | 80/90 |
Gradeability,laden/unladen | % | 5/8 |
Electric configuration | ||
Drive motor /Lift motor/Steering motor | kw | AC1.5/DC3.0/DC0.15 |
Battery voltage | V | 24 |
Battery capacity | Ah | 280 |
Brake | Electromagnetic/Regenerative | |
Controller | CURTIS | |
Weight | ||
Battery weight | kg | 235 |
Service weight with battery | kg | 1280 |
