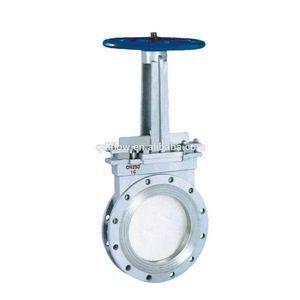

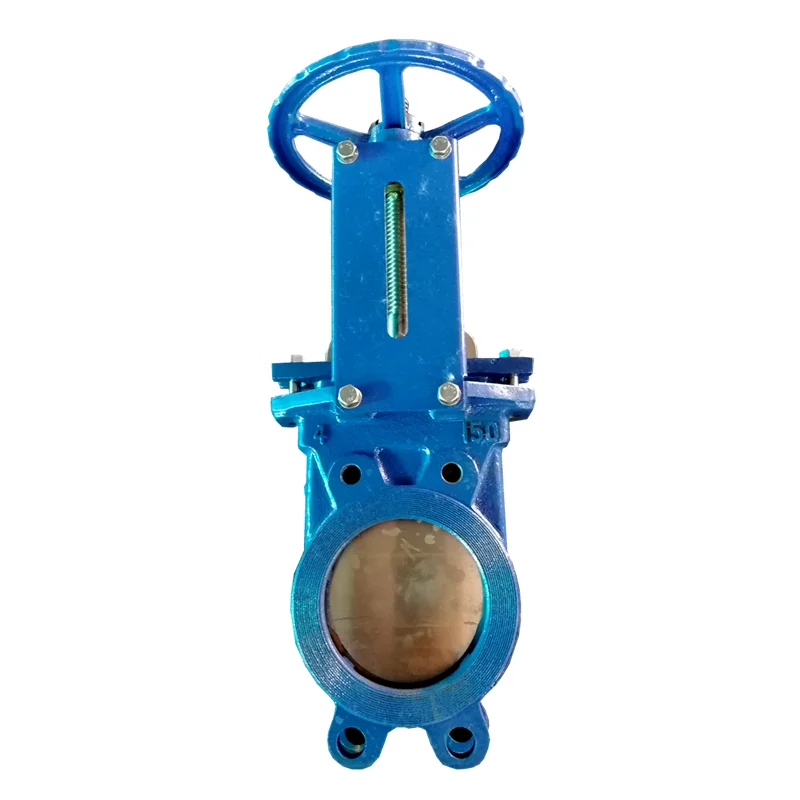

PN16 Cast Steel Metal Seat Manual Knife Type Gate Valve

Supplier: Qingdao I-Flow Co., Ltd.
Region: Shandong, China
Contact: Mr Zack Zhang
Price: $35.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Port Size:	DN50-DN1200;	Wedge:	Carbon steel;
Packaging Detail:	sea worthy ply wood case;	Media:	Water;
Power:	Manual;	Seat:	ss304/ss316;
Standard or Nonstandard:	Standard;	Brand Name:	QIF;
Supply Ability:	8000 Piece/Pieces per Month;	Product name:	PN16 Cast Steel Metal Seat Manual Knife Type Gate Valve;
Structure:	Gate;	Application:	General;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Temperature of Media:	Medium Temperature;
Port:	Tianjin/Qingdao;	Body:	Carbon steel;
Type:	Gate Valves;	Place of Origin:	Shandong China;

PN16 Cast Steel Metal Seat Manual Knife Type Gate Valve

Product Description

Technical Specification:
1,good quality and competitive price
2,low torque operation
3,SS protection cover
4,EN1092-2 Flange
5,ISO 9001,CE approved

MPa	DN	L	D	D1	D2	H	N-M	D0	Weight(Kg)
1	50	43	160	125	100	285	4-M16	180	8
	65	46	180	145	120	298	4-M16	180	10
	80	46	195	160	135	315	4-M16	220	12
	100	52	215	180	155	365	8-M16	220	14
	125	56	245	210	185	400	8-M16	230	22
	150	56	280	240	210	475	8-M20	280	29
	200	60	335	295	265	540	8-M20	360	38
	250	68	390	350	320	630	12-M20	360	66
	300	78	440	400	368	780	12-M20	400	100
	350	78	500	460	428	885	16-M20	400	119
	400	102	565	515	482	990	16-M22	400	195
	450	114	615	565	532	1100	20-M22	530	285
	500	127	670	620	585	1200	20-M22	530	389
	600	154	780	725	685	1450	20-M27	600	529
	700	165	895	840	800	1700	24-M27	600	790
	800	190	1010	950	898	2000	24-M30	680	850
	900	203	1110	1050	1005	2300	28-M30	680	900
	1000	216	1220	1160	1115	2500	28-M30	700	1050
	1200	254	1450	1380	1325	2800	32-M36	800	1300
1.6	50	43	160	125	99	285	4-M16	180	8.5
	65	46	185	145	120	295	4-M16	180	10.7
	80	46	200	160	135	315	8-M16	220	13
	100	52	220	180	155	365	8-M16	220	15
	125	56	250	210	185	400	8-M16	230	23.5
	150	56	285	240	210	475	8-M20	280	31
	200	60	340	295	265	540	12-M20	360	40.7
	250	68	405	355	310	630	12-M22	360	70
	300	78	460	410	375	780	12-M22	400	107
	350	78	520	470	435	885	16-M22	400	129
	400	102	580	525	485	990	16-M27	400	215
	450	114	640	585	545	1100	20-M27	530	305
	500	127	715	650	609	1200	20-M30	530	410
	600	154	840	770	720	1450	20-M36	600	550
	700	165	910	840	788	1700	24-M36	600	820
	800	190	1025	950	898	2000	24-M36	680	950
	900	203	1125	1050	998	2300	28-M36	680	1020
	1000	216	1255	1170	1110	2500	28-M42	700	1120
	1200	254	1485	1390	1325	2800	32-M48	800	1480

2.Application of product

Our goods are widely used on fire fighting, water, marine and oil&gas.

Company Profile

I-Flow has been specializing in flow control area for more than 15 years.

As a professional supply chain manager of flow control products, I-Flow offer gate,globe,check,butterfly,ball, JIS and DIN marine valves,strainers,actuators, flanges, pipes and fittings,with pressure range from 0.5-6.4MPA, size from DN15-DN3000, as well as valve design, inspection, consultation services etc.

With profound understanding of the importance of customer requirement and 15 years experience,we offer highly cost-effective products,enjoying a good reputation. And we have various kinds of certificates, such as ISO9001, API, ABS,PED, UL,FM, WRAS, DVGW, DNV, LR, BV etc, selling to more than 30 countries. Being a reliable partner, we are looking forward to cooperating with you.
