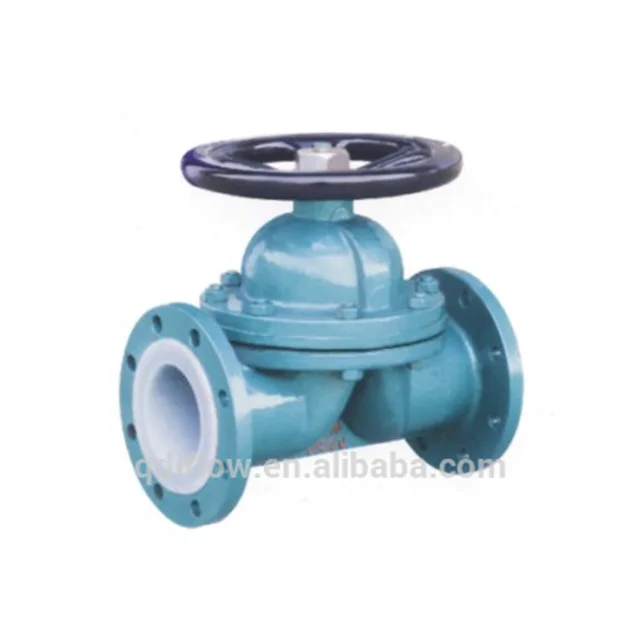

Flanged Fluorine Lined Diaphragm Valve ANSI 150LB
-
Supplier: Qingdao I-Flow Co., Ltd. -
Region: Shandong, China -
Contact: Mr Zack Zhang -
Price: $80.00 / >=2 sets -
Min. Order: 2 sets
| Selling Units: | Single item; | Single gross weight: | 14 KG; |
| Application: | General; | Brand Name: | QIF; |
| Package Type: | Seaworthy plywood case; | Port Size: | DN15-DN250; |
| Medium: | Water, Oil, Gas; | Place of Origin: | Zhejiang China; |
| Standard or Nonstandard: | Standard; | Structure: | Diaphragm; |
| Material: | WCB, CF8, CF8M, CF3, CF3M; | Temperature of Media: | Medium Temperature; |
| Product name: | Flanged Fluorine Lined Diaphragm Valve ANSI 150LB; | Single package size: | 30X30X30 cm; |
| Pressure: | Medium Pressure; | Driving mode: | Electric actuator, pneumatic actuator, hydraulic actuator, gearbox; |

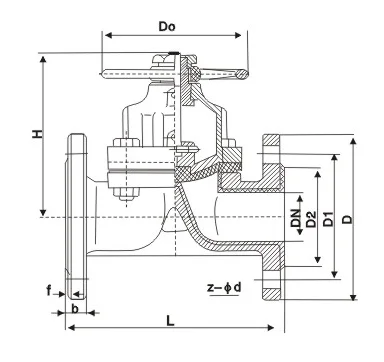

Flanged Fluorine Lined Diaphragm Valve ANSI 150LB
Specifications:
Design and Manufacture: GB/T12235
Face to Face: ASME B16.10
Flange Dimensions: ANSI B16.5a
Driving Mode: Electric actuator, pneumatic actuator, hydraulic actuator, gearbox
Norminal Pressure: 0.6Mpa, 1.0Mpa, 1.6Mpa, 150LB
Test: API 598
Body Materials: WCB, CF8, CF8M, CF3, CF3M
Line Material: FEP, PTFE, PFA, P0, PE
Diaphragm material: FEP, CR, PFA, FPDM
Company Profile
I-Flow has been specializing in flow control area for more than 15 years.
As a professional supply chain manager of flow control products, I-Flow offer gate,globe,check,butterfly,ball, JIS and DIN marine valves,strainers,actuators, flanges, pipes and fittings,with pressure range from 0.5-6.4MPA, size from DN15-DN3000, as well as valve design, inspection, consultation services etc.
With profound understanding of the importance of customer requirement and 15 years experience,we offer highly cost-effective products,enjoying a good reputation. And we have various kinds of certificates, such as ISO9001, API, ABS,PED, UL,FM, WRAS, DVGW, DNV, LR, BV etc, selling to more than 30 countries. Being a reliable partner, we are looking forward to cooperating with you.
WELCOME TO CONTACT US
Tel: +86- 532- 55785171 / 55785172 / 55786571 / 55786572
Fax: +86-532- 55785173
E-mail: info@ qdiflow.com
Address: Room1006,Xiwang Tower,No.138 Dunhua Road,Qingdao,China
Website:http://www.qdiflow.com
-
