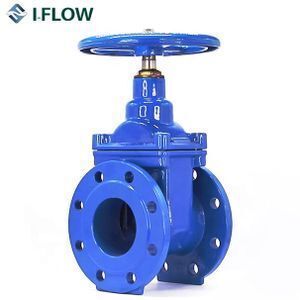

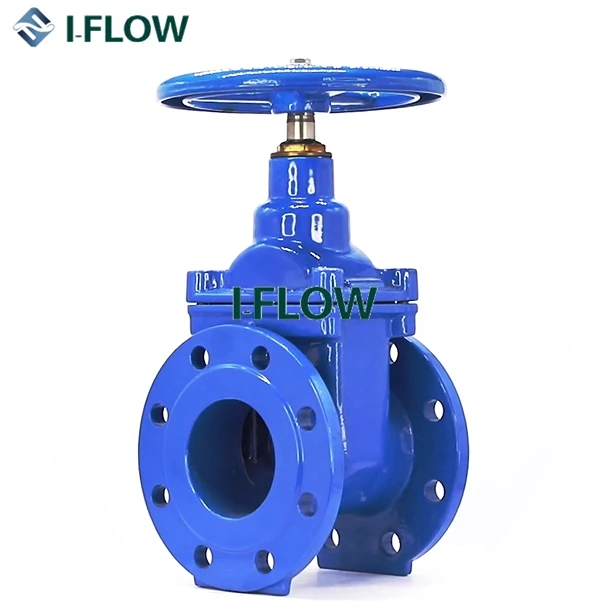

Manufacturers Ductile Iron Resilient Flanged Gate Valve

Supplier: Qingdao I-Flow Co., Ltd.
Region: Shandong, China
Contact: Mr Zack Zhang
Price: $24.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	Qingdao;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Standard or Nonstandard:	Standard;	Customized support:	OEM,ODM,OBM;
Port Size:	2"-16";	Supply Ability:	5000 Set/Sets per Month;
Certification:	CE/WRAS;	Structure:	Gate;
Type:	Closed,Gate Valves;	Product name:	Manufacturers Ductile Iron Resilient Flanged Gate Valve;
Temperature of Media:	Medium Temperature;	Medium:	Water, Oil, Gas;
Brand Name:	QIF;	Place of Origin:	Shandong China;
Media:	Water;	Power:	Manual;
Packaging Detail:	Seaworthy plywood case;	Application:	General;

Awwa FM/UL Ductile Iron/Cast Iron Non Rising Stem Resilient Seated Industrial Gate Valve

Product Description

Features

Light Weight;
No - grooved body cavity;
Wedged rubber - packed wholly Close tolerance cast valve body;
Three O-ring
Beneficial to drinking

APPLICABLE STANDARDS
American Standard
Design to ANSI/AWWA C509
Face to face dimension to ASME B16.10-2000(ISO 3 series)
Flange and drilling To SME/ANSI B16.42-1998
British Standard
Design to BS5163, BS5150
Face to face dimension to BS5163(ISO 3series, ISO19 series)
Flange and drilling To BS4504 part1(EN1092)
Germany Standard
Design to DIN3352
Face to face dimension to DIN3202(F4: ISO 14 series; F5: ISO 15 series)
Flange and drilling to BS EN1092
TECHNIC CRITERION
